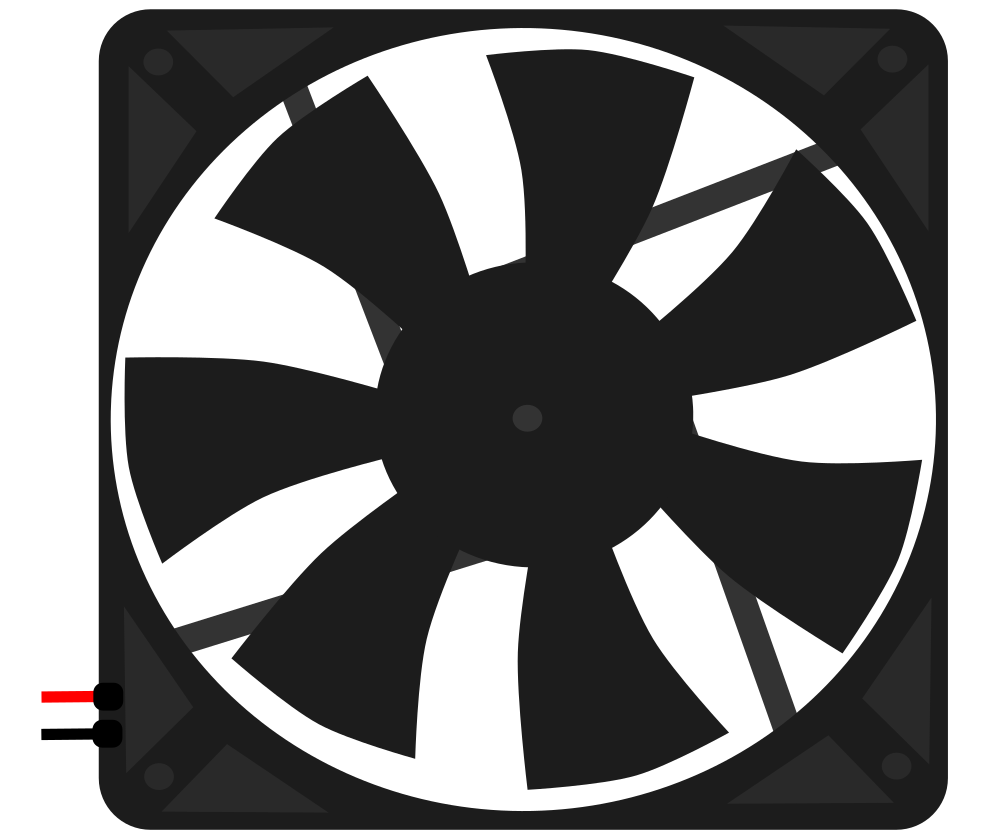

Image of Fan
Cirkit Designer LogoDesign with Fan in Cirkit Designer

Introduction

A fan is an electromechanical device that creates airflow to cool or ventilate an area. It is commonly used in electronic enclosures, such as computer cases, power supplies, and other devices, to dissipate heat and maintain optimal operating temperatures. Fans are essential for preventing overheating, ensuring the longevity of components, and maintaining system performance.

Explore Projects Built with Fan

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered IR Sensor Controlled Fan with LED Indicator
Image of pollution control on roads: A project utilizing Fan in a practical application
This circuit is a fan control system that uses an IR sensor to detect motion and activate a relay, which in turn powers a fan. The circuit includes a voltage regulator to step down the voltage from a 9V battery to 5V, and an NPN transistor to control the relay coil, with an LED indicator to show the status of the fan.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Fan with Rocker Switch Control
Image of Motion Detector: A project utilizing Fan in a practical application
This circuit consists of a 9V battery powering a fan through a rocker switch. The switch controls the connection between the battery and the fan, allowing the user to turn the fan on and off.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi Pico-Based Smart Fan Controller with Touchscreen Interface
Image of Lueftersteuerung V1: A project utilizing Fan in a practical application
This circuit is an automated fan control system using a Raspberry Pi Pico, which reads temperature and humidity data from an AHT20 sensor and displays information on a Nextion Touch LCD. The system uses a Seeed Mosfet to control a fan based on the sensor data, with a logic level converter to interface between the 3.3V and 5V components, and a DCDC converter to step down voltage from 12V to 5V.
Cirkit Designer LogoOpen Project in Cirkit Designer
IR Sensor-Activated Dual 12V Fans with Relay Control
Image of ajay: A project utilizing Fan in a practical application
This circuit is a motion-activated fan control system. An IR sensor detects motion and activates a 12V relay, which then powers on 12V fans. The system uses a 9V battery for the sensor and relay, and a separate 12V battery for the fans.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Fan

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of pollution control on roads: A project utilizing Fan in a practical application
Battery-Powered IR Sensor Controlled Fan with LED Indicator
This circuit is a fan control system that uses an IR sensor to detect motion and activate a relay, which in turn powers a fan. The circuit includes a voltage regulator to step down the voltage from a 9V battery to 5V, and an NPN transistor to control the relay coil, with an LED indicator to show the status of the fan.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Motion Detector: A project utilizing Fan in a practical application
Battery-Powered Fan with Rocker Switch Control
This circuit consists of a 9V battery powering a fan through a rocker switch. The switch controls the connection between the battery and the fan, allowing the user to turn the fan on and off.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Lueftersteuerung V1: A project utilizing Fan in a practical application
Raspberry Pi Pico-Based Smart Fan Controller with Touchscreen Interface
This circuit is an automated fan control system using a Raspberry Pi Pico, which reads temperature and humidity data from an AHT20 sensor and displays information on a Nextion Touch LCD. The system uses a Seeed Mosfet to control a fan based on the sensor data, with a logic level converter to interface between the 3.3V and 5V components, and a DCDC converter to step down voltage from 12V to 5V.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ajay: A project utilizing Fan in a practical application
IR Sensor-Activated Dual 12V Fans with Relay Control
This circuit is a motion-activated fan control system. An IR sensor detects motion and activates a 12V relay, which then powers on 12V fans. The system uses a 9V battery for the sensor and relay, and a separate 12V battery for the fans.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Cooling electronic components in computers, power supplies, and servers.
  • Ventilating enclosures for industrial equipment.
  • Enhancing airflow in HVAC systems.
  • Used in robotics and DIY projects for temperature regulation.
  • Cooling 3D printers, LED lights, and other heat-sensitive devices.

Technical Specifications

Below are the general technical specifications for a standard DC brushless fan. Specifications may vary depending on the specific model.

Key Technical Details

  • Operating Voltage: 5V, 12V, or 24V DC (common variants)
  • Current Rating: 0.1A to 0.5A (depending on size and power)
  • Power Consumption: Typically 0.5W to 5W
  • Fan Speed: 1000 to 5000 RPM (Revolutions Per Minute)
  • Airflow: 10 to 100 CFM (Cubic Feet per Minute)
  • Connector Type: 2-pin, 3-pin, or 4-pin
  • Dimensions: Common sizes include 40mm, 60mm, 80mm, 120mm, and 140mm
  • Bearing Type: Sleeve bearing or ball bearing
  • Noise Level: 20 to 40 dBA (depending on speed and size)

Pin Configuration and Descriptions

The pin configuration for a 3-pin and 4-pin fan is detailed below:

3-Pin Fan

Pin Number Name Description
1 GND Ground connection
2 VCC Power supply (e.g., 12V DC)
3 Tachometer Outputs a signal for fan speed monitoring

4-Pin Fan

Pin Number Name Description
1 GND Ground connection
2 VCC Power supply (e.g., 12V DC)
3 Tachometer Outputs a signal for fan speed monitoring
4 PWM Pulse Width Modulation input for speed control

Usage Instructions

How to Use the Fan in a Circuit

  1. Power Connection:

    • Connect the fan's VCC pin to the appropriate power supply (e.g., 12V DC).
    • Connect the GND pin to the ground of the circuit.
  2. Speed Monitoring (Optional):

    • For 3-pin and 4-pin fans, connect the Tachometer pin to a microcontroller or monitoring circuit to measure the fan's speed.
  3. Speed Control (4-Pin Fans Only):

    • Use a PWM signal (typically 25kHz) on the PWM pin to control the fan's speed. A duty cycle of 0% stops the fan, while 100% runs it at full speed.
  4. Mounting:

    • Secure the fan to the enclosure or heatsink using screws or clips. Ensure proper airflow direction by checking the fan's markings.

Important Considerations and Best Practices

  • Voltage Compatibility: Ensure the fan's operating voltage matches the power supply.
  • Airflow Direction: Fans typically have arrows indicating airflow direction. Install accordingly.
  • Noise Levels: Choose a fan with an appropriate noise level for your application.
  • Dust and Maintenance: Periodically clean the fan to prevent dust buildup, which can reduce efficiency.
  • PWM Signal: For 4-pin fans, ensure the PWM signal is within the specified frequency range (usually 20-30kHz).

Example: Connecting a Fan to an Arduino UNO

Below is an example of controlling a 4-pin fan using an Arduino UNO and PWM.

// Example: Controlling a 4-pin fan with Arduino UNO
// Connect the fan's PWM pin to Arduino pin 9
// Connect VCC and GND to a 12V power supply and ground, respectively

const int fanPWM = 9; // PWM pin connected to the fan's PWM input

void setup() {
  pinMode(fanPWM, OUTPUT); // Set the PWM pin as an output
}

void loop() {
  analogWrite(fanPWM, 128); // Set fan speed to 50% (128 out of 255)
  delay(5000);              // Run at 50% speed for 5 seconds

  analogWrite(fanPWM, 255); // Set fan speed to 100% (255 out of 255)
  delay(5000);              // Run at full speed for 5 seconds

  analogWrite(fanPWM, 0);   // Turn off the fan
  delay(5000);              // Wait for 5 seconds before repeating
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Fan Does Not Spin:

    • Cause: Incorrect power supply voltage or loose connections.
    • Solution: Verify the power supply voltage matches the fan's rating and check all connections.
  2. Fan Spins Slowly or Stops Intermittently:

    • Cause: Insufficient power or excessive dust buildup.
    • Solution: Ensure the power supply can provide sufficient current. Clean the fan blades and vents.
  3. Excessive Noise:

    • Cause: Worn-out bearings or improper mounting.
    • Solution: Replace the fan if bearings are worn. Ensure the fan is securely mounted.
  4. PWM Control Not Working:

    • Cause: Incorrect PWM frequency or wiring.
    • Solution: Verify the PWM signal frequency is within the fan's specifications (typically 20-30kHz).

FAQs

Q: Can I use a 3-pin fan with PWM control?
A: No, 3-pin fans do not have a dedicated PWM pin. However, you can control their speed by varying the supply voltage using a transistor or MOSFET.

Q: How do I determine the airflow direction of a fan?
A: Most fans have arrows on the housing indicating the airflow direction and blade rotation.

Q: Can I power a 12V fan with a 5V supply?
A: No, a 12V fan will not operate correctly at 5V. Always use the specified voltage for optimal performance.

Q: How do I reduce fan noise?
A: Use a fan with a lower RPM or implement PWM control to reduce speed. Additionally, ensure the fan is clean and properly mounted.
