How to Use relay MY2N: Examples, Pinouts, and Specs

Image of relay MY2N
Cirkit Designer LogoDesign with relay MY2N in Cirkit Designer

Introduction

The MY2N is a compact electromagnetic relay manufactured by SMKN 1 CERME. It features two normally open (NO) contacts and is designed for reliable switching in various electronic circuits. This relay operates using a low voltage DC coil, making it suitable for a wide range of automation and control applications. Its compact design and robust performance make it a popular choice for industrial, commercial, and hobbyist projects.

Explore Projects Built with relay MY2N

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
NPN Transistor-Based Signal Interface with Relimate Connectors
Image of Mini cross: A project utilizing relay MY2N in a practical application
This circuit appears to be a simple transistor-based switching circuit with multiple NPN transistors and resistors, interfaced through relimate connectors. The transistors are likely used to control the flow of current through various parts of the circuit, possibly for switching or amplification purposes, with the relimate connectors providing external connections for power and signal lines.
Cirkit Designer LogoOpen Project in Cirkit Designer
RF-Controlled Relay Switch with Indicator LEDs and Buzzer
Image of receiver: A project utilizing relay MY2N in a practical application
This circuit features an RF receiver that controls a 12V relay, which in turn switches between two circuits: one with a green LED and another with a red LED and a buzzer, both protected by resistors. A rocker switch is used to supply power from a 9V battery to the RF receiver and the relay's coil. The relay's normally closed (NC) contact is connected to the green LED, while the normally open (NO) contact is connected to the red LED and the buzzer, indicating that the relay's state determines which of the two circuits is active.
Cirkit Designer LogoOpen Project in Cirkit Designer
DC-DC Converter and Relay Module Power Distribution System
Image of relay: A project utilizing relay MY2N in a practical application
This circuit consists of a DC-DC converter powering a 6-channel power module, which in turn supplies 5V to a 2-relay module. The power module distributes the converted voltage to the relay module, enabling it to control external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Dual TB6600 Stepper Motor Driver with Nema 17 Motors and ESP32 Control
Image of tsis: A project utilizing relay MY2N in a practical application
This circuit controls two Nema 17 stepper motors using two TB6600 stepper motor drivers, powered by a 12V power supply. The motors are controlled through relays and rocker switches, with power regulation provided by a step-down voltage regulator. The setup is designed for precise motor control applications, likely in a CNC or robotic system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with relay MY2N

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Mini cross: A project utilizing relay MY2N in a practical application
NPN Transistor-Based Signal Interface with Relimate Connectors
This circuit appears to be a simple transistor-based switching circuit with multiple NPN transistors and resistors, interfaced through relimate connectors. The transistors are likely used to control the flow of current through various parts of the circuit, possibly for switching or amplification purposes, with the relimate connectors providing external connections for power and signal lines.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of receiver: A project utilizing relay MY2N in a practical application
RF-Controlled Relay Switch with Indicator LEDs and Buzzer
This circuit features an RF receiver that controls a 12V relay, which in turn switches between two circuits: one with a green LED and another with a red LED and a buzzer, both protected by resistors. A rocker switch is used to supply power from a 9V battery to the RF receiver and the relay's coil. The relay's normally closed (NC) contact is connected to the green LED, while the normally open (NO) contact is connected to the red LED and the buzzer, indicating that the relay's state determines which of the two circuits is active.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of relay: A project utilizing relay MY2N in a practical application
DC-DC Converter and Relay Module Power Distribution System
This circuit consists of a DC-DC converter powering a 6-channel power module, which in turn supplies 5V to a 2-relay module. The power module distributes the converted voltage to the relay module, enabling it to control external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of tsis: A project utilizing relay MY2N in a practical application
Dual TB6600 Stepper Motor Driver with Nema 17 Motors and ESP32 Control
This circuit controls two Nema 17 stepper motors using two TB6600 stepper motor drivers, powered by a 12V power supply. The motors are controlled through relays and rocker switches, with power regulation provided by a step-down voltage regulator. The setup is designed for precise motor control applications, likely in a CNC or robotic system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Industrial automation systems
  • Home automation and smart devices
  • Motor control circuits
  • Signal switching in low-power circuits
  • Safety and alarm systems

Technical Specifications

Below are the key technical details of the MY2N relay:

Parameter Value
Manufacturer SMKN 1 CERME
Manufacturer Part ID SMKN 1 CERME
Contact Configuration 2 Normally Open (NO)
Coil Voltage 12V DC
Contact Rating 5A at 250V AC / 30V DC
Coil Resistance 160 Ω
Operate Time 15 ms (max)
Release Time 10 ms (max)
Insulation Resistance 100 MΩ (at 500V DC)
Dielectric Strength 2000V AC (coil to contacts)
Operating Temperature -40°C to +70°C
Dimensions 28 mm x 21.5 mm x 36 mm
Weight 35 g

Pin Configuration

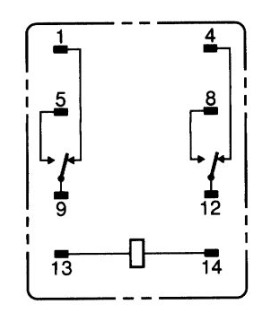

The MY2N relay has a total of 8 pins. The pin configuration is as follows:

Pin Number Description
1 Coil Terminal (+)
2 Coil Terminal (-)
3 Common Contact (COM1)
4 Normally Open (NO1)
5 Common Contact (COM2)
6 Normally Open (NO2)
7 Not Connected (NC)
8 Not Connected (NC)

Usage Instructions

How to Use the MY2N Relay in a Circuit

  1. Power the Coil: Connect the coil terminals (pins 1 and 2) to a 12V DC power source. Ensure the polarity is correct.
  2. Connect the Load: Attach the load to the normally open (NO) and common (COM) terminals. For example:
    • Connect one side of the load to the NO terminal (pin 4 or 6).
    • Connect the other side of the load to the COM terminal (pin 3 or 5).
  3. Control the Relay: Apply a 12V DC signal to the coil terminals to activate the relay. When the coil is energized, the NO contacts will close, completing the circuit and powering the load.
  4. Protect the Circuit: Use a flyback diode across the coil terminals to prevent voltage spikes when the relay is de-energized.

Important Considerations

  • Power Supply: Ensure the power supply matches the relay's coil voltage (12V DC).
  • Contact Ratings: Do not exceed the contact rating of 5A at 250V AC or 30V DC.
  • Isolation: The relay provides electrical isolation between the control circuit and the load circuit, which is useful for safety.
  • Mounting: Secure the relay in a socket or PCB to prevent movement or damage.

Example: Using MY2N with Arduino UNO

The MY2N relay can be easily controlled using an Arduino UNO. Below is an example circuit and code:

Circuit Connections

  • Connect pin 1 of the relay to the Arduino's digital pin 7 (via a transistor and resistor for current amplification).
  • Connect pin 2 of the relay to the Arduino's GND.
  • Connect the load to the NO and COM terminals of the relay.

Arduino Code

// Define the relay control pin
const int relayPin = 7;

void setup() {
  // Set the relay pin as an output
  pinMode(relayPin, OUTPUT);
}

void loop() {
  // Turn the relay ON
  digitalWrite(relayPin, HIGH);
  delay(1000); // Keep the relay ON for 1 second

  // Turn the relay OFF
  digitalWrite(relayPin, LOW);
  delay(1000); // Keep the relay OFF for 1 second
}

Notes:

  • Use a transistor (e.g., 2N2222) and a base resistor (e.g., 1kΩ) to drive the relay from the Arduino, as the Arduino's GPIO pins cannot supply enough current directly.
  • Add a flyback diode (e.g., 1N4007) across the relay coil to protect the transistor and Arduino from voltage spikes.

Troubleshooting and FAQs

Common Issues

  1. Relay Not Activating

    • Cause: Insufficient voltage or current to the coil.
    • Solution: Verify the power supply voltage is 12V DC and check the connections.
  2. Load Not Switching

    • Cause: Incorrect wiring of the load to the NO and COM terminals.
    • Solution: Double-check the load connections and ensure the relay is energized.
  3. Voltage Spikes Damaging Components

    • Cause: Lack of a flyback diode across the coil terminals.
    • Solution: Install a flyback diode (e.g., 1N4007) across the coil terminals.
  4. Overheating

    • Cause: Exceeding the contact current rating.
    • Solution: Ensure the load current does not exceed 5A.

FAQs

  1. Can the MY2N relay switch AC loads? Yes, the MY2N relay can switch AC loads up to 250V with a maximum current of 5A.

  2. What is the purpose of the flyback diode? The flyback diode protects the circuit from voltage spikes generated when the relay coil is de-energized.

  3. Can I use the MY2N relay with a 5V power supply? No, the MY2N relay requires a 12V DC power supply for the coil. Using a lower voltage will prevent the relay from activating.

  4. Is the MY2N relay suitable for high-frequency switching? No, the MY2N relay is not designed for high-frequency switching. It is best suited for low-frequency applications.

By following this documentation, you can effectively integrate the MY2N relay into your projects and troubleshoot common issues.
