How to Use DHT11: Examples, Pinouts, and Specs

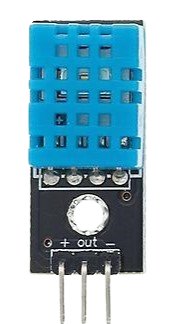

Image of DHT11
Cirkit Designer LogoDesign with DHT11 in Cirkit Designer

Introduction

The DHT11 is a digital temperature and humidity sensor that provides accurate readings of temperature in Celsius and humidity in percentage. It is a low-cost, easy-to-use sensor that communicates via a single-wire digital interface. The DHT11 is widely used in applications such as weather stations, HVAC systems, and home automation projects due to its reliability and simplicity.

Explore Projects Built with DHT11

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP8266 NodeMCU with DHT11 Sensor for Temperature and Humidity Monitoring
Image of temperature and humidity sensore : A project utilizing DHT11 in a practical application
This circuit connects a DHT11 Humidity and Temperature Sensor to an ESP8266 NodeMCU microcontroller. The DHT11 sensor's data pin is interfaced with the D5 pin on the NodeMCU for digital signal communication, while both the sensor and the NodeMCU share a common ground (GND). The sensor is powered by the NodeMCU's VIN pin, which likely supplies the required voltage for the DHT11 to operate.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and DHT11 Wi-Fi Enabled Temperature and Humidity Sensor
Image of Practical-9: A project utilizing DHT11 in a practical application
This circuit uses an ESP32 microcontroller to read temperature and humidity data from a DHT11 sensor. The ESP32 provides power to the DHT11 and receives the sensor data through its GPIO pin G33.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Temperature and Humidity Monitor with DHT11 Sensor
Image of DHT11: A project utilizing DHT11 in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a DHT11 temperature and humidity sensor. The DHT11 sensor is powered by the 3.3V and GND pins of the Arduino, and its data output is connected to the A0 analog input pin of the Arduino. The Arduino is programmed to read data from the DHT11 sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 3B with DHT11 Temperature and Humidity Sensor
Image of temp-humidity: A project utilizing DHT11 in a practical application
This circuit connects a DHT11 temperature and humidity sensor to a Raspberry Pi 3B. The DHT11's data output pin is connected to GPIO pin 11 on the Raspberry Pi for digital signal communication. The sensor is powered by the Raspberry Pi's 5V and ground pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DHT11

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of temperature and humidity sensore : A project utilizing DHT11 in a practical application
ESP8266 NodeMCU with DHT11 Sensor for Temperature and Humidity Monitoring
This circuit connects a DHT11 Humidity and Temperature Sensor to an ESP8266 NodeMCU microcontroller. The DHT11 sensor's data pin is interfaced with the D5 pin on the NodeMCU for digital signal communication, while both the sensor and the NodeMCU share a common ground (GND). The sensor is powered by the NodeMCU's VIN pin, which likely supplies the required voltage for the DHT11 to operate.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Practical-9: A project utilizing DHT11 in a practical application
ESP32 and DHT11 Wi-Fi Enabled Temperature and Humidity Sensor
This circuit uses an ESP32 microcontroller to read temperature and humidity data from a DHT11 sensor. The ESP32 provides power to the DHT11 and receives the sensor data through its GPIO pin G33.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of DHT11: A project utilizing DHT11 in a practical application
Arduino UNO-Based Temperature and Humidity Monitor with DHT11 Sensor
This circuit consists of an Arduino UNO microcontroller connected to a DHT11 temperature and humidity sensor. The DHT11 sensor is powered by the 3.3V and GND pins of the Arduino, and its data output is connected to the A0 analog input pin of the Arduino. The Arduino is programmed to read data from the DHT11 sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of temp-humidity: A project utilizing DHT11 in a practical application
Raspberry Pi 3B with DHT11 Temperature and Humidity Sensor
This circuit connects a DHT11 temperature and humidity sensor to a Raspberry Pi 3B. The DHT11's data output pin is connected to GPIO pin 11 on the Raspberry Pi for digital signal communication. The sensor is powered by the Raspberry Pi's 5V and ground pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • Weather monitoring systems
  • HVAC (Heating, Ventilation, and Air Conditioning) control
  • Home automation and IoT projects
  • Greenhouse monitoring
  • Data logging systems

Technical Specifications

The DHT11 sensor is designed for basic temperature and humidity sensing applications. Below are its key technical details:

Key Specifications:

Parameter Value
Operating Voltage 3.3V to 5.5V
Operating Current 0.3mA (measuring), 60µA (standby)
Temperature Range 0°C to 50°C
Temperature Accuracy ±2°C
Humidity Range 20% to 90% RH
Humidity Accuracy ±5% RH
Sampling Period 1 second
Communication Protocol Single-wire digital interface

Pin Configuration:

The DHT11 sensor typically comes with four pins. Below is the pinout description:

Pin Number Name Description
1 VCC Power supply (3.3V to 5.5V)
2 DATA Digital data output (connect to microcontroller)
3 NC (Not Connected) No connection (leave unconnected)
4 GND Ground (0V reference)

Note: Some DHT11 modules may have only three pins (VCC, DATA, GND) with an onboard pull-up resistor. Always check the specific module's datasheet.

Usage Instructions

The DHT11 sensor is straightforward to use in a circuit. Below are the steps and best practices for integrating it into your project:

Circuit Connection:

  1. Connect the VCC pin of the DHT11 to the 5V pin of your microcontroller (e.g., Arduino UNO).
  2. Connect the GND pin of the DHT11 to the GND pin of your microcontroller.
  3. Connect the DATA pin of the DHT11 to a digital input pin on your microcontroller (e.g., pin 2 on Arduino UNO).
  4. Place a 10kΩ pull-up resistor between the DATA pin and the VCC pin to ensure stable communication.

Arduino UNO Example Code:

Below is an example code to read temperature and humidity data from the DHT11 using an Arduino UNO. This code uses the popular DHT library.

// Include the DHT library
#include <DHT.h>

// Define the DHT11 pin and type
#define DHTPIN 2      // Pin connected to the DATA pin of DHT11
#define DHTTYPE DHT11 // Specify the sensor type (DHT11)

// Initialize the DHT sensor
DHT dht(DHTPIN, DHTTYPE);

void setup() {
  Serial.begin(9600); // Start serial communication
  Serial.println("DHT11 Sensor Initialization");
  dht.begin();        // Initialize the DHT sensor
}

void loop() {
  delay(2000); // Wait 2 seconds between readings

  // Read temperature and humidity
  float humidity = dht.readHumidity();
  float temperature = dht.readTemperature();

  // Check if the readings are valid
  if (isnan(humidity) || isnan(temperature)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Print the results to the Serial Monitor
  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.print(" %\t");
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" °C");
}

Best Practices:

  • Ensure the sensor is not exposed to water or condensation, as it is not waterproof.
  • Avoid placing the sensor near heat sources or in direct sunlight, as this may affect accuracy.
  • Use a pull-up resistor (typically 10kΩ) on the DATA line for stable communication.
  • Allow the sensor to stabilize for a few seconds after powering it on before taking readings.

Troubleshooting and FAQs

Common Issues:

  1. No Data or Incorrect Readings:

    • Cause: Missing or incorrect pull-up resistor on the DATA line.
    • Solution: Add a 10kΩ pull-up resistor between the DATA and VCC pins.
  2. "Failed to read from DHT sensor!" Error:

    • Cause: Loose connections or incorrect wiring.
    • Solution: Double-check all connections and ensure the DATA pin is connected to the correct digital pin on the microcontroller.
  3. Inconsistent Readings:

    • Cause: Sensor placed in an unstable environment (e.g., near a fan or heat source).
    • Solution: Place the sensor in a stable environment away from direct airflow or heat.
  4. Sensor Not Responding:

    • Cause: Incorrect power supply voltage.
    • Solution: Ensure the sensor is powered with 3.3V to 5.5V.

FAQs:

Q1: Can the DHT11 measure negative temperatures?
A1: No, the DHT11 can only measure temperatures in the range of 0°C to 50°C.

Q2: How often can I take readings from the DHT11?
A2: The DHT11 has a sampling period of 1 second, so you should wait at least 1 second between readings.

Q3: Can I use the DHT11 with a 3.3V microcontroller?
A3: Yes, the DHT11 operates within a voltage range of 3.3V to 5.5V, making it compatible with 3.3V systems.

Q4: What is the difference between DHT11 and DHT22?
A4: The DHT22 offers a wider temperature range (-40°C to 80°C) and higher accuracy compared to the DHT11, but it is more expensive.

By following this documentation, you can effectively integrate the DHT11 sensor into your projects and troubleshoot common issues.
