How to Use BUTTONPAD-2X2SINGLE: Examples, Pinouts, and Specs

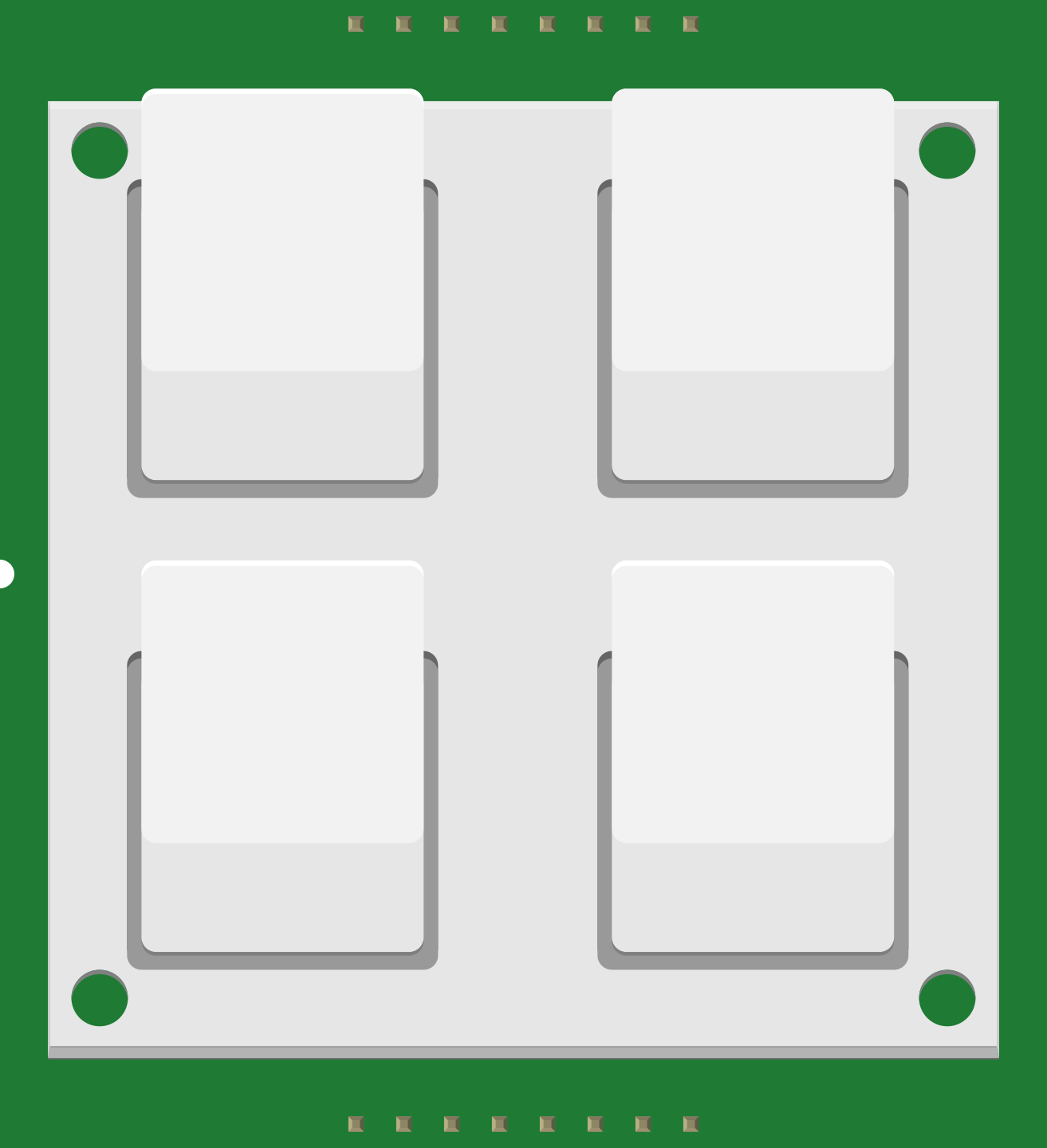

The BUTTONPAD-2X2SINGLE is a 2x2 matrix button pad consisting of four individual buttons, designed for user input in electronic devices. Each button in the matrix can be pressed to send a signal to a microcontroller or other circuitry, making it ideal for applications requiring simple and intuitive user interaction.

• Keypads for embedded systems
• User interfaces for DIY electronics projects
• Input devices for microcontroller-based systems (e.g., Arduino, Raspberry Pi)
• Control panels for robotics or automation systems
• Educational projects for learning about button matrices and input handling

The BUTTONPAD-2X2SINGLE is a passive component that requires external circuitry to detect button presses. Below are the key technical details:

The BUTTONPAD-2X2SINGLE has four rows and columns that form a matrix. The pins are typically labeled as R1, R2 (rows) and C1, C2 (columns). Below is the pin configuration:

When a button is pressed, it connects the corresponding row and column, allowing a microcontroller to detect the press by scanning the matrix.

1. Connect the Pins: Solder wires or use pin headers to connect the R1, R2, C1, and C2 pins to your microcontroller or input circuitry.
2. Pull-Up Resistors: Use internal or external pull-up resistors on the row or column pins to ensure stable signal detection.
3. Matrix Scanning: Implement a scanning algorithm in your microcontroller to detect which button is pressed. This involves setting one row or column pin HIGH at a time and checking the state of the other pins.

• Debouncing: Mechanical buttons can produce noise or "bouncing" when pressed. Use software debouncing techniques or external capacitors to filter out false signals.
• Voltage Compatibility: Ensure the operating voltage of the BUTTONPAD-2X2SINGLE matches your microcontroller's input voltage range.
• Avoid Short Circuits: Double-check your wiring to prevent accidental short circuits between rows and columns.

Below is an example of how to use the BUTTONPAD-2X2SINGLE with an Arduino UNO. This code scans the button matrix and prints the button state to the Serial Monitor.

// Define row and column pins
const int rowPins[2] = {2, 3}; // R1 -> Pin 2, R2 -> Pin 3
const int colPins[2] = {4, 5}; // C1 -> Pin 4, C2 -> Pin 5

void setup() {
  // Initialize row pins as outputs
  for (int i = 0; i < 2; i++) {
    pinMode(rowPins[i], OUTPUT);
    digitalWrite(rowPins[i], LOW); // Set rows LOW initially
  }

  // Initialize column pins as inputs with pull-up resistors
  for (int i = 0; i < 2; i++) {
    pinMode(colPins[i], INPUT_PULLUP);
  }

  Serial.begin(9600); // Start Serial communication
}

void loop() {
  for (int row = 0; row < 2; row++) {
    // Set the current row HIGH
    digitalWrite(rowPins[row], HIGH);

    for (int col = 0; col < 2; col++) {
      // Check if the button at (row, col) is pressed
      if (digitalRead(colPins[col]) == LOW) {
        Serial.print("Button pressed at Row ");
        Serial.print(row + 1);
        Serial.print(", Column ");
        Serial.println(col + 1);
      }
    }

    // Set the current row LOW again
    digitalWrite(rowPins[row], LOW);
  }

  delay(50); // Add a small delay for debouncing
}

• The INPUT_PULLUP mode is used for column pins to simplify the circuit by eliminating the need for external pull-up resistors.
• The delay(50) in the loop helps debounce the button presses.

1. No Button Press Detected

   • Cause: Incorrect wiring or loose connections.
   • Solution: Verify that all row and column pins are properly connected to the microcontroller.

2. Multiple Buttons Detected Simultaneously

   • Cause: Button bouncing or incorrect matrix scanning logic.
   • Solution: Implement software debouncing and review your scanning algorithm.

3. Button Presses Not Registered Consistently

   • Cause: Missing pull-up resistors or noisy signals.
   • Solution: Use internal or external pull-up resistors and ensure clean connections.

Q: Can I use the BUTTONPAD-2X2SINGLE with a 3.3V microcontroller?
A: Yes, the BUTTONPAD-2X2SINGLE is compatible with both 3.3V and 5V systems.

Q: How do I debounce the buttons in software?
A: You can use a small delay (e.g., 50ms) after detecting a button press or implement a state machine to filter out noise.

Q: Can I expand this to a larger matrix?
A: Yes, you can combine multiple BUTTONPAD-2X2SINGLE modules to create larger button matrices, but you will need additional GPIO pins or a multiplexer.

By following this documentation, you can effectively integrate the BUTTONPAD-2X2SINGLE into your projects and troubleshoot any issues that arise.
