How to Use ESP32-S3-DevKitC-1-N8R2: Examples, Pinouts, and Specs

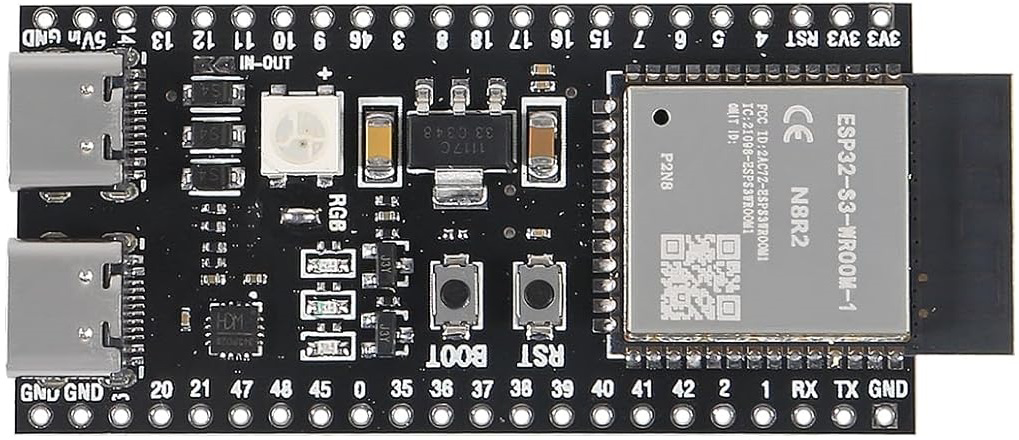

The ESP32-S3-DevKitC-1-N8R2, manufactured by XIITIA (Part ID: ‎B0D3C2KJVD), is a versatile development board built around the ESP32-S3 chip. This board features integrated Wi-Fi and Bluetooth connectivity, making it ideal for Internet of Things (IoT) applications, smart devices, and rapid prototyping. It supports a wide range of peripherals and offers ample processing power for complex tasks.

• IoT devices and smart home systems
• Wearable technology
• Wireless sensor networks
• Industrial automation
• Prototyping for AI and machine learning applications

The ESP32-S3-DevKitC-1-N8R2 features a 2-row pin header layout. Below is the pin configuration:

1. Powering the Board:

   • Connect the board to a computer or USB power source using a USB Type-C cable. Ensure the input voltage is 5 V.
   • The onboard voltage regulator will provide the required 3.3 V to the ESP32-S3 chip.

2. Programming the Board:

   • Install the Arduino IDE or ESP-IDF (Espressif IoT Development Framework) on your computer.
   • Add the ESP32-S3 board support package to your development environment.
   • Connect the board via USB and select the appropriate COM port.

3. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other peripherals. Ensure the voltage and current requirements of the peripherals are compatible with the ESP32-S3.

4. Uploading Code:

   • Write your code in the Arduino IDE or ESP-IDF.
   • Compile and upload the code to the board. The onboard LED will blink during programming.

• Voltage Levels: Ensure all connected peripherals operate at 3.3 V logic levels to avoid damaging the board.
• Boot Mode: To enter boot mode for flashing firmware, hold the BOOT button while pressing the EN (reset) button.
• Wi-Fi and Bluetooth: Avoid placing the board in metal enclosures, as this may interfere with wireless signals.
• Power Supply: If powering the board via GPIO pins, ensure a stable 3.3 V supply.

Below is an example code to blink an LED connected to GPIO2:

// Blink an LED connected to GPIO2 on the ESP32-S3-DevKitC-1-N8R2

#define LED_PIN 2  // Define the GPIO pin for the LED

void setup() {
  pinMode(LED_PIN, OUTPUT);  // Set GPIO2 as an output pin
}

void loop() {
  digitalWrite(LED_PIN, HIGH);  // Turn the LED on
  delay(1000);                  // Wait for 1 second
  digitalWrite(LED_PIN, LOW);   // Turn the LED off
  delay(1000);                  // Wait for 1 second
}

1. The board is not detected by the computer:

   • Ensure the USB cable is functional and supports data transfer (not just charging).
   • Check if the correct drivers for the ESP32-S3 are installed on your computer.

2. Code upload fails:

   • Verify that the correct COM port is selected in the Arduino IDE or ESP-IDF.
   • Hold the BOOT button while pressing the EN button to enter boot mode.

3. Wi-Fi connection issues:

   • Ensure the Wi-Fi credentials in your code are correct.
   • Check for interference or weak signal strength in your environment.

4. Peripherals not working as expected:

   • Double-check the wiring and ensure the peripherals are compatible with 3.3 V logic.
   • Verify that the correct GPIO pins are used in your code.

Q: Can I power the board using a battery?
A: Yes, you can use a 3.7 V LiPo battery connected to the appropriate pins, but ensure the voltage is regulated to 3.3 V.

Q: Does the board support OTA (Over-the-Air) updates?
A: Yes, the ESP32-S3 supports OTA updates, which can be implemented using the Arduino IDE or ESP-IDF.

Q: Can I use this board for AI applications?
A: Absolutely! The ESP32-S3 includes hardware acceleration for AI tasks, making it suitable for lightweight machine learning models.

Q: Is the board compatible with ESP-IDF?
A: Yes, the ESP32-S3-DevKitC-1-N8R2 is fully compatible with ESP-IDF, Espressif's official development framework.
