How to Use AC Circuit Breaker: Examples, Pinouts, and Specs

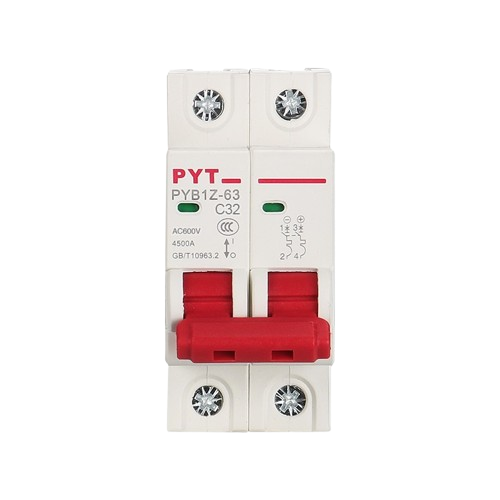

The PYT PYB1Z-63 is an AC circuit breaker designed to protect electrical circuits from damage caused by overloads or short circuits. This device automatically interrupts the flow of current when it detects abnormal conditions, ensuring the safety of connected equipment and preventing potential hazards such as fires or equipment failure.

• Residential and commercial electrical systems
• Industrial machinery and equipment
• Power distribution panels
• Renewable energy systems (e.g., solar inverters)
• HVAC systems and motor protection

The PYB1Z-63 is a robust and reliable circuit breaker with the following key specifications:

The PYB1Z-63 circuit breaker does not have traditional pins but instead features screw terminals for input and output connections. Below is a description of the terminal configuration:

*Note: The neutral terminal is only applicable for 2P, 3P, or 4P models.

1. Determine the Rated Current: Select the appropriate model of the PYB1Z-63 based on the current rating of your circuit. Ensure the rated current matches the load requirements.
2. Mounting: Install the circuit breaker onto a standard 35mm DIN rail in your distribution panel.
3. Wiring:
   • Connect the Line (Input) terminal to the incoming AC power supply.
   • Connect the Load (Output) terminal to the circuit or equipment being protected.
   • For multi-pole models, connect the neutral wire to the Neutral (N) terminal if applicable.
4. Power On: Switch the breaker to the "ON" position to energize the circuit.
5. Testing: Test the breaker functionality by simulating an overload or short circuit condition (if safe to do so) to ensure proper operation.

• Always ensure the breaker is rated for the voltage and current of your application.
• Use appropriately sized wires to prevent overheating or voltage drops.
• Avoid exceeding the breaker's rated breaking capacity (6kA for the PYB1Z-63).
• Periodically inspect the breaker for signs of wear, damage, or loose connections.
• For critical applications, consider using a surge protection device (SPD) in conjunction with the breaker.

While the PYB1Z-63 is not directly compatible with Arduino, it can be used in conjunction with a current sensor (e.g., ACS712) to monitor the circuit's current. Below is an example Arduino code snippet to monitor current and trigger an alert if it exceeds a threshold:

// Include necessary libraries
const int currentSensorPin = A0; // Analog pin connected to the current sensor
const float currentThreshold = 10.0; // Set current threshold in Amperes

void setup() {
  Serial.begin(9600); // Initialize serial communication
  pinMode(currentSensorPin, INPUT); // Set the sensor pin as input
}

void loop() {
  int sensorValue = analogRead(currentSensorPin); // Read sensor value
  float current = (sensorValue / 1023.0) * 30.0; // Convert to current (example for ACS712-30A)

  // Print current value to the serial monitor
  Serial.print("Current: ");
  Serial.print(current);
  Serial.println(" A");

  // Check if current exceeds threshold
  if (current > currentThreshold) {
    Serial.println("Warning: Current exceeds threshold!");
    // Add additional actions here, such as triggering a relay or alarm
  }

  delay(1000); // Wait for 1 second before next reading
}

Note: Replace the current conversion formula with the appropriate one for your sensor model.

1. Breaker Trips Frequently:

   • Cause: Overloaded circuit or short circuit.
   • Solution: Reduce the load on the circuit or inspect for wiring faults.

2. Breaker Does Not Trip During Overload:

   • Cause: Faulty breaker or incorrect current rating.
   • Solution: Replace the breaker or ensure the current rating matches the circuit requirements.

3. Loose Connections:

   • Cause: Improperly tightened terminal screws.
   • Solution: Ensure all terminal screws are securely tightened.

4. Breaker Does Not Reset:

   • Cause: Persistent fault in the circuit.
   • Solution: Inspect the circuit for faults before attempting to reset the breaker.

• Use a multimeter to check for continuity and voltage levels in the circuit.
• Verify that the breaker is properly mounted and aligned on the DIN rail.
• If the breaker trips repeatedly, consider upgrading to a higher-rated model (if safe and compliant with regulations).
• Consult the PYT PYB1Z-63 datasheet or contact the manufacturer for additional support.

By following this documentation, users can effectively integrate and maintain the PYB1Z-63 AC circuit breaker in their electrical systems.
