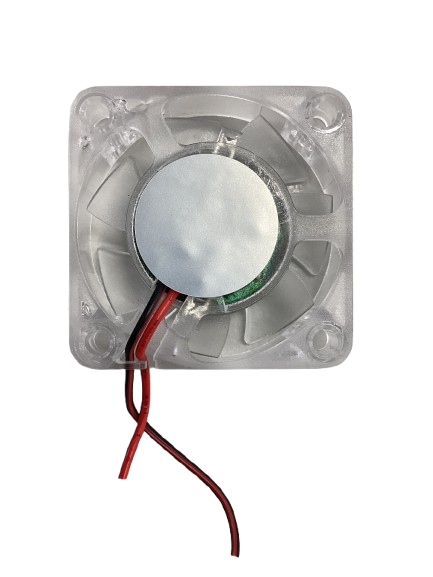

Image of Fan
Cirkit Designer LogoDesign with Fan in Cirkit Designer

Introduction

A fan is an electromechanical device that creates airflow to cool or ventilate an area. It is commonly used in electronic enclosures, such as computer cases, power supplies, and other devices, to dissipate heat and maintain optimal operating temperatures. Fans are essential for preventing overheating, which can damage components or reduce their lifespan.

Explore Projects Built with Fan

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered IR Sensor Controlled Fan with LED Indicator
Image of pollution control on roads: A project utilizing Fan in a practical application
This circuit is a fan control system that uses an IR sensor to detect motion and activate a relay, which in turn powers a fan. The circuit includes a voltage regulator to step down the voltage from a 9V battery to 5V, and an NPN transistor to control the relay coil, with an LED indicator to show the status of the fan.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Fan with Rocker Switch Control
Image of Motion Detector: A project utilizing Fan in a practical application
This circuit consists of a 9V battery powering a fan through a rocker switch. The switch controls the connection between the battery and the fan, allowing the user to turn the fan on and off.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi Pico-Based Smart Fan Controller with Touchscreen Interface
Image of Lueftersteuerung V1: A project utilizing Fan in a practical application
This circuit is an automated fan control system using a Raspberry Pi Pico, which reads temperature and humidity data from an AHT20 sensor and displays information on a Nextion Touch LCD. The system uses a Seeed Mosfet to control a fan based on the sensor data, with a logic level converter to interface between the 3.3V and 5V components, and a DCDC converter to step down voltage from 12V to 5V.
Cirkit Designer LogoOpen Project in Cirkit Designer
IR Sensor-Activated Dual 12V Fans with Relay Control
Image of ajay: A project utilizing Fan in a practical application
This circuit is a motion-activated fan control system. An IR sensor detects motion and activates a 12V relay, which then powers on 12V fans. The system uses a 9V battery for the sensor and relay, and a separate 12V battery for the fans.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Fan

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of pollution control on roads: A project utilizing Fan in a practical application
Battery-Powered IR Sensor Controlled Fan with LED Indicator
This circuit is a fan control system that uses an IR sensor to detect motion and activate a relay, which in turn powers a fan. The circuit includes a voltage regulator to step down the voltage from a 9V battery to 5V, and an NPN transistor to control the relay coil, with an LED indicator to show the status of the fan.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Motion Detector: A project utilizing Fan in a practical application
Battery-Powered Fan with Rocker Switch Control
This circuit consists of a 9V battery powering a fan through a rocker switch. The switch controls the connection between the battery and the fan, allowing the user to turn the fan on and off.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Lueftersteuerung V1: A project utilizing Fan in a practical application
Raspberry Pi Pico-Based Smart Fan Controller with Touchscreen Interface
This circuit is an automated fan control system using a Raspberry Pi Pico, which reads temperature and humidity data from an AHT20 sensor and displays information on a Nextion Touch LCD. The system uses a Seeed Mosfet to control a fan based on the sensor data, with a logic level converter to interface between the 3.3V and 5V components, and a DCDC converter to step down voltage from 12V to 5V.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ajay: A project utilizing Fan in a practical application
IR Sensor-Activated Dual 12V Fans with Relay Control
This circuit is a motion-activated fan control system. An IR sensor detects motion and activates a 12V relay, which then powers on 12V fans. The system uses a 9V battery for the sensor and relay, and a separate 12V battery for the fans.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Cooling electronic components in computers, power supplies, and servers.
  • Ventilating enclosures for industrial equipment.
  • Enhancing airflow in HVAC systems.
  • Used in DIY electronics projects for temperature regulation.
  • Cooling 3D printers, robotics, and other embedded systems.

Technical Specifications

Below are the general technical specifications for a standard DC brushless fan, commonly used in electronics:

Parameter Value
Operating Voltage 5V, 12V, or 24V (depending on model)
Current Consumption 0.1A to 0.5A
Power Rating 0.5W to 5W
Speed 1000 to 5000 RPM
Airflow 10 to 100 CFM (Cubic Feet per Minute)
Noise Level 20 to 40 dBA
Bearing Type Sleeve or Ball Bearing
Connector Type 2-pin, 3-pin, or 4-pin
Dimensions 40mm x 40mm, 80mm x 80mm, 120mm x 120mm, etc.

Pin Configuration and Descriptions

The pin configuration depends on the type of fan (2-pin, 3-pin, or 4-pin). Below is a table describing the pinout for each type:

2-Pin Fan

Pin Name Description
1 VCC Positive power supply (e.g., 5V, 12V, or 24V).
2 GND Ground connection.

3-Pin Fan

Pin Name Description
1 VCC Positive power supply.
2 GND Ground connection.
3 Tachometer Outputs a signal for speed monitoring.

4-Pin Fan

Pin Name Description
1 VCC Positive power supply.
2 GND Ground connection.
3 Tachometer Outputs a signal for speed monitoring.
4 PWM Pulse Width Modulation input for speed control.

Usage Instructions

How to Use the Fan in a Circuit

  1. Power Connection: Connect the VCC pin to the appropriate voltage source (e.g., 5V, 12V, or 24V) and the GND pin to the ground of the circuit.
  2. Speed Control (Optional): For 4-pin fans, use a PWM signal on the PWM pin to control the fan speed. The PWM signal is typically a square wave with a frequency of 25 kHz.
  3. Monitoring (Optional): For 3-pin and 4-pin fans, connect the Tachometer pin to a microcontroller or monitoring circuit to measure the fan's speed.

Important Considerations and Best Practices

  • Voltage Compatibility: Ensure the fan's operating voltage matches the power supply in your circuit.
  • Current Rating: Verify that the power supply can provide sufficient current for the fan.
  • Orientation: Install the fan in the correct orientation to ensure proper airflow direction.
  • Noise: Choose a fan with a low noise level if used in noise-sensitive environments.
  • PWM Signal: When using PWM control, ensure the signal frequency and duty cycle are within the fan's specifications.

Example: Connecting a 4-Pin Fan to an Arduino UNO

Below is an example of how to control a 4-pin fan using an Arduino UNO and PWM:

// Define the PWM pin for fan control
const int fanPwmPin = 9; // Connect to the PWM pin of the fan

void setup() {
  // Set the PWM pin as an output
  pinMode(fanPwmPin, OUTPUT);
}

void loop() {
  // Set fan speed to 50% (128 out of 255)
  analogWrite(fanPwmPin, 128); // 50% duty cycle for medium speed
  delay(5000); // Run at this speed for 5 seconds

  // Set fan speed to 100% (255 out of 255)
  analogWrite(fanPwmPin, 255); // 100% duty cycle for full speed
  delay(5000); // Run at this speed for 5 seconds

  // Set fan speed to 0% (0 out of 255)
  analogWrite(fanPwmPin, 0); // 0% duty cycle to stop the fan
  delay(5000); // Fan remains off for 5 seconds
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Fan Not Spinning:

    • Cause: Incorrect voltage or loose connections.
    • Solution: Verify the power supply voltage and ensure all connections are secure.
  2. Fan Spins Slowly:

    • Cause: Insufficient power or high PWM duty cycle.
    • Solution: Check the power supply's current rating and adjust the PWM signal.
  3. Excessive Noise:

    • Cause: Worn-out bearings or improper mounting.
    • Solution: Replace the fan or ensure it is securely mounted.
  4. Tachometer Signal Not Detected:

    • Cause: Incorrect connection or incompatible microcontroller.
    • Solution: Verify the tachometer pin connection and ensure the microcontroller can read the signal.

FAQs

Q: Can I use a 12V fan with a 5V power supply?
A: No, a 12V fan requires a 12V power supply. Using a lower voltage may prevent the fan from spinning or reduce its performance.

Q: How do I determine the airflow direction of the fan?
A: Most fans have arrows on the housing indicating the airflow direction and blade rotation.

Q: Can I control a 2-pin fan's speed?
A: No, 2-pin fans do not support speed control. Use a 4-pin fan for PWM-based speed control.

Q: What is the typical lifespan of a fan?
A: The lifespan depends on the bearing type. Sleeve bearings typically last 30,000 hours, while ball bearings can last up to 50,000 hours or more.
