How to Use Arduino Uno : Examples, Pinouts, and Specs

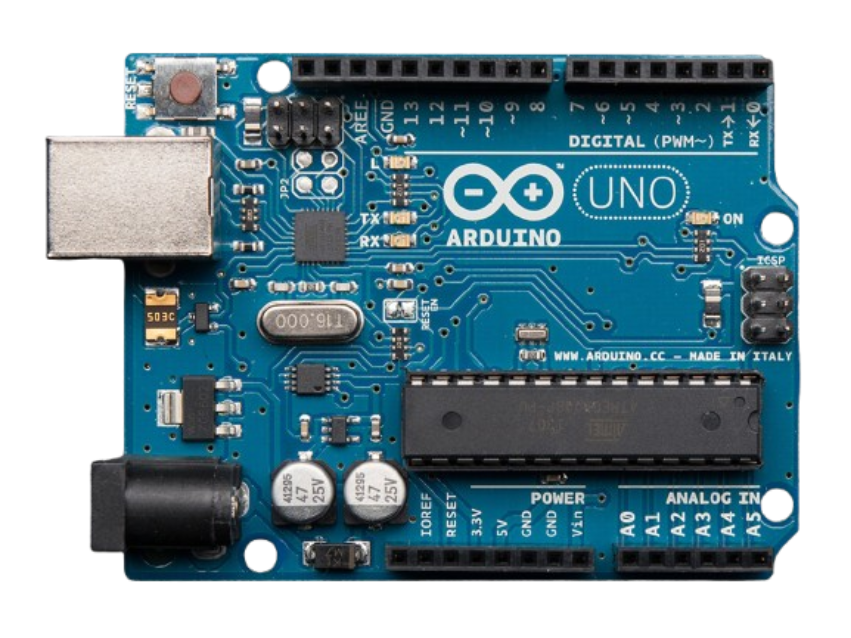

Image of Arduino Uno
Cirkit Designer LogoDesign with Arduino Uno in Cirkit Designer

Introduction

The Arduino Uno is a microcontroller development board based on the ATmega328P microcontroller, manufactured by Arduino.cc (Arduino AG). It is one of the most popular and versatile boards in the Arduino ecosystem, designed for beginners and professionals alike. The board provides an easy-to-use platform for building digital devices and interactive projects that can sense and control the physical world.

Explore Projects Built with Arduino Uno

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO-Based Smart Home Automation System with I2C LCD and RTC
Image of Alarm of RSU Hymn: A project utilizing Arduino Uno  in a practical application
This circuit features an Arduino UNO microcontroller interfaced with a 16x2 I2C LCD for display, a DS1302 RTC for real-time clock functionality, and a 1-channel relay for controlling high-power devices. Additionally, it includes multiple pushbuttons for user input and is powered by a 3xAAA battery pack, USB power, or a 5V adapter.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO and ESP32 CAM Controlled Fire Detection and Alert System with GSM Notification
Image of ASO BOT: A project utilizing Arduino Uno  in a practical application
This circuit features an Arduino UNO as the central microcontroller, interfaced with a variety of sensors, actuators, and modules. It includes a 5-channel fire sensor, temperature and humidity sensor (DHT11), two buzzers, and two servomotors controlled by an L293D driver shield. The circuit also integrates an ESP32 CAM for wireless capabilities, a 2-channel relay module controlling a mini water pump, an LCD display for user interface, a SIM 800L GSM module for cellular connectivity, and is powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Smart Home Automation System with Bluetooth Control
Image of WORK_1: A project utilizing Arduino Uno  in a practical application
This circuit uses an Arduino UNO to control various components including a servo motor, an LED, an RGB LED, a buzzer, and an LCD display based on inputs from a photoresistor, a DHT22 temperature and humidity sensor, and an MQ-2 gas sensor. Additionally, a Bluetooth module allows for remote control via a mobile application.
Cirkit Designer LogoOpen Project in Cirkit Designer
Wi-Fi Controlled Smart Servo System with Arduino and ESP8266
Image of System Diagram: A project utilizing Arduino Uno  in a practical application
This circuit integrates an Arduino UNO with various sensors and actuators, including a servo motor, LED, laser emitter, LDR, PIR sensor, and an LCD display. The Arduino controls the servo based on commands received from an ESP8266 WiFi module and displays information on the LCD, while also monitoring environmental conditions through the LDR and PIR sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino Uno

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Alarm of RSU Hymn: A project utilizing Arduino Uno  in a practical application
Arduino UNO-Based Smart Home Automation System with I2C LCD and RTC
This circuit features an Arduino UNO microcontroller interfaced with a 16x2 I2C LCD for display, a DS1302 RTC for real-time clock functionality, and a 1-channel relay for controlling high-power devices. Additionally, it includes multiple pushbuttons for user input and is powered by a 3xAAA battery pack, USB power, or a 5V adapter.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ASO BOT: A project utilizing Arduino Uno  in a practical application
Arduino UNO and ESP32 CAM Controlled Fire Detection and Alert System with GSM Notification
This circuit features an Arduino UNO as the central microcontroller, interfaced with a variety of sensors, actuators, and modules. It includes a 5-channel fire sensor, temperature and humidity sensor (DHT11), two buzzers, and two servomotors controlled by an L293D driver shield. The circuit also integrates an ESP32 CAM for wireless capabilities, a 2-channel relay module controlling a mini water pump, an LCD display for user interface, a SIM 800L GSM module for cellular connectivity, and is powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of WORK_1: A project utilizing Arduino Uno  in a practical application
Arduino UNO-Based Smart Home Automation System with Bluetooth Control
This circuit uses an Arduino UNO to control various components including a servo motor, an LED, an RGB LED, a buzzer, and an LCD display based on inputs from a photoresistor, a DHT22 temperature and humidity sensor, and an MQ-2 gas sensor. Additionally, a Bluetooth module allows for remote control via a mobile application.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of System Diagram: A project utilizing Arduino Uno  in a practical application
Wi-Fi Controlled Smart Servo System with Arduino and ESP8266
This circuit integrates an Arduino UNO with various sensors and actuators, including a servo motor, LED, laser emitter, LDR, PIR sensor, and an LCD display. The Arduino controls the servo based on commands received from an ESP8266 WiFi module and displays information on the LCD, while also monitoring environmental conditions through the LDR and PIR sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping and testing electronic circuits
  • Building IoT (Internet of Things) devices
  • Robotics and automation projects
  • Sensor-based data acquisition systems
  • Educational purposes for learning embedded systems and programming
  • Home automation and smart devices

Technical Specifications

The Arduino Uno is equipped with a range of features that make it suitable for a variety of applications. Below are the key technical details:

General Specifications

Parameter Value
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 6
DC Current per I/O Pin 20 mA
Flash Memory 32 KB (0.5 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connector Type-B
Dimensions 68.6 mm x 53.4 mm
Weight 25 g

Pin Configuration and Descriptions

The Arduino Uno has a total of 28 pins, including digital, analog, power, and communication pins. Below is a detailed description of the pin configuration:

Digital Pins

Pin Number Functionality
0 (RX) Serial Receive (UART)
1 (TX) Serial Transmit (UART)
2-13 General-purpose digital I/O pins
3, 5, 6, 9, 10, 11 PWM output pins

Analog Pins

Pin Number Functionality
A0-A5 Analog input pins (10-bit ADC)

Power Pins

Pin Name Functionality
VIN Input voltage to the board
5V Regulated 5V output
3.3V Regulated 3.3V output
GND Ground
IOREF Voltage reference for I/O pins
RESET Resets the microcontroller

Communication Pins

Pin Name Functionality
SDA I2C Data Line
SCL I2C Clock Line
SPI (10-13) SPI communication pins

Usage Instructions

The Arduino Uno is designed to be user-friendly and can be programmed using the Arduino IDE. Below are the steps to use the board in a circuit:

Step 1: Setting Up the Arduino IDE

  1. Download and install the Arduino IDE from the official website: https://www.arduino.cc.
  2. Connect the Arduino Uno to your computer using a USB Type-B cable.
  3. Open the Arduino IDE and select the correct board and port:
    • Go to Tools > Board > Arduino Uno.
    • Go to Tools > Port and select the port corresponding to your board.

Step 2: Writing and Uploading Code

  1. Write your code in the Arduino IDE. For example, the following code blinks an LED connected to pin 13:
// Blink an LED connected to pin 13
void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}
  1. Click the Upload button in the Arduino IDE to upload the code to the board.

Step 3: Connecting Components

  • Use jumper wires to connect sensors, actuators, or other components to the appropriate pins on the Arduino Uno.
  • Ensure that the power supply voltage and current requirements of the connected components are within the board's specifications.

Important Considerations and Best Practices

  • Avoid exceeding the maximum current rating (20 mA) for each I/O pin to prevent damage.
  • Use external power sources (e.g., batteries or adapters) for high-power components.
  • Always double-check connections to avoid short circuits or incorrect wiring.
  • Use pull-up or pull-down resistors for stable digital input signals.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The Arduino Uno is not detected by the computer.

    • Ensure the USB cable is properly connected and functional.
    • Install the necessary USB drivers from the Arduino website.
    • Check if the correct port is selected in the Arduino IDE.
  2. The code does not upload to the board.

    • Verify that the correct board and port are selected in the Arduino IDE.
    • Press the RESET button on the board before uploading.
    • Ensure no other program is using the same COM port.
  3. The connected components are not working as expected.

    • Double-check the wiring and connections.
    • Verify that the components are compatible with the Arduino Uno.
    • Use a multimeter to check for power supply issues.
  4. The board overheats or stops working.

    • Ensure the input voltage does not exceed the recommended range (7-12V).
    • Avoid drawing excessive current from the I/O pins.

FAQs

  1. Can the Arduino Uno be powered via USB?

    • Yes, the board can be powered through the USB connection or an external power supply.
  2. What is the maximum current the board can supply?

    • The 5V pin can supply up to 500 mA when powered via USB, and up to 1A when powered via an external adapter.
  3. Can I use the Arduino Uno for wireless communication?

    • Yes, you can use external modules like Bluetooth, Wi-Fi, or RF transceivers for wireless communication.
  4. Is the Arduino Uno compatible with shields?

    • Yes, the Arduino Uno is compatible with a wide range of shields designed for the Arduino ecosystem.

By following this documentation, users can effectively utilize the Arduino Uno for a variety of projects and applications.
