How to Use Adafruit ItsyBitsy ESP32: Examples, Pinouts, and Specs

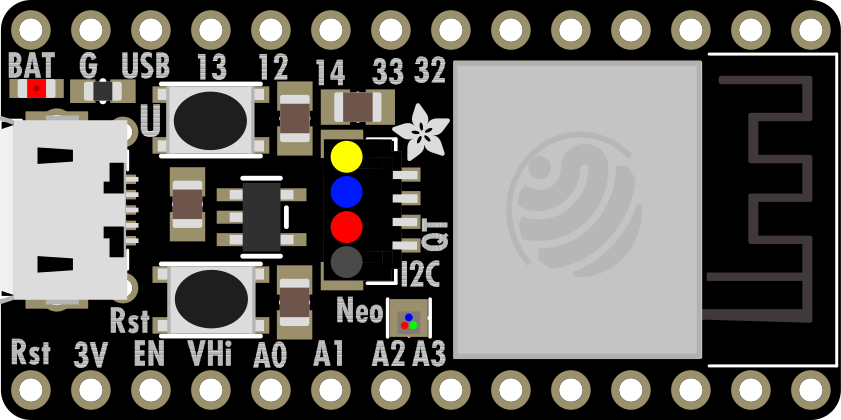

The Adafruit ItsyBitsy ESP32 (Manufacturer Part ID: 5889) is a compact and versatile microcontroller board powered by the ESP32 chip. Designed for Internet of Things (IoT) applications, it features built-in Wi-Fi and Bluetooth capabilities, making it ideal for projects requiring wireless connectivity. Its small form factor and powerful processing capabilities make it suitable for a wide range of applications, from home automation to wearable devices.

• IoT devices and smart home automation
• Wireless sensor networks
• Wearable electronics
• Robotics and remote control systems
• Data logging and real-time monitoring
• Bluetooth-enabled projects (e.g., BLE beacons, wireless communication)

The Adafruit ItsyBitsy ESP32 is packed with features that make it a powerful yet compact development board. Below are its key technical details:

• Microcontroller: ESP32 dual-core processor
• Clock Speed: Up to 240 MHz
• Flash Memory: 4 MB
• RAM: 520 KB SRAM
• Wireless Connectivity:
  • Wi-Fi: 802.11 b/g/n
  • Bluetooth: BLE and Classic Bluetooth
• Operating Voltage: 3.3V
• Input Voltage: 5V via USB or 3.3V via VIN pin
• GPIO Pins: 23 (including ADC, DAC, PWM, I2C, SPI, UART)
• Analog Inputs: 6 ADC channels (12-bit resolution)
• Digital Outputs: PWM support on multiple pins
• Dimensions: 36mm x 18mm x 4mm
• Weight: ~4g

The Adafruit ItsyBitsy ESP32 has a total of 23 GPIO pins, each with specific functions. Below is the pinout description:

The Adafruit ItsyBitsy ESP32 is easy to use in a variety of projects. Below are the steps to get started and important considerations for using the board effectively.

1. Powering the Board:

   • Connect the board to a computer or USB power source using a micro-USB cable.
   • Alternatively, supply 3.3V to the VIN pin for external power.

2. Programming the Board:

   • Install the Arduino IDE and add the ESP32 board support package.
   • Select "Adafruit ItsyBitsy ESP32" from the board manager.
   • Connect the board to your computer via USB and select the appropriate COM port.

3. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other peripherals.
   • For I2C devices, connect to GPIO22 (SCL) and GPIO23 (SDA).
   • For SPI devices, use GPIO18 (SCK), GPIO19 (MISO), and GPIO21 (MOSI).

4. Uploading Code:

   • Write your code in the Arduino IDE and upload it to the board.
   • Use the onboard reset button if needed to restart the board.

• Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels to avoid damaging the board.
• Power Supply: Use a stable power source to prevent unexpected resets or instability.
• Wi-Fi and Bluetooth: Avoid placing the board near metal objects or sources of interference to maintain strong wireless connectivity.
• Pin Usage: Some pins (e.g., GPIO0) have special functions during boot. Avoid using them as general-purpose I/O unless necessary.

Below is an example of how to use the Adafruit ItsyBitsy ESP32 to read a temperature sensor and send the data over Wi-Fi:

#include <WiFi.h>

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

void setup() {
  Serial.begin(115200); // Initialize serial communication
  WiFi.begin(ssid, password); // Connect to Wi-Fi

  // Wait for connection
  while (WiFi.status() != WL_CONNECTED) {
    delay(1000);
    Serial.println("Connecting to Wi-Fi...");
  }
  Serial.println("Connected to Wi-Fi!");
}

void loop() {
  // Example: Read a sensor value (replace with actual sensor code)
  int sensorValue = analogRead(34); // Read from ADC pin
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue);

  delay(1000); // Wait 1 second before reading again
}

1. Board Not Detected by Computer:

   • Ensure the USB cable is data-capable (not just for charging).
   • Check if the correct COM port is selected in the Arduino IDE.

2. Wi-Fi Connection Fails:

   • Verify the SSID and password are correct.
   • Ensure the router is within range and not blocking the device.

3. Code Upload Fails:

   • Press and hold the BOOT button while uploading the code.
   • Check that the correct board and port are selected in the Arduino IDE.

4. Unstable Operation:

   • Ensure the power supply is stable and sufficient for the board and peripherals.
   • Avoid using GPIO pins with special boot functions unless necessary.

• Use the Serial Monitor in the Arduino IDE to debug and view error messages.
• Refer to the Adafruit ItsyBitsy ESP32 pinout diagram for proper connections.
• Update the ESP32 board support package in the Arduino IDE to the latest version.

By following this documentation, you can effectively use the Adafruit ItsyBitsy ESP32 in your projects and troubleshoot common issues with ease.
