How to Use uno: Examples, Pinouts, and Specs

The Arduino Uno is a microcontroller board based on the ATmega328P. It is one of the most popular and versatile development boards in the Arduino ecosystem, designed for beginners and professionals alike. The board features 14 digital input/output pins (6 of which can be used as PWM outputs), 6 analog inputs, a USB connection for programming, a power jack, and a reset button. Its simplicity and flexibility make it ideal for prototyping, learning about electronics, and building interactive projects.

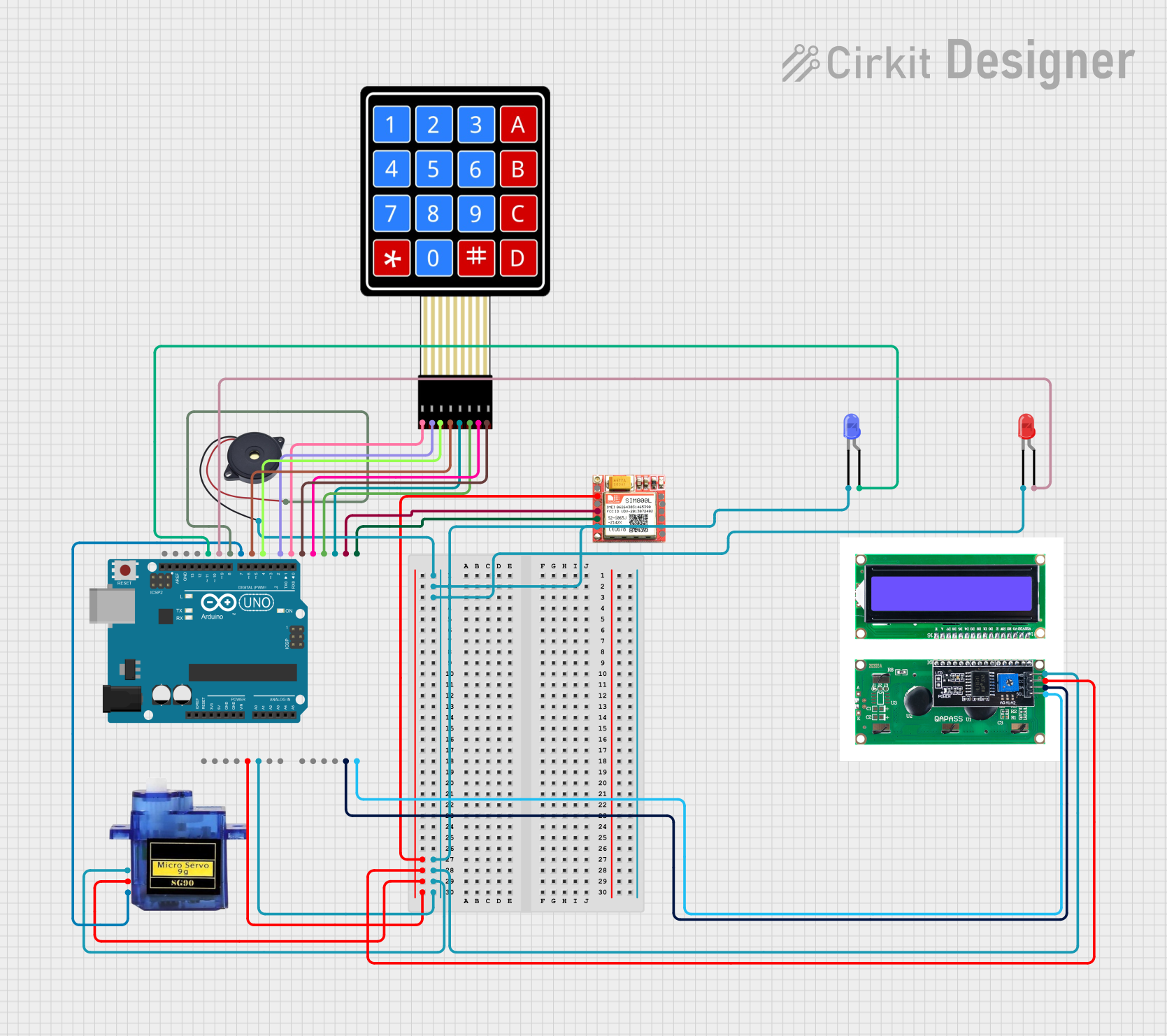

• Prototyping and testing electronic circuits
• Building IoT (Internet of Things) devices
• Robotics and automation projects
• Sensor data acquisition and processing
• Educational purposes for learning programming and electronics

The Arduino Uno is built around the ATmega328P microcontroller and includes the following key specifications:

The Arduino Uno has a total of 28 pins, which are categorized as follows:

1. Powering the Board:

   • Connect the Arduino Uno to your computer using a USB Type-B cable for programming and power.
   • Alternatively, use an external power supply (7-12V) via the VIN pin or the DC power jack.

2. Programming the Board:

   • Install the Arduino IDE from the official Arduino website.
   • Connect the board to your computer and select the correct board ("Arduino Uno") and port in the IDE.
   • Write your code in the IDE and upload it to the board using the "Upload" button.

3. Connecting Components:

   • Use jumper wires to connect sensors, actuators, and other components to the appropriate pins.
   • Ensure that the voltage and current requirements of the components are within the Arduino Uno's limits.

4. Running the Circuit:

   • Once the code is uploaded, the Arduino Uno will execute the program and interact with the connected components.

• Avoid drawing more than 20 mA from any single I/O pin to prevent damage to the microcontroller.
• Use external pull-up or pull-down resistors for stable digital input signals.
• When using motors or high-power devices, use a separate power supply and appropriate driver circuits.
• Always double-check connections to avoid short circuits or incorrect wiring.

The following code demonstrates how to blink an LED connected to digital pin 13:

// This example code blinks an LED connected to pin 13 on the Arduino Uno.
// The LED will turn on for 1 second, then off for 1 second, repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. The Arduino Uno is not detected by the computer:

   • Ensure the USB cable is properly connected and functional.
   • Check if the correct board and port are selected in the Arduino IDE.
   • Install or update the USB drivers for the Arduino Uno.

2. Code does not upload to the board:

   • Verify that no other program is using the COM port.
   • Press the reset button on the board before uploading the code.
   • Ensure the correct board ("Arduino Uno") is selected in the IDE.

3. Components are not working as expected:

   • Double-check the wiring and connections.
   • Verify that the components are functional and compatible with the Arduino Uno.
   • Use a multimeter to check for voltage and continuity issues.

4. The board overheats:

   • Ensure that the input voltage does not exceed 12V.
   • Avoid drawing excessive current from the I/O pins.

Q: Can I power the Arduino Uno with a battery?
A: Yes, you can use a 9V battery connected to the DC power jack or the VIN pin.

Q: What is the maximum current the Arduino Uno can supply?
A: The 5V pin can supply up to 500 mA when powered via USB, or up to 1A when powered via an external power supply.

Q: Can I use the Arduino Uno for wireless communication?
A: Yes, you can use wireless modules like Bluetooth (HC-05/HC-06) or Wi-Fi (ESP8266/ESP32) with the Arduino Uno.

Q: How do I reset the Arduino Uno?
A: Press the reset button on the board, or connect the RESET pin to GND momentarily.

By following this documentation, you can effectively use the Arduino Uno for a wide range of projects and applications.
