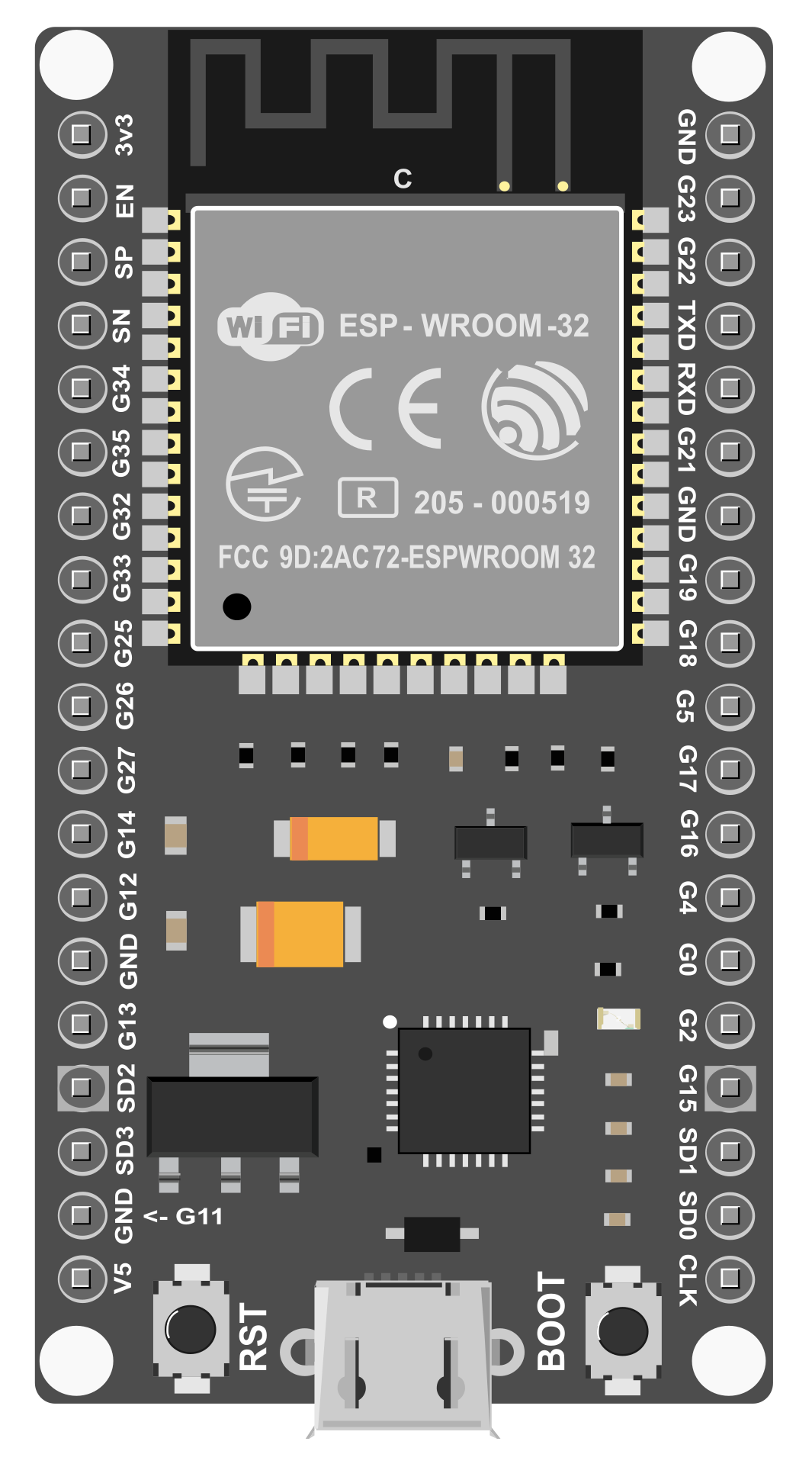

How to Use ESP32 38 PINS: Examples, Pinouts, and Specs

The ESP32 38 Pins is a versatile microcontroller designed for a wide range of applications, particularly in the Internet of Things (IoT) and embedded systems. It features integrated Wi-Fi and Bluetooth capabilities, making it a powerful choice for wireless communication projects. With 38 GPIO pins, the ESP32 offers extensive input/output functionality, enabling developers to connect various sensors, actuators, and peripherals.

• IoT devices and smart home automation
• Wireless sensor networks
• Robotics and industrial automation
• Wearable devices
• Data logging and remote monitoring systems

The ESP32 38 Pins module has 38 GPIO pins, which can be configured for various functions. Below is a table summarizing the key pins and their descriptions:

Note: Some GPIO pins have specific restrictions or are used during boot. Refer to the ESP32 datasheet for detailed pin behavior.

1. Powering the ESP32:

   • The ESP32 operates at 3.3V. Ensure your power supply provides a stable 3.3V.
   • Avoid supplying voltages higher than 3.6V to prevent damage to the module.

2. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other peripherals.
   • Configure the pins in your code for the desired functionality (e.g., input, output, ADC, PWM).

3. Programming the ESP32:

   • Use the Arduino IDE or ESP-IDF (Espressif IoT Development Framework) to program the ESP32.
   • Connect the ESP32 to your computer via a USB-to-serial adapter.
   • Select the correct board and port in the IDE before uploading your code.

4. Wi-Fi and Bluetooth Setup:

   • Use the built-in libraries (e.g., WiFi.h for Wi-Fi and BluetoothSerial.h for Bluetooth) to configure wireless communication.

• Boot Mode Selection: GPIO0 must be pulled low during boot to enter programming mode.
• Voltage Levels: Ensure all connected devices operate at 3.3V logic levels. Use level shifters if necessary.
• Heat Management: The ESP32 can get warm during operation. Ensure proper ventilation or heat dissipation.
• Pin Restrictions: Avoid using GPIO6-GPIO11 as they are connected to the internal flash memory.

Below is an example of how to blink an LED connected to GPIO2 using the Arduino IDE:

// Define the GPIO pin where the LED is connected
const int ledPin = 2;

void setup() {
  // Set the LED pin as an output
  pinMode(ledPin, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(ledPin, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(ledPin, LOW);
  delay(1000); // Wait for 1 second
}

Tip: Replace ledPin with the GPIO number where your LED is connected.

1. ESP32 Not Detected by Computer:

   • Ensure the USB cable is functional and supports data transfer.
   • Install the correct USB-to-serial driver for your operating system.

2. Upload Fails with Timeout Error:

   • Check that GPIO0 is pulled low during programming.
   • Press and hold the "BOOT" button on the ESP32 module while uploading the code.

3. Wi-Fi Connection Issues:

   • Verify the SSID and password in your code.
   • Ensure the Wi-Fi network is within range and not using unsupported security protocols.

4. Random Resets or Instability:

   • Check the power supply for stability and sufficient current (at least 500mA).
   • Avoid using GPIO pins connected to the internal flash memory.

Q: Can I power the ESP32 with a 5V supply?
A: No, the ESP32 operates at 3.3V. Use a voltage regulator to step down 5V to 3.3V.

Q: How many devices can I connect via Bluetooth?
A: The ESP32 supports up to 7 simultaneous Bluetooth connections in BLE mode.

Q: Can I use the ESP32 for audio applications?
A: Yes, the ESP32 supports I2S for audio input/output and has two DAC channels for audio playback.

Q: Is the ESP32 compatible with Arduino libraries?
A: Yes, the ESP32 is supported by the Arduino IDE and can use many Arduino libraries.

For more detailed information, refer to the official ESP32 datasheet and programming guide.
