How to Use esp32 38p typec cp2102: Examples, Pinouts, and Specs

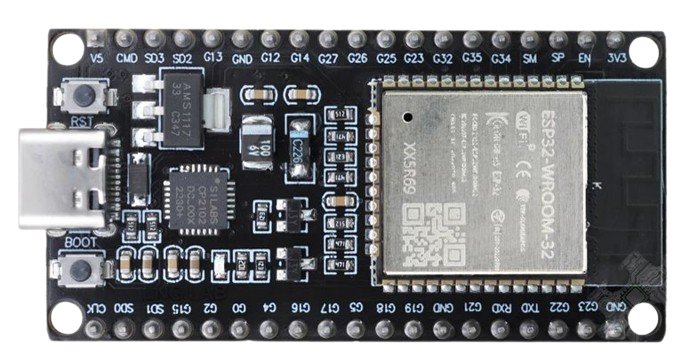

The ESP32 38P Type-C CP2102 is a versatile development board based on the ESP32 microcontroller, manufactured by Espressif Systems. It features a dual-core processor, integrated Wi-Fi, and Bluetooth capabilities, making it ideal for IoT (Internet of Things) applications, smart devices, and wireless communication projects. The board includes a CP2102 USB-to-UART bridge for seamless programming and debugging via a USB Type-C interface.

• IoT devices and smart home automation
• Wireless sensor networks
• Wearable technology
• Robotics and drones
• Prototyping and development of Wi-Fi/Bluetooth-enabled devices

1. Powering the Board: Connect the ESP32 38P to your computer or power source using a USB Type-C cable. The board operates at 3.3V internally but accepts 5V input via USB.
2. Programming: Use the Arduino IDE or Espressif's ESP-IDF to program the ESP32. Select the appropriate board and port in the IDE.
3. Connecting Peripherals: Use the GPIO pins to connect sensors, actuators, or other peripherals. Ensure that external components operate at 3.3V to avoid damaging the board.
4. Serial Communication: The CP2102 USB-to-UART bridge allows for easy debugging and serial communication with your computer.

• Voltage Levels: Avoid applying voltages higher than 3.3V to GPIO pins.
• Boot Mode: To enter boot mode for flashing firmware, hold the "BOOT" button while pressing the "EN" button.
• Power Supply: Use a stable power source to prevent unexpected resets or malfunctions.
• Wi-Fi and Bluetooth: Ensure proper antenna placement for optimal wireless performance.

Below is an example of using the ESP32 to blink an LED connected to GPIO2:

// Example: Blink an LED connected to GPIO2 on the ESP32

// Define the GPIO pin for the LED
#define LED_PIN 2

void setup() {
  // Set the LED pin as an output
  pinMode(LED_PIN, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(LED_PIN, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(LED_PIN, LOW);
  delay(1000); // Wait for 1 second
}

1. Board Not Detected by Computer:

   • Ensure the USB Type-C cable supports data transfer.
   • Install the CP2102 driver from the Silicon Labs website if not already installed.

2. Upload Errors in Arduino IDE:

   • Check that the correct board and COM port are selected in the IDE.
   • Hold the "BOOT" button while uploading the code to enter boot mode.

3. Wi-Fi Connection Issues:

   • Verify the SSID and password in your code.
   • Ensure the router is within range and supports 2.4 GHz Wi-Fi.

4. GPIO Pin Malfunction:

   • Confirm that the pin is not being used for another function (e.g., ADC, UART).
   • Check for short circuits or incorrect wiring.

• Reset the Board: Press the "EN" button to reset the ESP32 if it becomes unresponsive.
• Debugging: Use the Serial Monitor in the Arduino IDE to view debug messages.
• Power Supply Issues: If the board resets frequently, use a higher-quality USB cable or an external 5V power source.

By following this documentation, users can effectively utilize the ESP32 38P Type-C CP2102 for a wide range of applications, from simple projects to complex IoT systems.
