How to Use DC Barrel Connector 5.5x2.1mm Male: Examples, Pinouts, and Specs

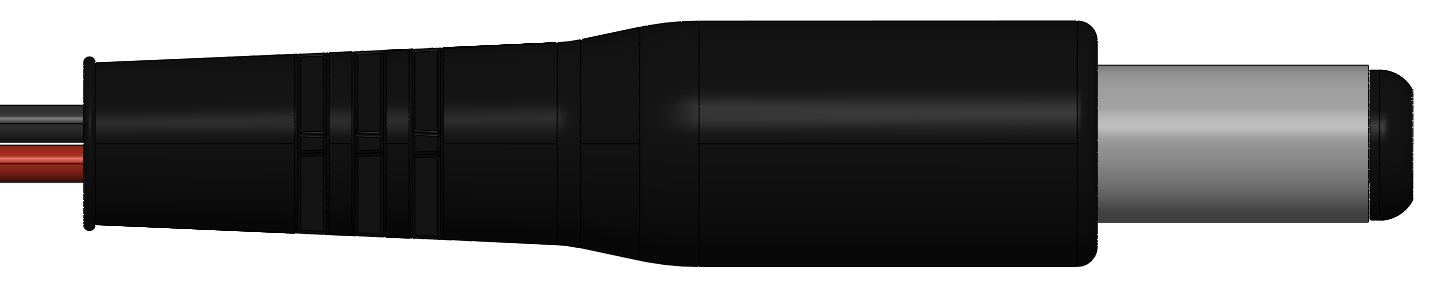

The DC Barrel Connector 5.5x2.1mm Male is a cylindrical connector designed for DC power supply applications. It features a 5.5mm outer diameter and a 2.1mm inner diameter, making it one of the most commonly used connectors for powering electronic devices. This connector is widely used in consumer electronics, prototyping, and DIY projects to connect power adapters to devices such as routers, LED strips, Arduino boards, and more.

• Powering small electronic devices (e.g., routers, modems, and cameras)
• DIY electronics and prototyping
• Connecting LED strips and lighting systems
• Powering Arduino and other microcontroller-based projects

Below are the key technical details of the DC Barrel Connector 5.5x2.1mm Male:

The DC Barrel Connector 5.5x2.1mm Male has two main contact points:

Note: Always verify the polarity of your power supply and device before connecting to avoid damage.

1. Identify the Polarity:

   • The center pin is typically positive (+), and the outer sleeve is negative (-). Confirm this with your power supply and device specifications.

2. Soldering the Connector:

   • Strip the wires of your power cable.
   • Solder the positive wire to the center pin and the negative wire to the outer sleeve.
   • Use heat shrink tubing or electrical tape to insulate the connections and prevent short circuits.

3. Connecting to a Device:

   • Insert the male connector into the corresponding female DC barrel jack on your device.
   • Ensure a snug fit to maintain a reliable connection.

4. Testing:

   • Use a multimeter to verify the voltage and polarity before powering your device.

• Polarity Check: Always double-check the polarity of your power supply and device to avoid damage.
• Current Rating: Ensure the connector can handle the current required by your device. Exceeding the current rating may cause overheating or failure.
• Secure Connections: Use proper soldering techniques or crimping tools to ensure a reliable and durable connection.
• Avoid Overvoltage: Verify that the voltage supplied matches the device's requirements.

The DC Barrel Connector 5.5x2.1mm Male is commonly used to power an Arduino UNO. Below is an example of how to connect it:

1. Use a 9V or 12V DC power adapter with a 5.5x2.1mm male connector.
2. Plug the connector into the Arduino UNO's DC power jack.
3. Ensure the adapter's polarity matches the Arduino's requirements (center positive).

If you want to control an LED using the Arduino UNO powered by this connector, here’s a simple code example:

// Simple Arduino code to blink an LED
// Ensure the Arduino is powered using a DC Barrel Connector

const int ledPin = 13; // Built-in LED pin on most Arduino boards

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

1. Loose Connection:

   • Problem: The connector does not fit snugly into the female jack.
   • Solution: Ensure you are using a compatible 5.5x2.1mm female jack. Replace the connector if it is damaged.

2. Polarity Reversal:

   • Problem: The device does not power on or behaves abnormally.
   • Solution: Verify the polarity of the power supply and ensure the center pin is positive.

3. Overheating:

   • Problem: The connector becomes hot during operation.
   • Solution: Check that the current drawn by the device does not exceed the connector's rating. Use a higher-rated connector if necessary.

4. No Power to Device:

   • Problem: The device does not turn on after connecting the power supply.
   • Solution: Use a multimeter to check the voltage at the connector. Ensure the solder joints are secure and there are no breaks in the wire.

Q: Can I use this connector for AC power?
A: No, the DC Barrel Connector is designed specifically for DC power applications. Using it for AC power may damage the connector or connected devices.

Q: What happens if I reverse the polarity?
A: Reversing the polarity can damage your device. Always verify the polarity of your power supply and device before connecting.

Q: Can this connector handle 12V and 5A?
A: Yes, most DC Barrel Connectors 5.5x2.1mm Male are rated for up to 24V and 5A. However, confirm the specific rating of your connector before use.

Q: How do I clean the connector?
A: Use a soft, dry cloth to clean the connector. Avoid using water or abrasive materials.

By following this documentation, you can effectively use the DC Barrel Connector 5.5x2.1mm Male in your projects and ensure reliable performance.
