How to Use acs712: Examples, Pinouts, and Specs

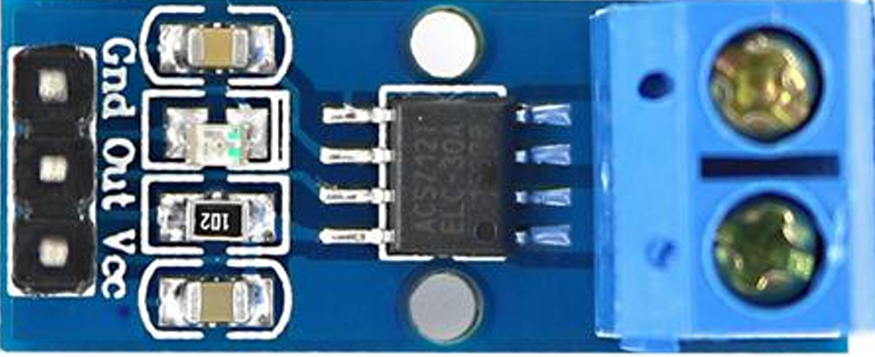

The ACS712 is a Hall effect-based linear current sensor manufactured by HandsonTech. It provides an analog output voltage proportional to the current flowing through it. This sensor is capable of measuring both AC and DC currents, making it versatile for a wide range of applications. The ACS712 is widely used in power management, motor control, overcurrent protection, and energy monitoring systems.

• Power supply current monitoring
• Motor control and protection
• Battery management systems
• Overcurrent fault detection
• Energy consumption monitoring in appliances

The ACS712 is available in different variants based on the current sensing range. Below are the key technical details:

The ACS712 has 8 pins, but only a few are typically used in most applications. Below is the pinout:

1. Power Supply: Connect the VCC pin to a 5V power supply and the GND pin to the ground of your circuit.
2. Current Measurement:
   • Pass the current-carrying conductor through the IP+ and IP- terminals. Ensure the current does not exceed the sensor's rated range.
   • The sensor outputs an analog voltage (VIOUT) proportional to the current. At 0A, the output voltage is approximately VCC/2 (e.g., 2.5V for a 5V supply).
3. Analog Output: Connect the VIOUT pin to an analog input pin of a microcontroller (e.g., Arduino) to read the voltage and calculate the current.

• Current Range: Choose the correct ACS712 variant (±5A, ±20A, or ±30A) based on your application's current range.
• Filtering: Add a capacitor (e.g., 0.1 µF) between VIOUT and GND to reduce noise in the output signal.
• Isolation: Ensure proper isolation between the high-current path and the low-voltage control circuit.
• Calibration: Perform calibration to account for any offset in the output voltage at 0A.

Below is an example code to measure current using the ACS712 sensor with an Arduino UNO:

// Include necessary libraries (if any)

// Define the analog pin connected to the ACS712 VIOUT pin
const int sensorPin = A0;

// Define the sensitivity of the ACS712 (e.g., 185mV/A for ±5A variant)
const float sensitivity = 0.185; // Sensitivity in V/A

// Define the supply voltage (Vcc) of the sensor
const float Vcc = 5.0; // Supply voltage in volts

// Define the zero-current output voltage (Vcc/2)
const float zeroCurrentVoltage = Vcc / 2;

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  // Read the analog value from the sensor
  int sensorValue = analogRead(sensorPin);

  // Convert the analog value to voltage
  float sensorVoltage = (sensorValue / 1023.0) * Vcc;

  // Calculate the current in amperes
  float current = (sensorVoltage - zeroCurrentVoltage) / sensitivity;

  // Print the current value to the Serial Monitor
  Serial.print("Current: ");
  Serial.print(current);
  Serial.println(" A");

  delay(1000); // Wait for 1 second before the next reading
}

• Replace sensitivity with the appropriate value for your ACS712 variant (e.g., 0.1 for ±20A, 0.066 for ±30A).
• Ensure the current-carrying conductor is properly connected to the IP+ and IP- terminals.

1. No Output or Incorrect Readings:

   • Cause: Incorrect wiring or loose connections.
   • Solution: Double-check all connections, especially VCC, GND, and VIOUT.

2. High Noise in Output Signal:

   • Cause: Lack of filtering capacitor or external electrical noise.
   • Solution: Add a 0.1 µF capacitor between VIOUT and GND to filter noise.

3. Output Voltage Does Not Change with Current:

   • Cause: Current exceeds the sensor's rated range or sensor is damaged.
   • Solution: Verify the current range and ensure it is within the sensor's limits.

4. Offset Voltage at 0A is Incorrect:

   • Cause: Manufacturing tolerances or environmental factors.
   • Solution: Perform a calibration to determine the exact zero-current voltage.

Q1: Can the ACS712 measure both AC and DC currents?
Yes, the ACS712 can measure both AC and DC currents. The output voltage will vary proportionally with the instantaneous current.

Q2: How do I choose the correct ACS712 variant?
Select the variant based on the maximum current you need to measure. For example, use the ±5A variant for small currents and the ±30A variant for larger currents.

Q3: What is the accuracy of the ACS712?
The typical accuracy is ±1.5% of the full-scale reading, but this may vary depending on the operating conditions and calibration.

Q4: Can I use the ACS712 with a 3.3V microcontroller?
Yes, but you must ensure the sensor is powered with 5V and use a voltage divider or level shifter to scale the output voltage to 3.3V.

Q5: Is the ACS712 isolated from the high-current path?
Yes, the ACS712 provides galvanic isolation between the high-current path and the low-voltage control circuit.
