How to Use LM2596 Step Down Module: Examples, Pinouts, and Specs

Introduction

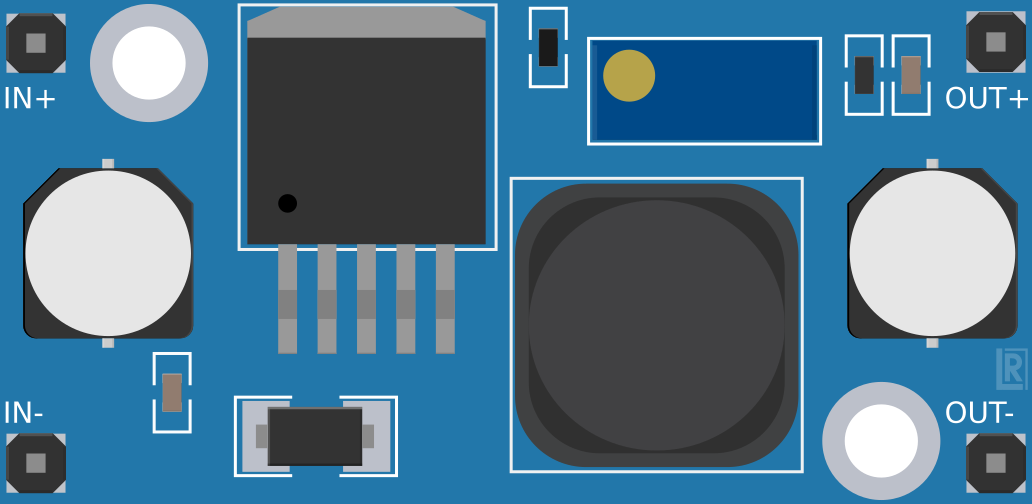

The LM2596 Step Down Module is a DC-DC buck converter designed to efficiently step down voltage from a higher level to a lower level. It is widely used in power supply applications where a stable and adjustable output voltage is required. This module is capable of handling up to 3A of output current and features an adjustable output voltage range, making it suitable for a variety of electronic projects.

Explore Projects Built with LM2596 Step Down Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters

This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.

Open Project in Cirkit Designer

Battery-Powered UPS with Step-Down Buck Converter and BMS

This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.

Open Project in Cirkit Designer

Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution

This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.

Open Project in Cirkit Designer

ESP32-Based Solar-Powered Current Monitoring System with OLED Display

This circuit features an ESP32 microcontroller interfaced with a 0.96" OLED display, multiple LDR sensors with voltage dividers, an ACS712 current sensor, and two servomotors. The ESP32 reads analog values from the LDRs and the current sensor, and controls the servomotors. The LM2596 module steps down voltage for the circuit, which is powered by a combination of a solar panel and a 12V battery, with the current sensor monitoring the load current.

Open Project in Cirkit Designer

Common Applications and Use Cases

• Powering low-voltage devices from higher-voltage sources (e.g., 12V to 5V conversion)
• Battery-powered systems to regulate voltage
• DIY electronics projects requiring stable power supplies
• Embedded systems and microcontroller-based circuits
• LED drivers and motor controllers

Technical Specifications

The LM2596 Step Down Module is built around the LM2596 IC, a high-efficiency buck converter. Below are the key technical details:

Pin Configuration and Descriptions

The LM2596 Step Down Module typically has the following pinout:

Usage Instructions

How to Use the LM2596 Step Down Module in a Circuit

1. Connect the Input Voltage (VIN):

   • Attach the positive terminal of your power source to the VIN pin.
   • Connect the negative terminal of your power source to the GND pin.

2. Set the Desired Output Voltage:

   • Use the onboard potentiometer to adjust the output voltage.
   • Turn the potentiometer clockwise to increase the output voltage or counterclockwise to decrease it.
   • Use a multimeter to measure the output voltage at the VOUT pin while adjusting.

3. Connect the Load:

   • Attach the positive terminal of your load to the VOUT pin.
   • Connect the negative terminal of your load to the GND pin.

4. Verify Connections:

   • Double-check all connections to ensure proper polarity and secure wiring.

5. Power On:

   • Turn on the power source and verify the output voltage with a multimeter before connecting sensitive devices.

Important Considerations and Best Practices

• Heat Dissipation: The module can handle up to 3A of current, but proper heat dissipation (e.g., a heatsink) is required for high-current applications.
• Input Voltage: Ensure the input voltage is at least 1.5V higher than the desired output voltage for proper operation.
• Polarity: Double-check the polarity of the input and output connections to avoid damage to the module.
• Load Requirements: Avoid exceeding the maximum current rating (3A) to prevent overheating or damage.
• Noise Filtering: For sensitive applications, consider adding input and output capacitors to reduce voltage ripple.

Example: Using the LM2596 with an Arduino UNO

The LM2596 module can be used to power an Arduino UNO by stepping down a 12V source to 5V. Below is an example circuit and Arduino code:

Circuit Connections

• Connect a 12V DC power source to the VIN and GND pins of the LM2596 module.
• Adjust the output voltage to 5V using the potentiometer.
• Connect the VOUT pin of the LM2596 to the 5V pin of the Arduino UNO.
• Connect the GND pin of the LM2596 to the GND pin of the Arduino UNO.

Arduino Code Example

// Example code to blink an LED using Arduino UNO powered by LM2596 module

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

1. No Output Voltage:

   • Check the input voltage. Ensure it is within the specified range (4V to 40V).
   • Verify the polarity of the input and output connections.
   • Ensure the potentiometer is not set to the minimum output voltage (1.25V).

2. Overheating:

   • Reduce the load current if it exceeds 3A.
   • Attach a heatsink to the LM2596 IC for better heat dissipation.

3. Voltage Ripple or Noise:

   • Add low ESR capacitors (e.g., 100µF) to the input and output terminals.
   • Use shorter wires to minimize interference.

4. Output Voltage Not Adjustable:

   • Ensure the potentiometer is functioning correctly. Replace it if necessary.
   • Verify that the input voltage is at least 1.5V higher than the desired output voltage.

FAQs

Q: Can the LM2596 module be used to charge batteries?
A: Yes, but ensure the output voltage is set to match the battery's charging voltage, and use a current-limiting circuit if required.

Q: What is the efficiency of the LM2596 module?
A: The module has an efficiency of up to 92%, depending on the input voltage, output voltage, and load conditions.

Q: Can I use the LM2596 module for audio applications?
A: Yes, but additional filtering capacitors may be needed to reduce noise and ripple for sensitive audio circuits.

Q: Is the module protected against reverse polarity?
A: No, the LM2596 module does not have built-in reverse polarity protection. Always double-check connections before powering on.
