How to Use 4* AAA Battery Mount: Examples, Pinouts, and Specs

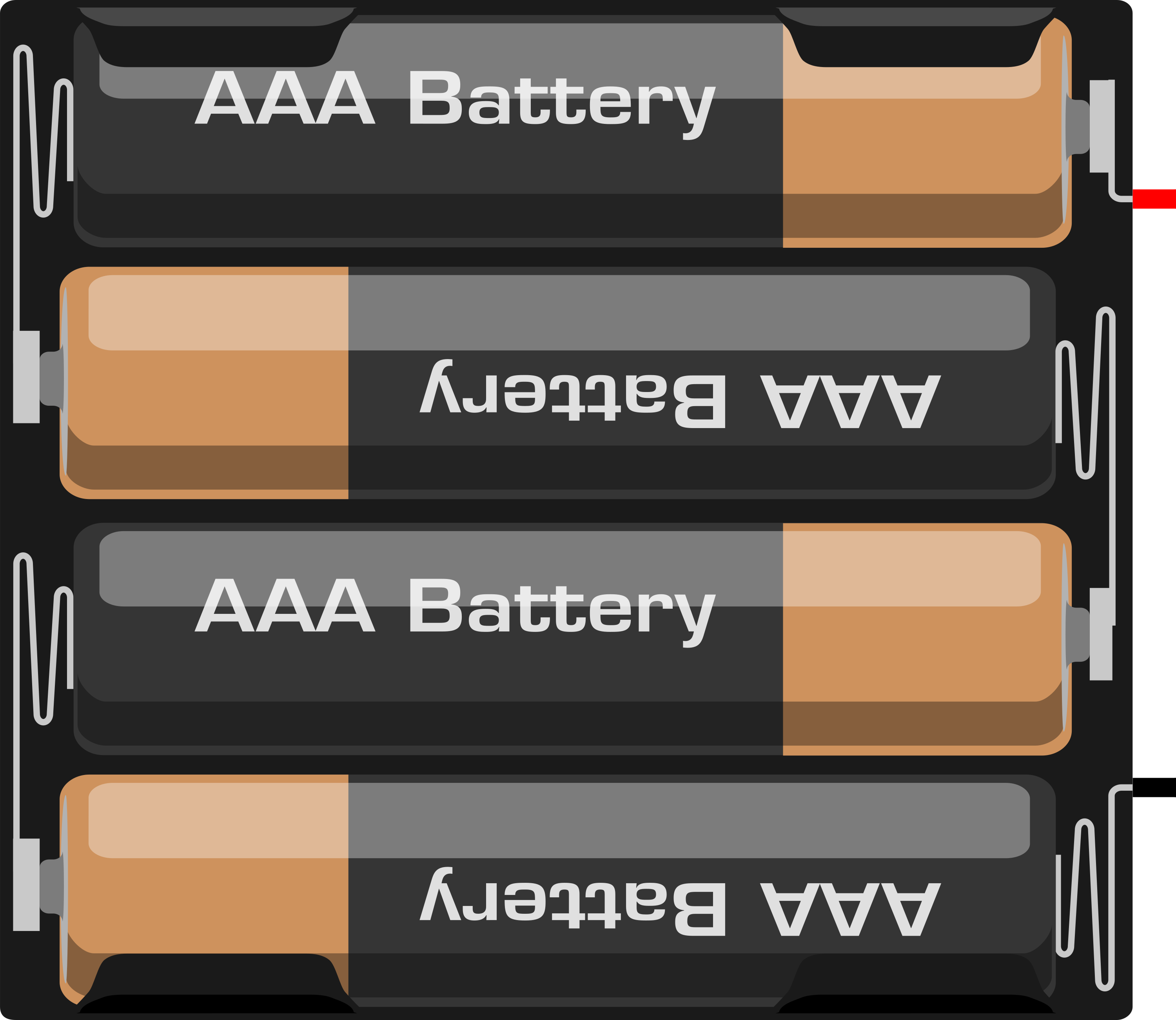

The 4 AAA Battery Mount* (Manufacturer: JJY, Part ID: 4AAA) is a compact and durable holder designed to securely house four AAA batteries. It provides a convenient and portable power source for a wide range of electronic circuits and devices. The mount ensures proper electrical contact and simplifies battery replacement, making it an essential component for prototyping, DIY projects, and low-power electronic systems.

• Powering small electronic devices and circuits
• DIY electronics and prototyping
• Robotics and portable gadgets
• Educational projects and STEM kits
• Backup power for low-power systems

The following table outlines the key technical details of the 4 AAA Battery Mount*:

The 4 AAA Battery Mount* does not have traditional pins but instead uses two wire leads for electrical connections. The table below describes the wire leads:

1. Insert Batteries: Place four AAA batteries into the holder, ensuring correct polarity as indicated on the mount.
2. Connect Wires:
   • Connect the red wire to the positive terminal of your circuit.
   • Connect the black wire to the ground (GND) terminal of your circuit.
3. Secure Connections: Use soldering, a breadboard, or screw terminals to secure the wire connections.
4. Power Your Circuit: Once connected, the battery mount will supply a nominal voltage of 6V (with 1.5V batteries) to your circuit.

• Battery Type: Use only AAA batteries (alkaline, NiMH, or lithium). Mixing battery types or brands is not recommended.
• Voltage Compatibility: Ensure your circuit can handle the 6V output. Use a voltage regulator if your circuit requires a lower voltage.
• Polarity: Double-check the polarity of the connections to avoid damaging your circuit.
• Battery Life: Monitor battery life to prevent over-discharge, especially with rechargeable batteries.
• Heat Management: Avoid short circuits, as they can cause the batteries to overheat.

The 4 AAA Battery Mount* can be used to power an Arduino UNO. Below is an example of how to connect it:

1. Connect the red wire from the battery mount to the VIN pin on the Arduino UNO.
2. Connect the black wire from the battery mount to the GND pin on the Arduino UNO.

Here is a simple Arduino sketch to blink an LED while powered by the battery mount:

// This code blinks an LED connected to pin 13 of the Arduino UNO.
// Ensure the 4* AAA Battery Mount is connected to VIN and GND.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. No Power Output:

   • Ensure the batteries are inserted correctly with proper polarity.
   • Check the wire connections for any loose or broken connections.
   • Verify that the batteries are not depleted.

2. Overheating:

   • Check for short circuits in your wiring.
   • Ensure the circuit is not drawing excessive current beyond the battery capacity.

3. Voltage Drop:

   • If the output voltage is lower than expected, check the battery charge levels.
   • Replace weak or depleted batteries.

4. Corrosion on Contacts:

   • Clean the metal contacts with a small amount of isopropyl alcohol and a cotton swab.

Q: Can I use rechargeable batteries with this mount?
A: Yes, you can use rechargeable AAA batteries (e.g., NiMH or lithium). However, note that the output voltage will vary depending on the battery type (e.g., 1.2V per cell for NiMH).

Q: Is the mount waterproof?
A: No, the mount is not waterproof. Avoid exposing it to moisture or liquids.

Q: Can I use fewer than four batteries?
A: No, the mount is designed for four batteries. Using fewer batteries will result in an incomplete circuit and no output.

Q: What is the maximum current this mount can handle?
A: The maximum current depends on the batteries used. Refer to the battery specifications for current ratings.

By following this documentation, you can effectively use the 4 AAA Battery Mount* in your electronic projects.
