The circuit consists of a Raspberry Pi 5 with no additional electrical connections or code, suggesting it is either a placeholder for future development or a standalone component without any external interfacing in this configuration.

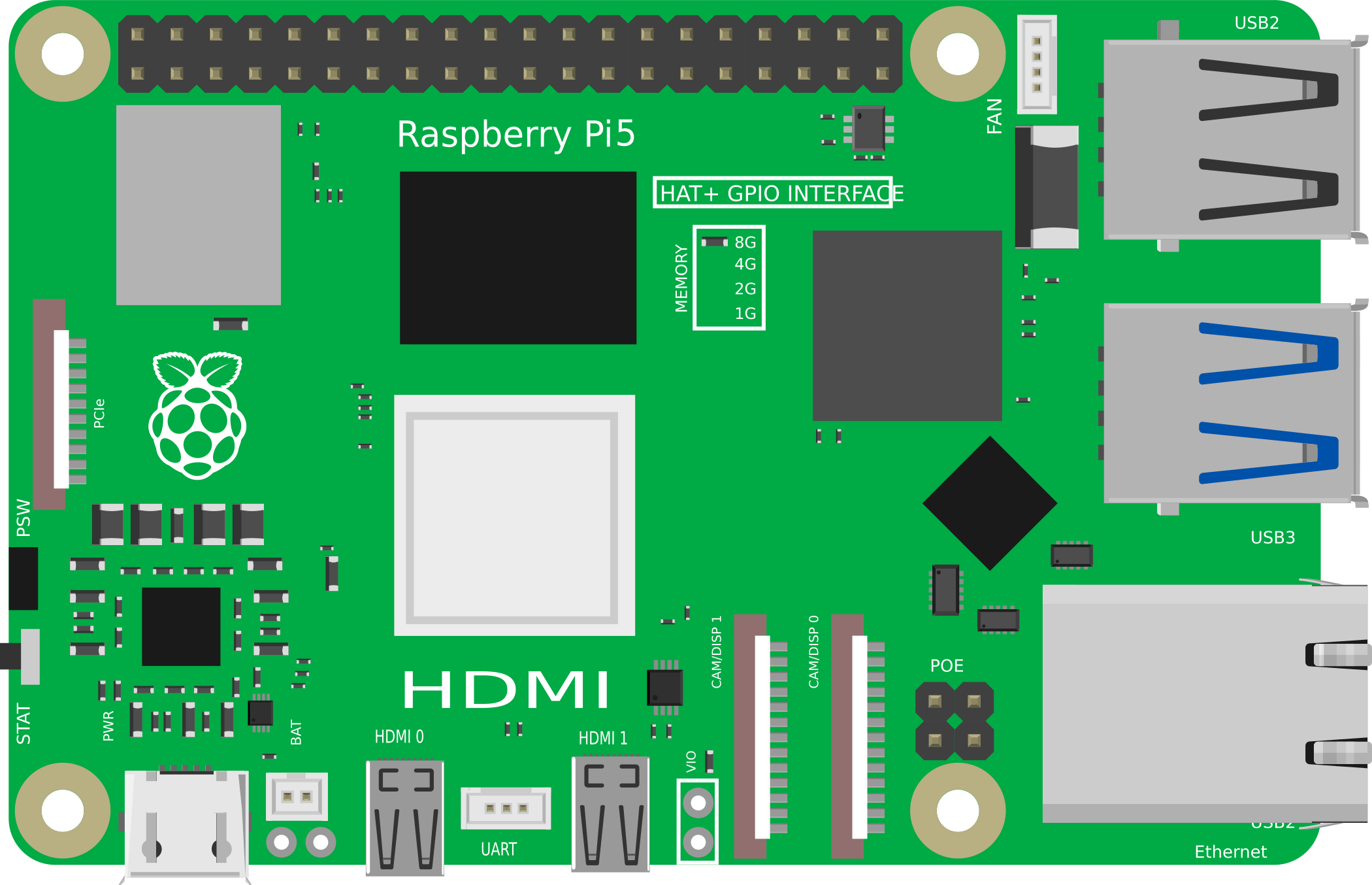

The Raspberry Pi 5 is a compact, affordable single-board computer designed for a wide range of applications. It features a powerful quad-core processor, enhanced graphics capabilities, and multiple connectivity options. This versatile device is ideal for projects such as Internet of Things (IoT) devices, robotics, media centers, and educational tools. Its small form factor and robust performance make it a popular choice for hobbyists, educators, and professionals alike.

The circuit consists of a Raspberry Pi 5 with no additional electrical connections or code, suggesting it is either a placeholder for future development or a standalone component without any external interfacing in this configuration.

This circuit integrates a Raspberry Pi 5 with various peripherals including an 8MP 3D stereo camera, an AI Hat, a BMP388 sensor, a 16x2 I2C LCD, and an Adafruit Ultimate GPS module. The Raspberry Pi serves as the central processing unit, interfacing with the camera for image capture, the AI Hat for AI processing, the BMP388 for environmental sensing, the LCD for display, and the GPS module for location tracking, with a USB Serial TTL for serial communication.

This circuit connects a Raspberry Pi 5 to a Raspberry Pi camera via the Camera 1 interface, enabling the Raspberry Pi to capture and process images or video from the camera.

This circuit integrates a Raspberry Pi 5 with various peripherals including an OV7670 camera, a BMI160 accelerometer/gyro sensor, and a 2.42 inch OLED display. It also includes a red LED and a breadboard power supply module, enabling the Raspberry Pi to interface with the sensors and display for data acquisition and visualization.
The Raspberry Pi 5 offers significant improvements over its predecessors, providing enhanced performance and connectivity. Below are the key technical details:
The Raspberry Pi 5 features a 40-pin GPIO header, which is backward-compatible with earlier Raspberry Pi models. Below is the pinout:
| Pin Number | Pin Name | Functionality |
|---|---|---|
| 1 | 3.3V Power | Power supply (3.3V) |
| 2 | 5V Power | Power supply (5V) |
| 3 | GPIO2 (SDA1) | I2C Data |
| 4 | 5V Power | Power supply (5V) |
| 5 | GPIO3 (SCL1) | I2C Clock |
| 6 | Ground | Ground |
| 7 | GPIO4 | General-purpose I/O |
| 8 | GPIO14 (TXD) | UART Transmit |
| 9 | Ground | Ground |
| 10 | GPIO15 (RXD) | UART Receive |
| ... | ... | ... (Refer to full GPIO pinout) |
For the complete GPIO pinout, refer to the official Raspberry Pi documentation.
Powering the Raspberry Pi 5:
Connecting Peripherals:
Using GPIO Pins:
Networking:
Below is an example of how to blink an LED using the Raspberry Pi 5 and Python:
# Import the GPIO library and time module
import RPi.GPIO as GPIO
import time
# Set the GPIO mode to BCM (Broadcom pin numbering)
GPIO.setmode(GPIO.BCM)
# Define the GPIO pin connected to the LED
LED_PIN = 18
# Set up the LED pin as an output
GPIO.setup(LED_PIN, GPIO.OUT)
try:
while True:
GPIO.output(LED_PIN, GPIO.HIGH) # Turn the LED on
time.sleep(1) # Wait for 1 second
GPIO.output(LED_PIN, GPIO.LOW) # Turn the LED off
time.sleep(1) # Wait for 1 second
except KeyboardInterrupt:
# Clean up GPIO settings before exiting
GPIO.cleanup()
Save this code as blink.py and run it on the Raspberry Pi using the command:
python3 blink.py
The Raspberry Pi 5 does not boot:
Overheating:
No display output:
GPIO pins not working:
Can I use older Raspberry Pi accessories with the Raspberry Pi 5? Yes, most accessories like cases, power supplies, and HATs are compatible, but verify compatibility for best results.
What operating systems are supported? The Raspberry Pi 5 supports Raspberry Pi OS, Ubuntu, and other Linux-based distributions.
How do I enable Wi-Fi? Configure Wi-Fi during the initial setup or through the Raspberry Pi OS desktop interface.
For additional support, refer to the official Raspberry Pi forums and documentation.
