How to Use sd card module: Examples, Pinouts, and Specs

Introduction

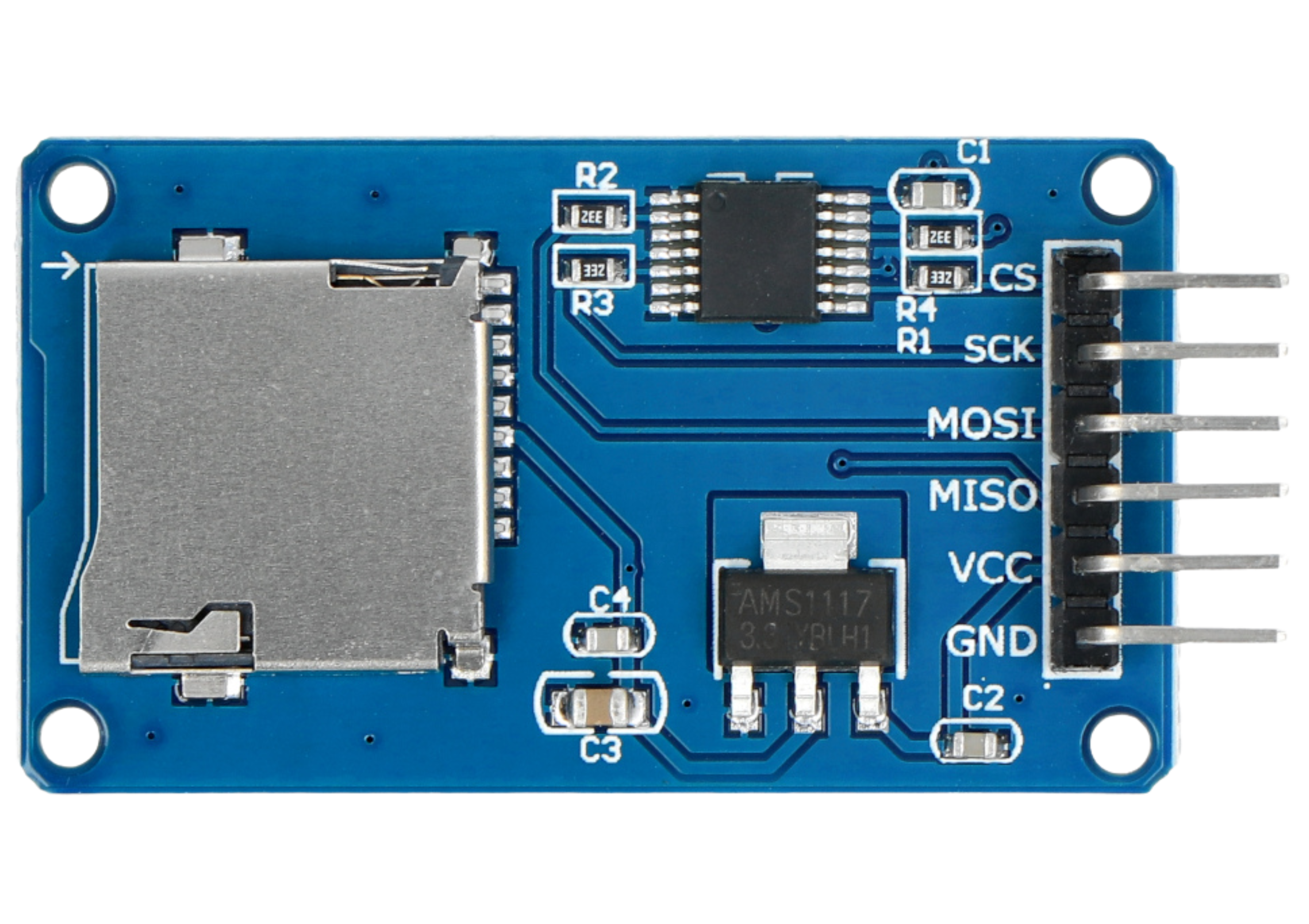

The SD Card Module is a compact and versatile component designed to interface SD cards with microcontrollers. It enables the storage and retrieval of data, making it ideal for applications requiring large amounts of non-volatile memory. This module is commonly used in data logging, multimedia storage, and file management systems. Its ease of use and compatibility with popular microcontrollers like Arduino make it a staple in many electronics projects.

Explore Projects Built with sd card module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Arduino UNO SD Card Data Logger

This circuit consists of an Arduino UNO connected to an SD card module. The Arduino provides power and ground to the SD module and interfaces with it using SPI communication through digital pins D10 (CS), D11 (MOSI), D12 (MISO), and D13 (SCK). The setup is intended for reading from or writing to an SD card using the Arduino.

Open Project in Cirkit Designer

Arduino UNO Battery-Powered Data Logger with Micro SD Card Storage

This circuit is designed to interface an Arduino UNO with a Micro SD Card Module for data storage, powered by two 18650 Li-ion batteries through a USB plug and controlled by a rocker switch. The Arduino communicates with the SD card module via SPI protocol and is also connected to the USB plug for potential data transfer or power supply.

Open Project in Cirkit Designer

Heltec LoRa V2 with SD Card Data Logging

This circuit connects an SD card module to a Heltec LoRa V2 microcontroller for data storage and retrieval. The SD module is interfaced with the microcontroller via SPI communication, utilizing the CS, SCK, MOSI, and MISO pins. Power is supplied to the SD module from the microcontroller's 5V output, and both modules share a common ground.

Open Project in Cirkit Designer

ESP32-S3 GPS and Wind Speed Logger with Dual OLED Displays and CAN Bus

This circuit features an ESP32-S3 microcontroller interfaced with an SD card module, two OLED displays, a GPS module, and a CAN bus module. The ESP32-S3 records GPS data to the SD card, displays speed on one OLED, and shows wind speed from the CAN bus on the other OLED, providing a comprehensive data logging and display system.

Open Project in Cirkit Designer

Common Applications:

• Data logging (e.g., temperature, humidity, or sensor data)
• Storing multimedia files (e.g., images, audio, or video)
• File management for embedded systems
• Firmware or configuration file storage

Technical Specifications

Below are the key technical details of the SD Card Module:

Pin Configuration and Descriptions

The SD Card Module typically has 6 pins. Below is the pinout and description:

Usage Instructions

How to Use the SD Card Module in a Circuit

1. Connect the Module to a Microcontroller:

   • Connect the GND pin to the ground of the microcontroller.
   • Connect the VCC pin to the 3.3V or 5V power supply (check your module's specifications).
   • Connect the MISO, MOSI, SCK, and CS pins to the corresponding SPI pins on the microcontroller.

2. Insert an SD Card:

   • Ensure the SD card is formatted to FAT16 or FAT32 before inserting it into the module.

3. Load the Required Libraries:

   • For Arduino, use the SD library, which simplifies communication with the SD card.

4. Write and Test Code:

   • Use example code to initialize the SD card and perform read/write operations.

Important Considerations and Best Practices

• Voltage Levels: Ensure the module is compatible with your microcontroller's voltage levels. Some modules have onboard voltage regulators and level shifters for 5V compatibility.
• File System: Always format the SD card to FAT16 or FAT32 before use.
• SPI Speed: Use appropriate SPI clock speeds to avoid communication errors.
• Avoid Hot-Swapping: Do not insert or remove the SD card while the module is powered to prevent damage.

Example Code for Arduino UNO

Below is an example of how to initialize the SD card and write data to a file:

#include <SPI.h>
#include <SD.h>

// Define the Chip Select (CS) pin for the SD card module
const int chipSelect = 10;

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
  while (!Serial) {
    ; // Wait for the serial port to connect (for native USB boards)
  }

  Serial.println("Initializing SD card...");

  // Check if the SD card is present and can be initialized
  if (!SD.begin(chipSelect)) {
    Serial.println("Card failed, or not present.");
    // Stop further execution if the card cannot be initialized
    while (1);
  }
  Serial.println("Card initialized successfully.");

  // Open a file for writing
  File dataFile = SD.open("example.txt", FILE_WRITE);

  // Check if the file opened successfully
  if (dataFile) {
    dataFile.println("Hello, SD card!"); // Write data to the file
    dataFile.close(); // Close the file to save changes
    Serial.println("Data written to file.");
  } else {
    Serial.println("Error opening file.");
  }
}

void loop() {
  // Nothing to do here
}

Troubleshooting and FAQs

Common Issues and Solutions

1. SD Card Initialization Fails:

   • Cause: Incorrect wiring or incompatible SD card.
   • Solution: Double-check the wiring and ensure the SD card is formatted to FAT16/FAT32.

2. File Not Opening:

   • Cause: Incorrect file name or file system issue.
   • Solution: Ensure the file name is 8.3 format (e.g., example.txt) and the SD card is properly formatted.

3. Data Corruption:

   • Cause: Removing the SD card while writing data.
   • Solution: Always close files after writing and avoid hot-swapping the SD card.

4. High Power Consumption:

   • Cause: SD card module drawing excessive current.
   • Solution: Use a dedicated power supply if the microcontroller cannot provide sufficient current.

FAQs

Q: Can I use a microSD card with this module?
A: Yes, most SD Card Modules support both standard SD and microSD cards with an adapter.

Q: What is the maximum SD card size supported?
A: This depends on the module and library used. Typically, cards up to 32GB (FAT32) are supported.

Q: Can I use multiple SD Card Modules with one microcontroller?
A: Yes, but each module must have a unique Chip Select (CS) pin.

Q: Why is my SD card not detected?
A: Ensure proper wiring, correct voltage levels, and that the SD card is formatted to FAT16/FAT32.

By following this documentation, you can effectively integrate and troubleshoot the SD Card Module in your projects.
