How to Use MCB 1 Phase: Examples, Pinouts, and Specs

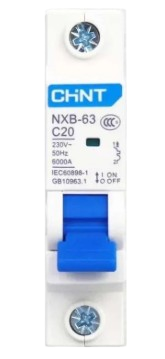

Image of MCB 1 Phase
Cirkit Designer LogoDesign with MCB 1 Phase in Cirkit Designer

Introduction

The MCB 1 Phase (Miniature Circuit Breaker) is an essential safety device designed for single-phase electrical circuits. It provides overcurrent protection by automatically disconnecting the circuit when excessive current flows, preventing damage to electrical equipment and reducing the risk of fire or electrical hazards. MCBs are widely used in residential, commercial, and industrial applications to ensure the safety and reliability of electrical systems.

Explore Projects Built with MCB 1 Phase

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Flush Switch Controlled Lamp Circuit with AC Power Supply and MCB Protection
Image of LAMP CONTROLE WITH MCB: A project utilizing MCB 1 Phase in a practical application
This circuit is designed to control a lamp using a flush switch and is protected by two MCBs (Miniature Circuit Breakers). The AC supply is connected to the input of the first MCB, whose output is connected to the flush switch. The flush switch then controls the power to the lamp, with the second MCB placed in the neutral line for additional safety.
Cirkit Designer LogoOpen Project in Cirkit Designer
LED Indicator System with Power Stabilizer and Measurement Meters
Image of MEMEK: A project utilizing MCB 1 Phase in a practical application
This circuit is a power distribution and monitoring system that includes multiple LEDs for status indication, a stabilizer module, and measurement instruments such as voltmeters and ammeters. It is designed to supply power to a computer and monitor the power quality and current flow, with protection provided by MCBs (Miniature Circuit Breakers).
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Home Energy System with Automatic Transfer Switch and Battery Backup
Image of CDP: A project utilizing MCB 1 Phase in a practical application
This circuit is a solar power system with an automatic transfer switch (ATS) that manages power from both a solar panel and an AC supply. The solar panel charges a battery through a solar charge controller, and the power inverter converts the stored DC power to AC, which is then distributed through an MCB to a socket. The ATS ensures seamless switching between solar and AC power sources.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Battery Charging System with DC-DC Converter
Image of TA1: A project utilizing MCB 1 Phase in a practical application
This circuit is a solar power system that uses two solar panels connected through MCBs to a solar charge controller. The charge controller manages the charging of a 12V battery and powers a DC-DC converter, which provides a regulated output voltage.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with MCB 1 Phase

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of LAMP CONTROLE WITH MCB: A project utilizing MCB 1 Phase in a practical application
Flush Switch Controlled Lamp Circuit with AC Power Supply and MCB Protection
This circuit is designed to control a lamp using a flush switch and is protected by two MCBs (Miniature Circuit Breakers). The AC supply is connected to the input of the first MCB, whose output is connected to the flush switch. The flush switch then controls the power to the lamp, with the second MCB placed in the neutral line for additional safety.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of MEMEK: A project utilizing MCB 1 Phase in a practical application
LED Indicator System with Power Stabilizer and Measurement Meters
This circuit is a power distribution and monitoring system that includes multiple LEDs for status indication, a stabilizer module, and measurement instruments such as voltmeters and ammeters. It is designed to supply power to a computer and monitor the power quality and current flow, with protection provided by MCBs (Miniature Circuit Breakers).
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of CDP: A project utilizing MCB 1 Phase in a practical application
Solar-Powered Home Energy System with Automatic Transfer Switch and Battery Backup
This circuit is a solar power system with an automatic transfer switch (ATS) that manages power from both a solar panel and an AC supply. The solar panel charges a battery through a solar charge controller, and the power inverter converts the stored DC power to AC, which is then distributed through an MCB to a socket. The ATS ensures seamless switching between solar and AC power sources.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of TA1: A project utilizing MCB 1 Phase in a practical application
Solar-Powered Battery Charging System with DC-DC Converter
This circuit is a solar power system that uses two solar panels connected through MCBs to a solar charge controller. The charge controller manages the charging of a 12V battery and powers a DC-DC converter, which provides a regulated output voltage.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Protection of household electrical circuits (e.g., lighting, outlets)
  • Safeguarding industrial equipment from overcurrent or short circuits
  • Use in distribution boards for single-phase systems
  • Overload and short-circuit protection in small appliances and machinery

Technical Specifications

The following table outlines the key technical specifications of the MCB 1 Phase:

Parameter Specification
Rated Voltage 230V AC
Rated Current 6A, 10A, 16A, 20A, 32A (varies by model)
Breaking Capacity 6kA
Number of Poles 1 (Single Phase)
Tripping Curve B, C, or D (depending on application)
Frequency 50/60 Hz
Operating Temperature -5°C to +55°C
Mounting Type DIN Rail (35mm standard)
Housing Material Flame-retardant thermoplastic
Compliance Standards IEC 60898-1, IS/IEC 60947-2

Pin Configuration and Descriptions

The MCB 1 Phase does not have traditional pins but instead features terminal connections for input and output wiring. The table below describes these terminals:

Terminal Description
Line (Input) Connects to the incoming live wire from the power source.
Load (Output) Connects to the outgoing live wire to the load (e.g., appliances).
Neutral Not applicable for single-pole MCBs.

Usage Instructions

How to Use the MCB 1 Phase in a Circuit

  1. Mounting the MCB: Secure the MCB onto a standard 35mm DIN rail in the distribution board.
  2. Wiring:
    • Connect the incoming live wire to the Line (Input) terminal.
    • Connect the outgoing live wire to the Load (Output) terminal.
    • Ensure all connections are tight and secure to avoid loose contacts.
  3. Power On:
    • Switch the MCB to the "ON" position to allow current flow.
    • The MCB will automatically trip to the "OFF" position if an overcurrent or short circuit occurs.
  4. Resetting After a Trip:
    • Identify and resolve the cause of the overcurrent or short circuit.
    • Switch the MCB back to the "ON" position to restore power.

Important Considerations and Best Practices

  • Select the Correct Rating: Choose an MCB with a rated current and tripping curve suitable for your application.
  • Avoid Overloading: Ensure the connected load does not exceed the MCB's rated current.
  • Proper Installation: Always follow local electrical codes and standards during installation.
  • Periodic Inspection: Regularly inspect the MCB for signs of wear, damage, or loose connections.
  • Do Not Bypass: Never bypass the MCB, as this compromises the safety of the circuit.

Example: Connecting an MCB to an Arduino UNO Circuit

While MCBs are not directly connected to microcontrollers like Arduino UNO, they can be used to protect the power supply circuit feeding the Arduino. For example:

  1. Use an MCB with a suitable current rating (e.g., 6A) to protect the power supply line.
  2. Connect the MCB's Line (Input) terminal to the live wire from the power source.
  3. Connect the MCB's Load (Output) terminal to the input of the Arduino's power supply.
// Example Arduino code to monitor power status using a digital input pin
const int powerStatusPin = 2; // Pin connected to a power status indicator circuit

void setup() {
  pinMode(powerStatusPin, INPUT); // Set the pin as input
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int powerStatus = digitalRead(powerStatusPin); // Read the power status
  if (powerStatus == HIGH) {
    Serial.println("Power is ON"); // Print message if power is ON
  } else {
    Serial.println("Power is OFF"); // Print message if power is OFF
  }
  delay(1000); // Wait for 1 second before checking again
}

Note: The above code assumes a power status indicator circuit (e.g., an LED or relay) is used to signal whether the MCB-protected circuit is powered.

Troubleshooting and FAQs

Common Issues Users Might Face

  1. MCB Trips Frequently:

    • Cause: Overloaded circuit or short circuit.
    • Solution: Reduce the load or identify and fix the short circuit.
  2. MCB Does Not Trip During Overcurrent:

    • Cause: Faulty MCB or incorrect rating.
    • Solution: Replace the MCB with a properly rated one.
  3. Loose Connections:

    • Cause: Improperly tightened terminal screws.
    • Solution: Ensure all connections are secure and properly tightened.
  4. MCB Fails to Reset:

    • Cause: Persistent fault in the circuit.
    • Solution: Inspect the circuit for faults and resolve them before resetting the MCB.

FAQs

Q1: Can I use an MCB 1 Phase for a three-phase system?
A1: No, the MCB 1 Phase is designed specifically for single-phase circuits. For three-phase systems, use a three-pole or four-pole MCB.

Q2: How do I choose the correct tripping curve (B, C, or D)?
A2:

  • Curve B: For residential or light commercial loads with low inrush currents (e.g., lighting).
  • Curve C: For general-purpose loads with moderate inrush currents (e.g., motors).
  • Curve D: For industrial loads with high inrush currents (e.g., transformers).

Q3: Can I install an MCB without professional help?
A3: It is recommended to have a licensed electrician install the MCB to ensure compliance with safety standards and local regulations.

Q4: What is the lifespan of an MCB?
A4: The lifespan depends on the number of operations and environmental conditions. Typically, an MCB can last for 10,000 to 20,000 operations under normal conditions.
