How to Use RGB LED Module: Examples, Pinouts, and Specs

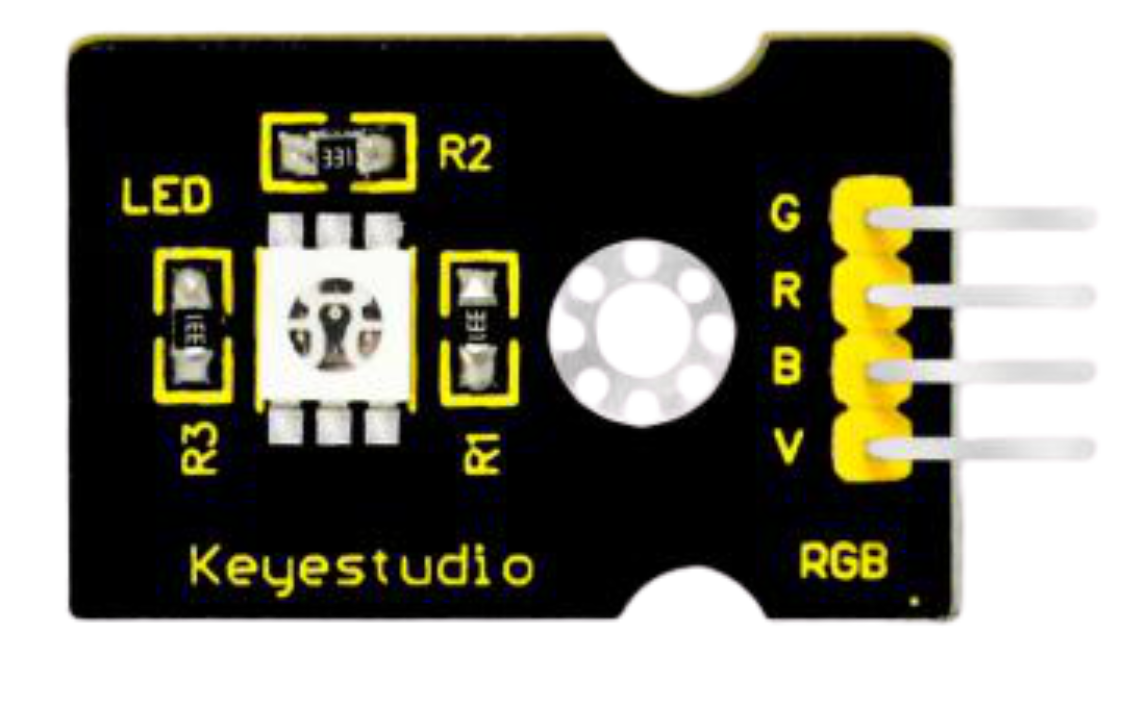

Image of RGB LED Module
Cirkit Designer LogoDesign with RGB LED Module in Cirkit Designer

Introduction

The Keyestudio RGB LED Module (Part ID: Ks0032) is a versatile electronic component that integrates red, green, and blue LEDs into a single module. By adjusting the intensity of each LED, users can create a wide spectrum of colors, making it ideal for applications requiring dynamic lighting effects. This module is commonly used in decorative lighting, status indicators, displays, and DIY electronics projects.

The module is designed for ease of use, with three control pins for the LEDs and a common cathode (GND). It is compatible with microcontrollers like Arduino, Raspberry Pi, and other development boards, making it a popular choice for hobbyists and professionals alike.

Explore Projects Built with RGB LED Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO Bluetooth-Controlled RGB LED Module
Image of bluetooth_RGBLED: A project utilizing RGB LED Module in a practical application
This circuit consists of an Arduino UNO connected to an RGB LED module and a Bluetooth HC-06 module. The Arduino controls the RGB LED colors via digital pins D4, D5, and D6, and communicates with the Bluetooth module through pins D8 and D9, allowing for wireless control of the LED colors.
Cirkit Designer LogoOpen Project in Cirkit Designer
Bluetooth-Controlled RGB LED Strip with Arduino UNO
Image of Arduino Uno BlueCoLight: A project utilizing RGB LED Module in a practical application
This circuit uses an Arduino UNO to control an RGB LED strip via a Bluetooth connection established with an HC-05 Bluetooth module. The Arduino receives commands through the Bluetooth module and adjusts the colors of the LED strip by driving the respective color channels (Red, Green, Blue) connected to its digital pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi Pico W Controlled RGB LED with Joystick Interaction
Image of Snap Project #2: A project utilizing RGB LED Module in a practical application
This circuit features a Raspberry Pi Pico W microcontroller connected to a KY-023 Dual Axis Joystick Module and an RGB LED with individual resistors on each color channel. The joystick's analog outputs (VRx and VRy) are read by the microcontroller to control the color and brightness of the RGB LED in a dynamic fashion, as defined by the embedded Python code. The code implements a color-changing sequence that responds to the joystick's position, creating an interactive lighting system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi Pico W Controlled RGB LED with Joystick Interaction
Image of Snap Project #5: A project utilizing RGB LED Module in a practical application
This circuit features a Raspberry Pi Pico W microcontroller interfaced with a KY-023 Dual Axis Joystick Module and a four-pin RGB LED. The joystick's position controls the color of the RGB LED through PWM signals, with resistors limiting current to the LED's cathodes and a capacitor potentially used for debouncing the joystick's switch. The embedded code cycles through color sequences based on the joystick's Y-axis position, creating a dynamic lighting effect.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with RGB LED Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of bluetooth_RGBLED: A project utilizing RGB LED Module in a practical application
Arduino UNO Bluetooth-Controlled RGB LED Module
This circuit consists of an Arduino UNO connected to an RGB LED module and a Bluetooth HC-06 module. The Arduino controls the RGB LED colors via digital pins D4, D5, and D6, and communicates with the Bluetooth module through pins D8 and D9, allowing for wireless control of the LED colors.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Arduino Uno BlueCoLight: A project utilizing RGB LED Module in a practical application
Bluetooth-Controlled RGB LED Strip with Arduino UNO
This circuit uses an Arduino UNO to control an RGB LED strip via a Bluetooth connection established with an HC-05 Bluetooth module. The Arduino receives commands through the Bluetooth module and adjusts the colors of the LED strip by driving the respective color channels (Red, Green, Blue) connected to its digital pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Snap Project #2: A project utilizing RGB LED Module in a practical application
Raspberry Pi Pico W Controlled RGB LED with Joystick Interaction
This circuit features a Raspberry Pi Pico W microcontroller connected to a KY-023 Dual Axis Joystick Module and an RGB LED with individual resistors on each color channel. The joystick's analog outputs (VRx and VRy) are read by the microcontroller to control the color and brightness of the RGB LED in a dynamic fashion, as defined by the embedded Python code. The code implements a color-changing sequence that responds to the joystick's position, creating an interactive lighting system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Snap Project #5: A project utilizing RGB LED Module in a practical application
Raspberry Pi Pico W Controlled RGB LED with Joystick Interaction
This circuit features a Raspberry Pi Pico W microcontroller interfaced with a KY-023 Dual Axis Joystick Module and a four-pin RGB LED. The joystick's position controls the color of the RGB LED through PWM signals, with resistors limiting current to the LED's cathodes and a capacitor potentially used for debouncing the joystick's switch. The embedded code cycles through color sequences based on the joystick's Y-axis position, creating a dynamic lighting effect.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

  • Manufacturer: Keyestudio
  • Part ID: Ks0032
  • Operating Voltage: 3.3V to 5V
  • Current Consumption: ~20mA per LED (typical)
  • LED Type: Common cathode RGB LED
  • Dimensions: 25mm x 15mm x 10mm
  • Interface: 4 pins (R, G, B, GND)
  • Color Control: PWM (Pulse Width Modulation)

Pin Configuration and Descriptions

The RGB LED Module has four pins, as described in the table below:

Pin Label Description Connection
1 R Controls the red LED (active HIGH) Connect to PWM pin on MCU
2 G Controls the green LED (active HIGH) Connect to PWM pin on MCU
3 B Controls the blue LED (active HIGH) Connect to PWM pin on MCU
4 GND Common cathode (ground) Connect to GND on MCU

Usage Instructions

How to Use the RGB LED Module in a Circuit

  1. Power Supply: Connect the GND pin of the module to the ground of your power source or microcontroller. Ensure the operating voltage is between 3.3V and 5V.
  2. Control Pins: Connect the R, G, and B pins to PWM-capable pins on your microcontroller. This allows you to control the brightness of each LED and mix colors.
  3. Resistors: Use current-limiting resistors (typically 220Ω to 330Ω) in series with the R, G, and B pins to prevent excessive current draw and protect the LEDs.
  4. Programming: Use PWM signals to adjust the intensity of each LED. By varying the duty cycle of the PWM signal, you can create different colors.

Important Considerations and Best Practices

  • Current Limiting: Always use appropriate resistors to limit current through the LEDs. Failure to do so may damage the module.
  • PWM Frequency: Ensure the PWM frequency is high enough to avoid visible flickering (typically above 100Hz).
  • Heat Management: Prolonged use at high brightness levels may generate heat. Ensure proper ventilation if used in enclosed spaces.
  • Polarity: Double-check connections to avoid reversing polarity, which can damage the module.

Example Code for Arduino UNO

The following example demonstrates how to control the RGB LED Module using an Arduino UNO. The code cycles through different colors by adjusting the PWM signals.

// Define the pins connected to the RGB LED module
const int redPin = 9;   // PWM pin for red LED
const int greenPin = 10; // PWM pin for green LED
const int bluePin = 11;  // PWM pin for blue LED

void setup() {
  // Set the RGB pins as output
  pinMode(redPin, OUTPUT);
  pinMode(greenPin, OUTPUT);
  pinMode(bluePin, OUTPUT);
}

void loop() {
  // Cycle through colors
  setColor(255, 0, 0);   // Red
  delay(1000);
  setColor(0, 255, 0);   // Green
  delay(1000);
  setColor(0, 0, 255);   // Blue
  delay(1000);
  setColor(255, 255, 0); // Yellow
  delay(1000);
  setColor(0, 255, 255); // Cyan
  delay(1000);
  setColor(255, 0, 255); // Magenta
  delay(1000);
  setColor(255, 255, 255); // White
  delay(1000);
}

// Function to set the color of the RGB LED
void setColor(int red, int green, int blue) {
  analogWrite(redPin, red);   // Set red LED brightness
  analogWrite(greenPin, green); // Set green LED brightness
  analogWrite(bluePin, blue);  // Set blue LED brightness
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. LEDs Not Lighting Up:

    • Cause: Incorrect wiring or missing ground connection.
    • Solution: Verify all connections, especially the GND pin. Ensure the R, G, and B pins are connected to PWM-capable pins on the microcontroller.
  2. Incorrect Colors:

    • Cause: Miswiring of the R, G, and B pins.
    • Solution: Double-check the pin connections and ensure they match the microcontroller's pin assignments in the code.
  3. Flickering LEDs:

    • Cause: Low PWM frequency or unstable power supply.
    • Solution: Increase the PWM frequency in your microcontroller settings. Use a stable power source.
  4. Overheating:

    • Cause: Excessive current through the LEDs.
    • Solution: Use appropriate current-limiting resistors (220Ω to 330Ω).

FAQs

  • Q: Can I use this module with a 3.3V microcontroller?
    A: Yes, the module is compatible with 3.3V systems. Ensure the current-limiting resistors are appropriately chosen.

  • Q: How do I create custom colors?
    A: Use PWM to adjust the brightness of each LED. For example, setting R=128, G=64, and B=255 will create a custom purple shade.

  • Q: Can I control this module without a microcontroller?
    A: Yes, you can use potentiometers or switches to manually control the R, G, and B pins, but a microcontroller provides more precise control.

This concludes the documentation for the Keyestudio RGB LED Module (Ks0032).
