How to Use 1 Channel Relay 5V: Examples, Pinouts, and Specs

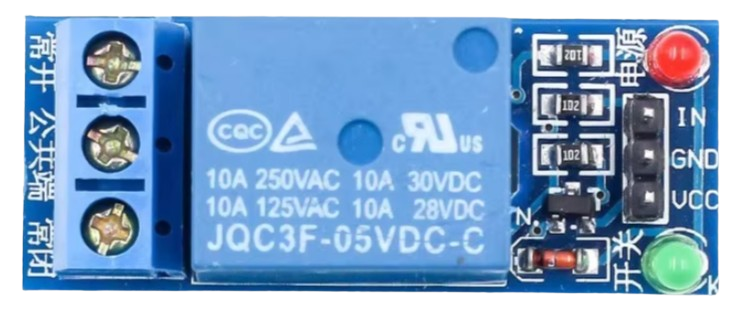

The 1 Channel Relay 5V is an electromechanical switching device that allows a low voltage control signal (e.g., from a microcontroller) to control a higher voltage circuit. This module is widely used in automation, home appliances, and IoT projects to control devices such as lights, fans, and motors. It provides electrical isolation between the control circuit and the high-power circuit, ensuring safety and reliability.

• Home automation systems (e.g., controlling lights or appliances)
• Industrial control systems
• IoT projects for remote device control
• Motor and pump control
• Security systems (e.g., activating alarms or locks)

• Operating Voltage (Control Side): 5V DC
• Trigger Voltage: 3.3V to 5V (compatible with most microcontrollers)
• Relay Type: SPDT (Single Pole Double Throw)
• Maximum Load (Switching Side):
  • AC: 250V at 10A
  • DC: 30V at 10A
• Isolation: Optocoupler-based electrical isolation
• Indicator: LED for relay activation status
• Dimensions: ~50mm x 26mm x 18mm

1. Power the Relay Module:

   • Connect the VCC pin to a 5V DC power source.
   • Connect the GND pin to the ground of the same power source.

2. Connect the Control Signal:

   • Connect the IN pin to a GPIO pin of your microcontroller (e.g., Arduino UNO).
   • When the GPIO pin outputs a LOW signal, the relay will activate.

3. Connect the High Voltage Circuit:

   • Identify the device you want to control (e.g., a light bulb).
   • Connect one terminal of the device to the power source.
   • Connect the other terminal to the NO terminal of the relay.
   • Connect the COM terminal of the relay to the power source ground or neutral.

4. Test the Circuit:

   • When the control signal is LOW, the relay will close the circuit between COM and NO, powering the connected device.
   • When the control signal is HIGH, the relay will open the circuit, turning off the device.

• Electrical Isolation: Ensure the low voltage and high voltage sides are properly isolated to avoid damage to the microcontroller.
• Flyback Diode: If controlling an inductive load (e.g., a motor), use a flyback diode across the load to protect the relay from voltage spikes.
• Power Supply: Use a stable 5V power supply to avoid erratic relay behavior.
• Avoid Overloading: Do not exceed the relay's maximum load ratings (10A at 250V AC or 30V DC).

Below is an example of how to control the relay using an Arduino UNO:

// Define the pin connected to the relay module
const int relayPin = 7;

void setup() {
  // Set the relay pin as an output
  pinMode(relayPin, OUTPUT);

  // Ensure the relay is off initially
  digitalWrite(relayPin, HIGH); // Relay is active LOW
}

void loop() {
  // Turn the relay ON (activates the connected device)
  digitalWrite(relayPin, LOW); // LOW signal activates the relay
  delay(5000); // Keep the relay ON for 5 seconds

  // Turn the relay OFF (deactivates the connected device)
  digitalWrite(relayPin, HIGH); // HIGH signal deactivates the relay
  delay(5000); // Keep the relay OFF for 5 seconds
}

1. Relay Not Activating:

   • Cause: Insufficient control signal voltage.
   • Solution: Ensure the control signal voltage is between 3.3V and 5V.

2. Erratic Relay Behavior:

   • Cause: Unstable power supply or noise in the control signal.
   • Solution: Use a decoupling capacitor (e.g., 100µF) across the VCC and GND pins.

3. Device Not Turning On/Off:

   • Cause: Incorrect wiring on the high voltage side.
   • Solution: Double-check the connections to the COM, NO, and NC terminals.

4. Relay Stuck in One State:

   • Cause: Relay contacts damaged due to overloading.
   • Solution: Replace the relay module and ensure the load does not exceed the rated capacity.

• Q: Can I use this relay with a 3.3V microcontroller like the ESP8266?
  A: Yes, the relay can be triggered with a 3.3V control signal, but ensure the VCC pin is powered with 5V.

• Q: Is the relay safe for controlling AC appliances?
  A: Yes, but ensure proper insulation and follow safety guidelines when working with high voltage.

• Q: Can I control multiple relays with one microcontroller?
  A: Yes, as long as each relay has its own control pin and the microcontroller can handle the current requirements.

• Q: What does the LED on the relay module indicate?
  A: The LED lights up when the relay is activated (control signal is LOW).
