The QFN-24 (Quad Flat No-lead) package is a surface-mount integrated circuit package with 24 pins. It is designed to provide a compact footprint and excellent thermal and electrical performance. The QFN-24 package is widely used in applications requiring high-density mounting, such as consumer electronics, telecommunications, and automotive systems. Its leadless design minimizes parasitic inductance, making it ideal for high-frequency applications.

• Microcontrollers and digital signal processors (DSPs)
• RF modules and wireless communication devices
• Power management ICs
• Sensors and MEMS devices
• High-speed data interfaces

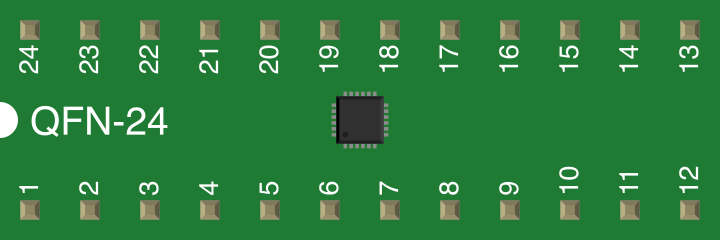

The QFN-24 package has 24 pins arranged symmetrically around the package. The exact pinout depends on the specific IC housed in the QFN-24 package. Below is a generic example of pin configuration:

Note: Always refer to the datasheet of the specific IC in the QFN-24 package for the exact pinout and functionality.

1. PCB Design Considerations:

   • Ensure the PCB footprint matches the QFN-24 package dimensions.
   • Include a thermal pad under the package for heat dissipation. Connect the thermal pad to the ground plane using multiple vias.
   • Use solder mask-defined (SMD) pads for better soldering accuracy.

2. Soldering Guidelines:

   • Use reflow soldering for mounting the QFN-24 package.
   • Follow the recommended reflow temperature profile provided in the IC datasheet.
   • Apply solder paste evenly on the PCB pads and thermal pad.

3. Electrical Connections:

   • Connect power supply pins (VDD) to a stable voltage source with proper decoupling capacitors.
   • Ground pins (GND) should be connected to the PCB ground plane.
   • Route high-frequency signals with controlled impedance to minimize signal loss.

If the QFN-24 package houses a microcontroller, you can interface it with an Arduino UNO for prototyping. Below is an example of Arduino code to communicate with a QFN-24 microcontroller via I2C:

#include <Wire.h> // Include the Wire library for I2C communication

#define QFN24_I2C_ADDRESS 0x40 // Replace with the actual I2C address of the QFN-24 IC

void setup() {
  Wire.begin(); // Initialize I2C communication
  Serial.begin(9600); // Start serial communication for debugging
  Serial.println("Initializing QFN-24 communication...");
}

void loop() {
  Wire.beginTransmission(QFN24_I2C_ADDRESS); // Start communication with QFN-24
  Wire.write(0x01); // Send a command or register address
  Wire.endTransmission(); // End the transmission

  delay(100); // Wait for the QFN-24 to process the command

  Wire.requestFrom(QFN24_I2C_ADDRESS, 1); // Request 1 byte of data
  if (Wire.available()) {
    int data = Wire.read(); // Read the received data
    Serial.print("Received data: ");
    Serial.println(data);
  }

  delay(1000); // Wait before sending the next command
}

Note: Replace QFN24_I2C_ADDRESS and the command/register values with those specific to your QFN-24 IC.

• Always verify the IC's datasheet for specific electrical and thermal requirements.
• Use proper ESD precautions when handling the QFN-24 package.
• Perform X-ray inspection after soldering to ensure proper alignment and solder joint quality.

1. Poor Solder Joints:

   • Cause: Insufficient solder paste or misalignment during reflow.
   • Solution: Ensure proper stencil design and alignment during solder paste application.

2. Overheating:

   • Cause: Inadequate thermal dissipation.
   • Solution: Use a well-designed thermal pad with multiple vias to the ground plane.

3. Signal Integrity Problems:

   • Cause: Improper PCB layout for high-frequency signals.
   • Solution: Use controlled impedance traces and minimize trace lengths.

4. No Communication with Microcontroller:

   • Cause: Incorrect I2C address or wiring.
   • Solution: Double-check the I2C address and connections. Use a logic analyzer to debug.

Q1: Can I hand-solder a QFN-24 package?
A1: Hand-soldering is not recommended due to the package's small size and lack of leads. Use reflow soldering for best results.

Q2: How do I clean flux residue under the QFN-24 package?
A2: Use a no-clean flux to avoid cleaning issues. If cleaning is necessary, use an ultrasonic cleaner with an appropriate solvent.

Q3: What is the purpose of the thermal pad?
A3: The thermal pad improves heat dissipation and provides a low-impedance ground connection. Always connect it to the ground plane.

Q4: Can I use the QFN-24 package for high-frequency applications?
A4: Yes, the QFN-24 package is well-suited for high-frequency applications due to its low parasitic inductance.

By following this documentation, you can effectively integrate and troubleshoot the QFN-24 package in your designs. Always consult the specific IC datasheet for detailed information.
