How to Use ESP32 DevKit V1: Examples, Pinouts, and Specs

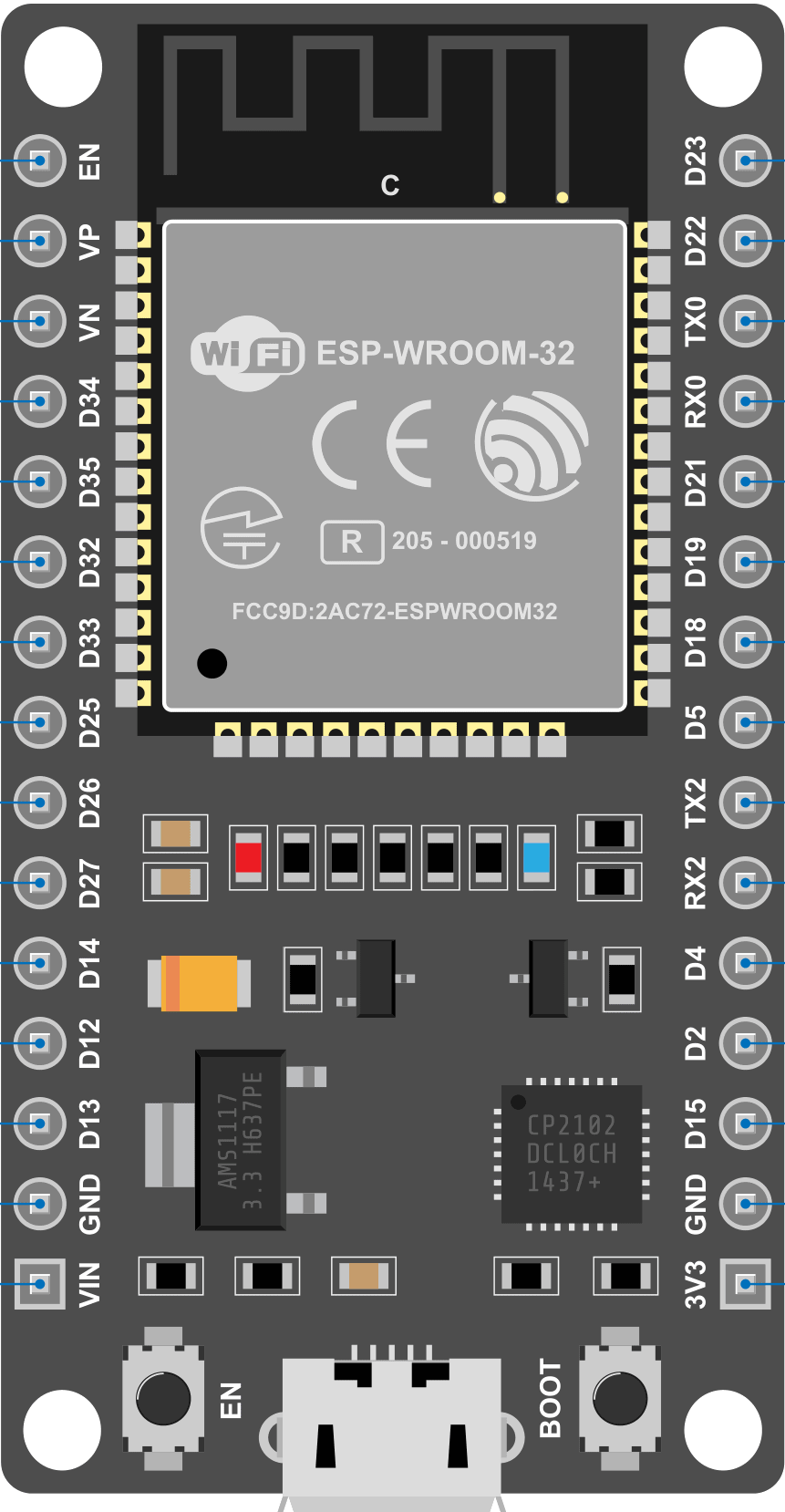

Image of ESP32 DevKit V1
Cirkit Designer LogoDesign with ESP32 DevKit V1 in Cirkit Designer

Introduction

The ESP32 DevKit V1, manufactured by Espressif Systems, is a versatile development board built around the powerful ESP32 chip. It features integrated Wi-Fi and Bluetooth capabilities, making it an excellent choice for Internet of Things (IoT) applications, smart devices, and rapid prototyping. The board is designed to be user-friendly, with a compact form factor and compatibility with popular development environments like Arduino IDE and MicroPython.

Explore Projects Built with ESP32 DevKit V1

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
Image of mark: A project utilizing ESP32 DevKit V1 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 Devkit V1 and OLED Display Bitmap Viewer
Image of Esp32_monochromeimage: A project utilizing ESP32 DevKit V1 in a practical application
This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 1.3" OLED display via I2C communication. The ESP32 initializes the OLED display and renders a predefined bitmap image on it.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP32 DevKit V1 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Agriculture System with LoRa Communication
Image of Soil Monitoring Device: A project utilizing ESP32 DevKit V1 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller as the central processing unit, interfacing with various sensors including a PH Meter, an NPK Soil Sensor, and a Soil Moisture Sensor for environmental data collection. It also includes an EBYTE LoRa E220 module for wireless communication. Power management is handled by a Step Up Boost Power Converter, which is connected to a 12V Battery, stepping up the voltage to power the ESP32 and sensors, with common ground connections throughout the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32 DevKit V1

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of mark: A project utilizing ESP32 DevKit V1 in a practical application
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Esp32_monochromeimage: A project utilizing ESP32 DevKit V1 in a practical application
ESP32 Devkit V1 and OLED Display Bitmap Viewer
This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 1.3" OLED display via I2C communication. The ESP32 initializes the OLED display and renders a predefined bitmap image on it.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP32 DevKit V1 in a practical application
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Soil Monitoring Device: A project utilizing ESP32 DevKit V1 in a practical application
ESP32-Based Smart Agriculture System with LoRa Communication
This circuit features an ESP32 Devkit V1 microcontroller as the central processing unit, interfacing with various sensors including a PH Meter, an NPK Soil Sensor, and a Soil Moisture Sensor for environmental data collection. It also includes an EBYTE LoRa E220 module for wireless communication. Power management is handled by a Step Up Boost Power Converter, which is connected to a 12V Battery, stepping up the voltage to power the ESP32 and sensors, with common ground connections throughout the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable technology
  • Robotics and drones
  • Prototyping for Wi-Fi and Bluetooth-enabled projects
  • Data logging and remote monitoring systems

Technical Specifications

The ESP32 DevKit V1 is equipped with robust hardware and connectivity features. Below are the key technical details:

Key Technical Details

Parameter Specification
Microcontroller ESP32 dual-core Xtensa LX6 processor
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by model)
SRAM 520 KB
Wi-Fi 802.11 b/g/n (2.4 GHz)
Bluetooth Bluetooth 4.2 and BLE
Operating Voltage 3.3V
Input Voltage (VIN) 5V (via USB or external power supply)
GPIO Pins 30 (varies by board version)
ADC Channels 18 (12-bit resolution)
DAC Channels 2 (8-bit resolution)
Communication Interfaces UART, SPI, I2C, I2S, PWM
Power Consumption Ultra-low power (varies by mode)
Dimensions Approx. 54 mm x 27 mm

Pin Configuration and Descriptions

The ESP32 DevKit V1 features a 30-pin layout. Below is the pin configuration:

Pin Number Pin Name Description
1 EN Enable pin (active high, resets the chip)
2 IO23 GPIO23, supports PWM, SPI, I2C
3 IO22 GPIO22, supports PWM, I2C (SCL)
4 IO21 GPIO21, supports PWM, I2C (SDA)
5 GND Ground
6 VIN Input voltage (5V)
7 IO19 GPIO19, supports PWM, SPI
8 IO18 GPIO18, supports PWM, SPI
9 IO17 GPIO17, supports UART
10 IO16 GPIO16, supports UART
... ... ... (remaining pins follow similar descriptions)

For a complete pinout diagram, refer to the official datasheet.

Usage Instructions

How to Use the ESP32 DevKit V1 in a Circuit

  1. Powering the Board:

    • Connect the board to your computer via a micro-USB cable for power and programming.
    • Alternatively, supply 5V to the VIN pin or 3.3V to the 3V3 pin for external power.
  2. Programming the Board:

    • Install the Arduino IDE or another compatible development environment.
    • Add the ESP32 board support package to the IDE.
    • Select "ESP32 Dev Module" as the board type in the IDE settings.
  3. Connecting Peripherals:

    • Use the GPIO pins to connect sensors, actuators, or other peripherals.
    • Ensure that the voltage levels of connected devices are compatible with the ESP32's 3.3V logic.
  4. Uploading Code:

    • Write your code in the IDE and upload it to the board via the USB connection.
    • Press the "BOOT" button on the board if required during the upload process.

Important Considerations and Best Practices

  • Voltage Levels: The GPIO pins operate at 3.3V. Avoid connecting 5V devices directly to the pins without a level shifter.
  • Power Supply: Ensure a stable power supply to avoid unexpected resets or malfunctions.
  • Wi-Fi and Bluetooth: Avoid placing the board near metal objects or enclosures that may interfere with wireless signals.
  • Heat Management: The ESP32 chip may become warm during operation. Ensure adequate ventilation if used in enclosed spaces.

Example Code for Arduino IDE

Below is an example of how to connect the ESP32 DevKit V1 to a Wi-Fi network and blink an LED:

#include <WiFi.h> // Include the Wi-Fi library

const char* ssid = "Your_SSID";       // Replace with your Wi-Fi network name
const char* password = "Your_PASSWORD"; // Replace with your Wi-Fi password
const int ledPin = 2;                 // Built-in LED pin (GPIO2)

void setup() {
  pinMode(ledPin, OUTPUT);            // Set LED pin as output
  Serial.begin(115200);               // Initialize serial communication
  Serial.println("Connecting to Wi-Fi...");

  WiFi.begin(ssid, password);         // Start Wi-Fi connection
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);                       // Wait for connection
    Serial.print(".");
  }
  Serial.println("\nWi-Fi connected!");
}

void loop() {
  digitalWrite(ledPin, HIGH);         // Turn LED on
  delay(1000);                        // Wait for 1 second
  digitalWrite(ledPin, LOW);          // Turn LED off
  delay(1000);                        // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Problem: The board is not detected by the computer.
    Solution:

    • Ensure the USB cable is functional and supports data transfer.
    • Install the correct USB-to-serial driver for the ESP32 DevKit V1.
  2. Problem: Code upload fails with a timeout error.
    Solution:

    • Press and hold the "BOOT" button while uploading the code.
    • Check the selected COM port and board type in the IDE settings.
  3. Problem: Wi-Fi connection fails.
    Solution:

    • Verify the SSID and password in the code.
    • Ensure the Wi-Fi network is within range and operational.
  4. Problem: GPIO pins are not functioning as expected.
    Solution:

    • Check for conflicting pin assignments in the code.
    • Ensure the connected peripherals are compatible with 3.3V logic.

FAQs

  • Q: Can the ESP32 DevKit V1 run on battery power?
    A: Yes, you can power the board using a 3.7V LiPo battery connected to the 3V3 pin or a 5V source to the VIN pin.

  • Q: Is the ESP32 DevKit V1 compatible with MicroPython?
    A: Yes, the board supports MicroPython. You can flash the MicroPython firmware to the ESP32 and use it for development.

  • Q: How do I reset the board?
    A: Press the "EN" button to reset the ESP32 DevKit V1.

  • Q: Can I use the ESP32 DevKit V1 for Bluetooth audio applications?
    A: Yes, the ESP32 supports Bluetooth audio via the A2DP profile, but additional libraries and configurations may be required.
