How to Use relay: Examples, Pinouts, and Specs

A relay is an electromechanical switch that uses an electromagnet to open or close a circuit, allowing control of a high-power circuit with a low-power signal. Relays are widely used in applications where it is necessary to isolate control signals from the high-power circuit or to control multiple circuits with a single signal.

• Home automation systems (e.g., controlling lights or appliances)
• Automotive systems (e.g., controlling headlights or horns)
• Industrial equipment (e.g., motor control or safety systems)
• Microcontroller-based projects (e.g., Arduino or Raspberry Pi projects)
• Power distribution systems

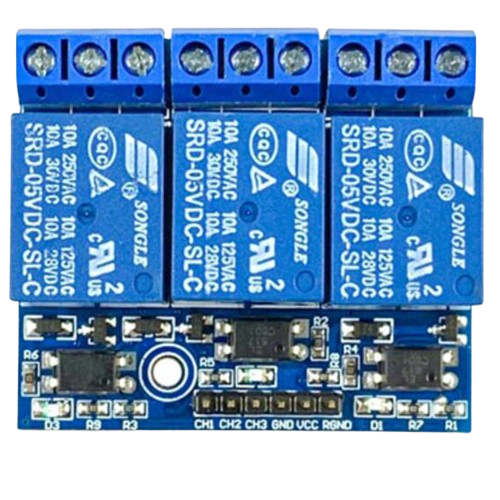

Below are the general technical specifications for a standard single-channel relay module:

• Operating Voltage: 5V DC (common for relay modules)
• Trigger Voltage: 3.3V to 5V (compatible with most microcontrollers)
• Maximum Switching Voltage: 250V AC or 30V DC
• Maximum Switching Current: 10A
• Relay Type: SPDT (Single Pole Double Throw)
• Isolation: Optocoupler isolation (on some modules)
• Indicator: LED to show relay status (ON/OFF)

1. Power the Relay Module: Connect the VCC pin to a 5V power source and the GND pin to ground.
2. Connect the Control Signal: Connect the IN pin to the control signal source (e.g., a microcontroller pin).
3. Connect the Load:
   • Identify the load you want to control (e.g., a light bulb or motor).
   • Connect one terminal of the load to the power source.
   • Connect the other terminal of the load to the NO (Normally Open) terminal of the relay.
   • Connect the COM terminal of the relay to the ground or neutral of the power source.
4. Control the Relay: Send a HIGH or LOW signal to the IN pin to activate or deactivate the relay.

• Isolation: Ensure proper isolation between the control circuit and the high-power circuit to avoid damage or hazards.
• Flyback Diode: If controlling an inductive load (e.g., a motor), use a flyback diode across the load to protect the relay from voltage spikes.
• Power Ratings: Do not exceed the relay's maximum voltage or current ratings to prevent overheating or failure.
• Trigger Voltage: Verify the relay module's trigger voltage compatibility with your control signal source (e.g., Arduino or Raspberry Pi).

Below is an example of how to control a relay module using an Arduino UNO:

// Example: Controlling a relay module with Arduino UNO

const int relayPin = 7; // Define the pin connected to the relay module's IN pin

void setup() {
  pinMode(relayPin, OUTPUT); // Set the relay pin as an output
  digitalWrite(relayPin, LOW); // Ensure the relay is off at startup
}

void loop() {
  digitalWrite(relayPin, HIGH); // Turn the relay ON
  delay(1000); // Keep the relay ON for 1 second
  digitalWrite(relayPin, LOW); // Turn the relay OFF
  delay(1000); // Keep the relay OFF for 1 second
}

• Ensure the relay module is powered with 5V from the Arduino's 5V pin.
• The relay's IN pin should be connected to pin 7 on the Arduino.
• The load (e.g., a light bulb) should be connected to the relay's NO and COM terminals.

1. Relay Not Activating:

   • Cause: Insufficient trigger voltage or incorrect wiring.
   • Solution: Verify the control signal voltage matches the relay's trigger voltage. Check all connections.

2. Relay Stuck in ON or OFF State:

   • Cause: Damaged relay contacts or excessive load current.
   • Solution: Ensure the load does not exceed the relay's maximum current rating. Replace the relay if necessary.

3. Microcontroller Resetting When Relay Activates:

   • Cause: Voltage spikes or insufficient power supply.
   • Solution: Use a flyback diode across inductive loads. Ensure the power supply can handle the relay's current draw.

4. LED Indicator Not Working:

   • Cause: Faulty LED or insufficient power to the relay module.
   • Solution: Check the power supply and connections. Replace the module if the LED is damaged.

• Q: Can I use a 3.3V microcontroller to control a 5V relay module?
  A: Yes, if the relay module supports a 3.3V trigger voltage. Otherwise, use a transistor or level shifter.

• Q: Can I control multiple relays with one microcontroller?
  A: Yes, as long as each relay is connected to a separate GPIO pin and the microcontroller can supply sufficient current.

• Q: Is it safe to use a relay for AC loads?
  A: Yes, but ensure the relay's voltage and current ratings are suitable for the AC load. Always follow safety precautions when working with high voltages.

• Q: Why is my relay module making a clicking sound?
  A: The clicking sound is normal and indicates the relay is switching states. If the sound is continuous, check for a faulty control signal or wiring issue.
