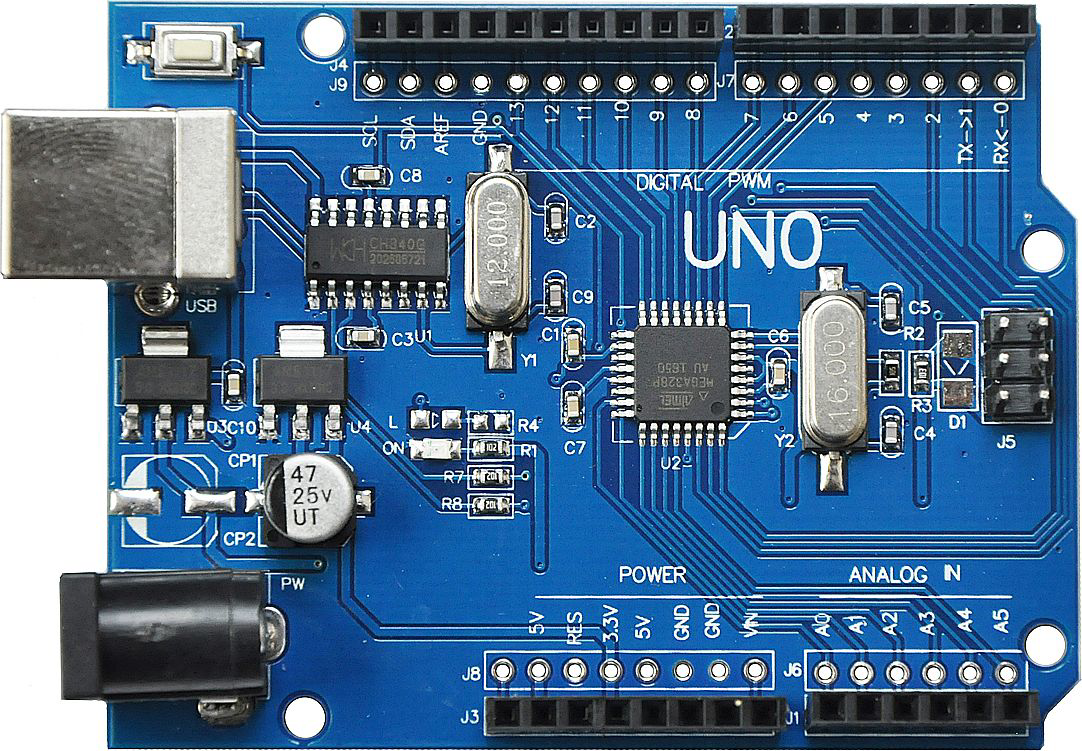

Image of UNO_R3
Cirkit Designer LogoDesign with UNO_R3 in Cirkit Designer

Introduction

The Arduino UNO R3 is a microcontroller board developed by Arduino, based on the ATmega328P microcontroller. It is one of the most popular and versatile boards in the Arduino ecosystem, designed for beginners and professionals alike. The UNO R3 provides a simple and accessible platform for creating interactive electronic projects, making it ideal for prototyping, learning, and experimentation.

Explore Projects Built with UNO_R3

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
Image of wheel: A project utilizing UNO_R3 in a practical application
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Based Smart Water Level Monitoring and Control System
Image of Circuit: A project utilizing UNO_R3 in a practical application
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino RFID Attendance System with SMS Alerts and RTC Synchronization
Image of rfidforattendance: A project utilizing UNO_R3 in a practical application
This circuit is an RFID-based attendance system that uses an Arduino Uno R3 as the central controller. It features an RFID reader for user identification, an RTC module for timekeeping, an LCD display and a buzzer for user feedback, and a SIM800L module for sending SMS notifications. Additionally, it controls access with a relay and uses red/green LEDs to indicate access status.
Cirkit Designer LogoOpen Project in Cirkit Designer
RFID Attendance System with SMS Alerts and RTC Synchronization
Image of Copy of diaram: A project utilizing UNO_R3 in a practical application
This circuit is an RFID-based attendance system that uses an Arduino Uno R3 as the main controller. It features an RFID reader for scanning tags, an RTC module for timekeeping, an LCD display and a buzzer for user feedback, and a SIM800L module for sending SMS notifications. Additionally, it controls access with a relay and provides visual status indicators with red and green LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with UNO_R3

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of wheel: A project utilizing UNO_R3 in a practical application
Arduino Uno R3-Based Voice-Controlled Robot with Servo Actuation and SD Logging
This circuit features an Arduino Uno R3 as the central microcontroller, interfaced with a variety of components. It includes a voice recognition module for audio input commands, an analog thumbstick for manual control, and multiple servos for actuation. Additionally, the circuit integrates an I2C LCD screen for display purposes, an infrared proximity sensor for distance measurement, and a micro SD card module for data storage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Circuit: A project utilizing UNO_R3 in a practical application
Arduino-Based Smart Water Level Monitoring and Control System
This circuit features multiple Arduino Uno R3 boards interfaced with various sensors, actuators, and modules. It includes ultrasonic sensors (HC-SR04) for distance measurement, a servo motor (MG996R) for actuation, a real-time clock (RTC DS3231), a GSM module (SIM 800L V2.0) for cellular communication, and an I2C LCD display for user interface. Additionally, the circuit controls a bilge pump via a 12V relay, powered by a 12V power supply, with AC mains integration for the pump.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of rfidforattendance: A project utilizing UNO_R3 in a practical application
Arduino RFID Attendance System with SMS Alerts and RTC Synchronization
This circuit is an RFID-based attendance system that uses an Arduino Uno R3 as the central controller. It features an RFID reader for user identification, an RTC module for timekeeping, an LCD display and a buzzer for user feedback, and a SIM800L module for sending SMS notifications. Additionally, it controls access with a relay and uses red/green LEDs to indicate access status.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of diaram: A project utilizing UNO_R3 in a practical application
RFID Attendance System with SMS Alerts and RTC Synchronization
This circuit is an RFID-based attendance system that uses an Arduino Uno R3 as the main controller. It features an RFID reader for scanning tags, an RTC module for timekeeping, an LCD display and a buzzer for user feedback, and a SIM800L module for sending SMS notifications. Additionally, it controls access with a relay and provides visual status indicators with red and green LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping: Ideal for testing and developing new electronic designs.
  • IoT Projects: Used in Internet of Things (IoT) applications for connecting sensors and actuators.
  • Robotics: Controls motors, servos, and sensors in robotic systems.
  • Education: Widely used in schools and universities for teaching electronics and programming.
  • Home Automation: Powers smart home devices and automation systems.
  • Wearable Technology: Serves as the core controller for wearable electronics.

Technical Specifications

The Arduino UNO R3 is equipped with a range of features that make it a powerful and flexible tool for electronic projects.

Key Technical Details

Specification Details
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 of which provide PWM output)
Analog Input Pins 6
DC Current per I/O Pin 20 mA
Flash Memory 32 KB (0.5 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connection Type-B USB
Power Jack Barrel jack (2.1mm center-positive)
Dimensions 68.6 mm x 53.4 mm
Weight 25 g

Pin Configuration and Descriptions

The Arduino UNO R3 has a total of 28 pins, including digital, analog, and power pins. Below is a detailed description of the pin layout.

Digital Pins

Pin Number Function Description
0 (RX) Digital I/O, Serial Receive Used for serial communication (UART).
1 (TX) Digital I/O, Serial Transmit Used for serial communication (UART).
2-13 Digital I/O General-purpose digital input/output pins.
3, 5, 6, 9, 10, 11 PWM Output Provide Pulse Width Modulation (PWM) output.

Analog Pins

Pin Number Function Description
A0-A5 Analog Input Read analog signals (0-5V) with 10-bit resolution.

Power Pins

Pin Name Function Description
VIN Input Voltage External power input (7-12V recommended).
5V Regulated 5V Output Powers external components.
3.3V Regulated 3.3V Output Powers low-voltage components.
GND Ground Common ground for the circuit.
RESET Reset Resets the microcontroller.

Usage Instructions

The Arduino UNO R3 is straightforward to use and can be programmed using the Arduino IDE. Below are the steps to get started and some best practices.

How to Use the Component in a Circuit

  1. Connect the Board: Use a USB Type-B cable to connect the Arduino UNO R3 to your computer.
  2. Install the Arduino IDE: Download and install the Arduino IDE from the official Arduino website.
  3. Select the Board and Port:
    • Open the Arduino IDE.
    • Go to Tools > Board and select "Arduino UNO".
    • Go to Tools > Port and select the port to which the board is connected.
  4. Write and Upload Code:
    • Write your program (sketch) in the Arduino IDE.
    • Click the "Upload" button to transfer the code to the board.
  5. Connect Components:
    • Use jumper wires to connect sensors, actuators, and other components to the appropriate pins.
    • Ensure proper power and ground connections.

Important Considerations and Best Practices

  • Power Supply: Use a regulated power supply within the recommended voltage range (7-12V).
  • Pin Current Limits: Do not exceed 20 mA per I/O pin to avoid damaging the microcontroller.
  • Static Protection: Handle the board carefully to prevent damage from electrostatic discharge (ESD).
  • Code Optimization: Optimize your code to make efficient use of memory and processing power.
  • Shield Compatibility: Ensure that any shields you use are compatible with the UNO R3.

Example Code for Arduino UNO R3

The following example demonstrates how to blink an LED connected to pin 13.

// Blink an LED connected to pin 13
// The LED will turn on for 1 second, then off for 1 second, repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues Users Might Face

  1. Board Not Detected by Computer:

    • Ensure the USB cable is properly connected.
    • Check if the correct port is selected in the Arduino IDE.
    • Try using a different USB cable or port.
  2. Code Upload Fails:

    • Verify that the correct board and port are selected in the Arduino IDE.
    • Press the reset button on the board before uploading.
    • Check for conflicting drivers or software.
  3. Components Not Working:

    • Double-check the wiring and connections.
    • Ensure the components are compatible with the Arduino UNO R3.
    • Verify that the code is correctly written and uploaded.

Solutions and Tips for Troubleshooting

  • Reset the Board: Press the reset button to restart the microcontroller.
  • Check Power Supply: Ensure the board is receiving adequate power.
  • Use Serial Monitor: Use the Serial Monitor in the Arduino IDE to debug your code and monitor outputs.
  • Test with Simple Code: Start with a basic sketch (e.g., blinking an LED) to verify that the board is functioning correctly.

By following this documentation, you can effectively use the Arduino UNO R3 for a wide range of electronic projects.
