How to Use DfRobot Gravity: GNSS GPS: Examples, Pinouts, and Specs

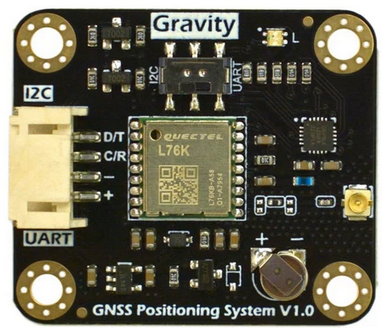

The DfRobot Gravity: GNSS GPS module is a high-precision positioning device designed to provide accurate location data by utilizing multiple satellite systems, including GPS, GLONASS, Galileo, and BeiDou. This module is part of DfRobot's Gravity series, which emphasizes ease of use and compatibility with a wide range of microcontrollers, including Arduino and Raspberry Pi. Its compact design and high sensitivity make it ideal for robotics, outdoor navigation, and geolocation-based projects.

• Autonomous robots and drones requiring precise navigation
• Outdoor tracking and mapping systems
• IoT devices with geolocation capabilities
• Weather balloons and environmental monitoring
• Educational projects involving satellite positioning systems

The following table outlines the key technical details of the DfRobot Gravity: GNSS GPS module:

The module features a 4-pin Gravity interface for easy connection. The pinout is as follows:

1. Connect the Module to a Microcontroller:

   • Use the Gravity 4-pin cable to connect the module to your microcontroller.
   • Ensure the VCC and GND pins are connected to the appropriate power and ground lines.
   • Connect the TX pin of the module to the RX pin of the microcontroller and the RX pin of the module to the TX pin of the microcontroller.

2. Power the Module:

   • Supply a voltage between 3.3V and 5.5V to the VCC pin. The module is compatible with both 3.3V and 5V logic levels.

3. Read Data:

   • The module outputs NMEA sentences (standard GPS data format) via the UART interface. These sentences contain information such as latitude, longitude, altitude, and time.

• Antenna Placement: Ensure the external active antenna has a clear view of the sky for optimal satellite reception. Avoid placing it near metal objects or inside enclosures that block signals.
• Baud Rate Configuration: The default baud rate is 9600 bps. If needed, you can configure the baud rate using specific NMEA commands.
• Power Supply: Use a stable power source to avoid fluctuations that could affect the module's performance.
• Data Parsing: Use libraries or software tools to parse NMEA sentences for extracting specific data fields.

Below is an example of how to use the DfRobot Gravity: GNSS GPS module with an Arduino UNO to read and display GPS data:

#include <SoftwareSerial.h>

// Define the RX and TX pins for the GPS module
SoftwareSerial gpsSerial(4, 3); // RX = Pin 4, TX = Pin 3

void setup() {
  Serial.begin(9600); // Initialize Serial Monitor at 9600 bps
  gpsSerial.begin(9600); // Initialize GPS module at 9600 bps

  Serial.println("Initializing GPS module...");
}

void loop() {
  // Check if data is available from the GPS module
  while (gpsSerial.available()) {
    char gpsData = gpsSerial.read(); // Read one character at a time
    Serial.print(gpsData); // Print the character to the Serial Monitor

    // Note: The GPS module outputs NMEA sentences. Use a GPS library
    // like TinyGPS++ to parse and extract specific data fields.
  }
}

1. No GPS Data Received:

   • Cause: The module may not have a clear view of the sky.
   • Solution: Place the antenna in an open area with minimal obstructions.

2. Incorrect or Inconsistent Data:

   • Cause: Poor satellite signal or interference.
   • Solution: Ensure the antenna is properly connected and positioned. Avoid areas with high electromagnetic interference.

3. Module Not Responding:

   • Cause: Incorrect wiring or baud rate mismatch.
   • Solution: Double-check the connections and ensure the baud rate matches the module's configuration.

4. Slow Position Fix:

   • Cause: Cold start or weak signal.
   • Solution: Allow the module a few minutes to acquire satellite data during the first use.

Q: Can the module work indoors?
A: The module may work indoors near windows, but performance will be significantly reduced compared to outdoor use.

Q: How can I increase the update rate?
A: You can send specific configuration commands to the module to increase the update rate up to 10 Hz. Refer to the module's datasheet for details.

Q: Is the module compatible with 3.3V logic microcontrollers?
A: Yes, the module supports both 3.3V and 5V logic levels, making it compatible with a wide range of microcontrollers.

Q: What is the default output format of the module?
A: The module outputs data in NMEA sentence format by default, which is a standard format for GPS data.

By following this documentation, you can effectively integrate the DfRobot Gravity: GNSS GPS module into your projects and troubleshoot common issues with ease.
