How to Use Photosensitive Module: Examples, Pinouts, and Specs

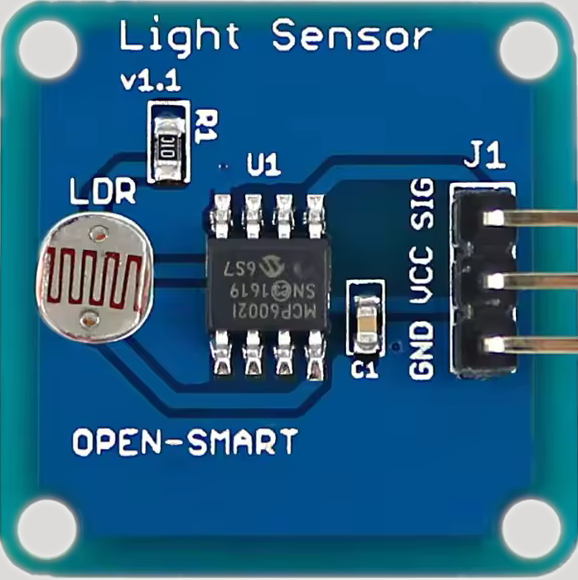

The Photosensitive Module (GL5528), manufactured by Open-Smart, is a device designed to detect light levels and convert them into an electrical signal. This module is based on a light-dependent resistor (LDR) and is widely used in applications such as automatic lighting systems, solar energy systems, and light-sensitive alarms. Its ability to sense ambient light makes it an essential component in projects requiring light intensity measurement or light-triggered automation.

• Automatic streetlights and home lighting systems
• Solar tracking systems
• Light-sensitive alarms and security systems
• Brightness adjustment in electronic displays
• DIY electronics and Arduino projects

The following table outlines the key technical details of the Photosensitive Module (GL5528):

The module has a 3-pin interface, as described in the table below:

1. Power the Module: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground of your circuit.
2. Read the Output:
   • For analog output, connect the OUT pin to an analog input pin of your microcontroller (e.g., Arduino).
   • For digital output, the module includes a potentiometer to adjust the light threshold. When the light intensity crosses this threshold, the OUT pin will output a HIGH or LOW signal.
3. Adjust Sensitivity: Use the onboard potentiometer to set the desired light sensitivity threshold for digital output.

• Power Supply: Ensure the module is powered within its operating voltage range (3.3V to 5V) to avoid damage.
• Placement: Place the module in an area where it can receive unobstructed light for accurate readings.
• Analog vs. Digital Output: Use the analog output for precise light intensity measurements and the digital output for simple light/dark detection.
• Avoid Noise: Use proper grounding and decoupling capacitors in your circuit to minimize electrical noise.

Below is an example of how to connect and use the Photosensitive Module with an Arduino UNO to read light intensity:

// Define the analog pin connected to the module's OUT pin
const int sensorPin = A0; // Analog pin A0
int sensorValue = 0;      // Variable to store the sensor reading

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
  // Read the analog value from the sensor
  sensorValue = analogRead(sensorPin);

  // Print the sensor value to the Serial Monitor
  Serial.print("Light Intensity: ");
  Serial.println(sensorValue);

  delay(500); // Wait for 500ms before the next reading
}

• The sensorValue will range from 0 to 1023, corresponding to the light intensity detected by the module.
• You can adjust the potentiometer on the module to fine-tune the digital output threshold.

1. No Output Signal:

   • Ensure the module is powered correctly (check VCC and GND connections).
   • Verify that the light source is within the module's detection range.

2. Inconsistent Readings:

   • Check for electrical noise in the circuit and use decoupling capacitors if necessary.
   • Ensure the module is not exposed to sudden changes in light or shadows.

3. Digital Output Not Triggering:

   • Adjust the potentiometer to set the correct light threshold.
   • Verify that the light intensity is above or below the set threshold.

4. Analog Output Always at Maximum or Minimum:

   • Ensure the module is not placed in complete darkness or extremely bright light.
   • Check the connections to the analog input pin of the microcontroller.

Q1: Can this module detect specific wavelengths of light?
A1: No, the GL5528 Photosensitive Module is designed to detect general light intensity and is not sensitive to specific wavelengths.

Q2: Can I use this module with a 3.3V microcontroller like ESP32?
A2: Yes, the module operates within a voltage range of 3.3V to 5V, making it compatible with 3.3V microcontrollers.

Q3: How do I know if the module is working?
A3: You can test the module by connecting it to an Arduino and observing the analog readings or the digital output signal when exposed to varying light levels.

Q4: Can this module be used outdoors?
A4: While the module can operate in a wide temperature range, it is not waterproof. Use a protective enclosure for outdoor applications.

By following this documentation, you can effectively integrate the Photosensitive Module (GL5528) into your projects and troubleshoot any issues that arise.
