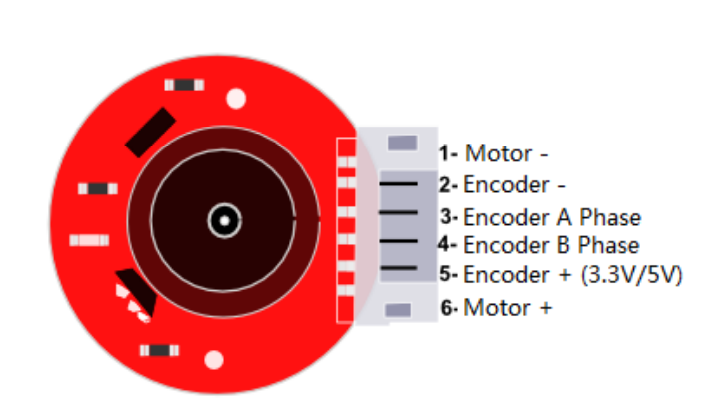

Image of DC motor
Cirkit Designer LogoDesign with DC motor in Cirkit Designer

Introduction

A DC motor is an electromechanical device that converts direct current (DC) electrical energy into mechanical energy, enabling rotational motion. It operates on the principle of electromagnetism, where a magnetic field is generated by current flowing through a coil, causing the motor's rotor to spin. DC motors are widely used due to their simplicity, reliability, and ease of control.

Explore Projects Built with DC motor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered DC Motor Control with LED Indicator
Image of alternator: A project utilizing DC motor in a practical application
This circuit consists of a DC motor powered by a 12V battery, with a diode for protection against reverse voltage and an LED indicator. The LED is connected in parallel with the motor to indicate when the motor is powered.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and L298N Motor Driver Controlled Battery-Powered Robotic Car
Image of ESP 32 BT BOT: A project utilizing DC motor in a practical application
This circuit is a motor control system powered by a 12V battery, utilizing an L298N motor driver to control four DC gearmotors. An ESP32 microcontroller is used to send control signals to the motor driver, enabling precise control of the motors for applications such as a robotic vehicle.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled DC Motor with 12V Battery and Motor Driver
Image of BR30: A project utilizing DC motor in a practical application
This circuit controls a DC motor using an ESP32 microcontroller and a 2-channel motor driver. The ESP32 outputs a PWM signal and a direction control to the motor driver, which in turn drives the motor with power from a 12v battery. The code provided sets up the ESP32 to output a PWM signal at a fixed duty cycle and a high direction signal, causing the motor to spin in one direction at a constant speed.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP8266 NodeMCU Controlled Multi-Motor System with IR Sensors
Image of ABV : A project utilizing DC motor in a practical application
This circuit features an ESP8266 NodeMCU microcontroller interfaced with an L298N DC motor driver to control four DC motors. The motors are powered by a 12V battery, and the system includes three IR sensors for input. The ESP8266 uses its GPIO pins to send control signals to the L298N driver, which in turn controls the direction and speed of the motors based on the logic level signals received from the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DC motor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of alternator: A project utilizing DC motor in a practical application
Battery-Powered DC Motor Control with LED Indicator
This circuit consists of a DC motor powered by a 12V battery, with a diode for protection against reverse voltage and an LED indicator. The LED is connected in parallel with the motor to indicate when the motor is powered.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP 32 BT BOT: A project utilizing DC motor in a practical application
ESP32 and L298N Motor Driver Controlled Battery-Powered Robotic Car
This circuit is a motor control system powered by a 12V battery, utilizing an L298N motor driver to control four DC gearmotors. An ESP32 microcontroller is used to send control signals to the motor driver, enabling precise control of the motors for applications such as a robotic vehicle.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of BR30: A project utilizing DC motor in a practical application
ESP32-Controlled DC Motor with 12V Battery and Motor Driver
This circuit controls a DC motor using an ESP32 microcontroller and a 2-channel motor driver. The ESP32 outputs a PWM signal and a direction control to the motor driver, which in turn drives the motor with power from a 12v battery. The code provided sets up the ESP32 to output a PWM signal at a fixed duty cycle and a high direction signal, causing the motor to spin in one direction at a constant speed.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ABV : A project utilizing DC motor in a practical application
ESP8266 NodeMCU Controlled Multi-Motor System with IR Sensors
This circuit features an ESP8266 NodeMCU microcontroller interfaced with an L298N DC motor driver to control four DC motors. The motors are powered by a 12V battery, and the system includes three IR sensors for input. The ESP8266 uses its GPIO pins to send control signals to the L298N driver, which in turn controls the direction and speed of the motors based on the logic level signals received from the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Robotics: For driving wheels, arms, or other moving parts.
  • Fans and Blowers: To create airflow in cooling systems or ventilation.
  • Electric Vehicles: For propulsion systems in cars, bikes, and scooters.
  • Industrial Automation: In conveyor belts, pumps, and actuators.
  • Toys: To power small moving parts in remote-controlled cars and other devices.

Technical Specifications

Below are the general technical specifications for a typical DC motor. Note that actual values may vary depending on the specific model and manufacturer.

Parameter Specification
Operating Voltage 3V to 24V DC (varies by model)
Rated Current 100mA to 2A (depending on load)
Stall Current Up to 10A (varies by motor size)
Speed 1000 to 10,000 RPM (no load)
Torque 0.1 to 10 Nm (varies by model)
Power Output 0.1W to 100W
Motor Type Brushed or Brushless DC
Shaft Diameter 2mm to 6mm
Dimensions Varies (e.g., 25mm x 20mm for small motors)

Pin Configuration and Descriptions

DC motors typically have two terminals for electrical connections. These terminals are used to control the motor's direction and speed.

Pin Description
+ Positive terminal: Connect to the positive voltage supply.
- Negative terminal: Connect to ground or negative voltage.

For motors with additional features (e.g., encoders or speed sensors), there may be extra pins. Refer to the motor's datasheet for details.

Usage Instructions

How to Use the Component in a Circuit

  1. Power Supply: Ensure the motor is powered within its specified voltage range. Use a DC power source or a battery.
  2. Motor Driver: Use a motor driver IC (e.g., L298N, L293D) or an H-bridge circuit to control the motor. Directly connecting the motor to a microcontroller is not recommended due to high current draw.
  3. Direction Control: Reverse the polarity of the voltage applied to the motor terminals to change the direction of rotation.
  4. Speed Control: Use Pulse Width Modulation (PWM) to control the motor's speed. This can be achieved using a microcontroller like an Arduino.

Important Considerations and Best Practices

  • Current Handling: Ensure the power supply and motor driver can handle the motor's stall current to avoid damage.
  • Heat Dissipation: Motors can heat up during operation. Provide adequate ventilation or heat sinks if necessary.
  • Noise Suppression: Add capacitors (e.g., 0.1µF) across the motor terminals to reduce electrical noise.
  • Load Matching: Avoid overloading the motor beyond its rated torque to prevent stalling or damage.
  • Power Isolation: Use separate power supplies for the motor and control circuitry to prevent noise interference.

Example: Connecting a DC Motor to an Arduino UNO

Below is an example of controlling a DC motor using an Arduino UNO and an L298N motor driver.

Circuit Diagram

  • Connect the motor terminals to the L298N motor driver outputs (OUT1 and OUT2).
  • Connect the L298N's input pins (IN1 and IN2) to Arduino digital pins 9 and 10.
  • Connect the L298N's enable pin (EN1) to Arduino digital pin 3 for PWM control.

Arduino Code

// Define motor control pins
const int IN1 = 9;  // Motor direction pin 1
const int IN2 = 10; // Motor direction pin 2
const int ENA = 3;  // Motor speed control (PWM pin)

void setup() {
  // Set motor control pins as outputs
  pinMode(IN1, OUTPUT);
  pinMode(IN2, OUTPUT);
  pinMode(ENA, OUTPUT);
}

void loop() {
  // Rotate motor clockwise at 50% speed
  digitalWrite(IN1, HIGH);  // Set direction
  digitalWrite(IN2, LOW);
  analogWrite(ENA, 128);    // Set speed (0-255)

  delay(2000); // Run for 2 seconds

  // Rotate motor counterclockwise at full speed
  digitalWrite(IN1, LOW);   // Reverse direction
  digitalWrite(IN2, HIGH);
  analogWrite(ENA, 255);    // Set speed to maximum

  delay(2000); // Run for 2 seconds

  // Stop the motor
  digitalWrite(IN1, LOW);
  digitalWrite(IN2, LOW);
  analogWrite(ENA, 0);      // Set speed to 0

  delay(2000); // Wait for 2 seconds before repeating
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Motor Does Not Spin:

    • Check the power supply voltage and current ratings.
    • Verify connections to the motor driver and ensure the driver is functioning.
    • Ensure the motor is not overloaded or stalled.
  2. Motor Spins in the Wrong Direction:

    • Reverse the polarity of the motor terminals or adjust the control signals (e.g., IN1 and IN2).
  3. Motor Overheats:

    • Reduce the load on the motor.
    • Check for proper ventilation or add a heat sink.
  4. Excessive Noise or Vibration:

    • Add capacitors across the motor terminals to suppress electrical noise.
    • Ensure the motor is securely mounted to reduce mechanical vibration.
  5. Arduino Resets When Motor Starts:

    • Use a separate power supply for the motor to prevent voltage drops affecting the Arduino.

FAQs

Q: Can I connect a DC motor directly to an Arduino?
A: No, the Arduino cannot supply the high current required by a DC motor. Use a motor driver or an H-bridge circuit.

Q: How do I control the speed of a DC motor?
A: Use PWM (Pulse Width Modulation) to vary the voltage applied to the motor, which controls its speed.

Q: What is stall current, and why is it important?
A: Stall current is the maximum current the motor draws when it is not rotating. Ensure your power supply and driver can handle this current to avoid damage.

Q: Can I use a DC motor for precise positioning?
A: DC motors are not ideal for precise positioning. Use a stepper motor or a DC motor with an encoder for such applications.
