How to Use 2 x 18650 in case: Examples, Pinouts, and Specs

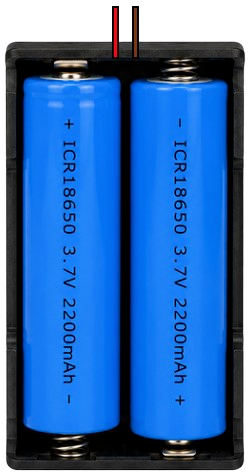

The 2 x 18650 battery holder is a compact and durable enclosure designed to securely hold two 18650 lithium-ion batteries. It provides a convenient way to power electronic circuits and devices, offering a stable and portable power source. This holder is commonly used in DIY electronics, robotics, IoT projects, and portable devices where a reliable power supply is essential.

• Powering Arduino, Raspberry Pi, and other microcontroller-based projects
• Robotics and motorized systems
• Portable electronic devices
• LED lighting systems
• IoT and wireless communication modules

The following table outlines the key technical details of the 2 x 18650 battery holder:

The 2 x 18650 battery holder typically has two wire leads for connection:

Note: Ensure the polarity is correctly matched when connecting the holder to your circuit to avoid damage to components.

1. Insert Batteries:

   • Place two 18650 lithium-ion batteries into the holder, ensuring the polarity matches the markings inside the holder.
   • Verify that the batteries are securely seated to maintain a stable connection.

2. Connect to Circuit:

   • Use the red wire (positive terminal) and black wire (negative terminal) to connect the holder to your circuit.
   • If powering a microcontroller (e.g., Arduino), ensure the voltage matches the input voltage requirements of the device.

3. Voltage Configuration:

   • Check whether the holder is designed for series or parallel configuration:
     • Series Configuration: Provides a combined voltage of 7.4V (3.7V x 2).
     • Parallel Configuration: Provides a combined capacity while maintaining 3.7V.

4. Secure Connections:

   • Use soldering or connectors to ensure a reliable connection between the holder and your circuit.

• Battery Protection: Use batteries with built-in protection circuits to prevent overcharging, over-discharging, or short circuits.
• Voltage Regulation: If your circuit requires a lower voltage, use a voltage regulator (e.g., LM7805 for 5V output).
• Heat Management: Avoid exposing the holder to high temperatures, as this may damage the plastic casing or batteries.
• Polarity Check: Always double-check the polarity of the wires before connecting to avoid damaging your components.

To power an Arduino UNO using the 2 x 18650 battery holder, follow these steps:

1. Insert two 18650 batteries into the holder.
2. Connect the red wire to the VIN pin on the Arduino UNO.
3. Connect the black wire to the GND pin on the Arduino UNO.

Here is a simple Arduino sketch to blink an LED when powered by the battery holder:

// Blink an LED using power from the 2 x 18650 battery holder
const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Note: Ensure the Arduino's input voltage is within the acceptable range (7-12V for VIN).

1. No Power Output:

   • Cause: Batteries are not properly seated or are discharged.
   • Solution: Check the battery orientation and ensure they are fully charged.

2. Overheating:

   • Cause: Short circuit or excessive current draw.
   • Solution: Inspect the circuit for shorts and ensure the load does not exceed the battery's current rating.

3. Voltage Mismatch:

   • Cause: Incorrect configuration (series vs. parallel).
   • Solution: Verify the holder's configuration and ensure it matches your circuit's voltage requirements.

4. Loose Connections:

   • Cause: Poor soldering or loose wire connections.
   • Solution: Re-solder or use secure connectors to improve the connection.

• Q: Can I use rechargeable and non-rechargeable batteries together?
  A: No, always use the same type and capacity of batteries to avoid imbalances and potential damage.

• Q: How do I know if the holder is series or parallel?
  A: Check the wiring inside the holder. Series holders connect the positive terminal of one battery to the negative terminal of the other, while parallel holders connect all positive terminals together and all negative terminals together.

• Q: Can I use this holder outdoors?
  A: The holder is not waterproof. If using outdoors, ensure it is enclosed in a weatherproof case.

By following these guidelines, you can safely and effectively use the 2 x 18650 battery holder in your electronic projects.
