How to Use SSR 40DD: Examples, Pinouts, and Specs

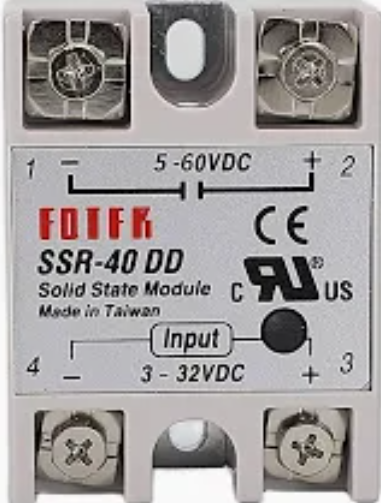

The SSR 40DD is a solid-state relay designed for switching high-power DC loads using low-voltage DC control signals. Unlike mechanical relays, the SSR 40DD operates without moving parts, ensuring high reliability, silent operation, and fast switching. Its compact design and robust performance make it ideal for applications in industrial automation, heating control systems, motor control, and other high-power DC switching scenarios.

• Industrial automation systems
• Heating element control
• DC motor control
• Battery charging systems
• LED lighting systems

1. Control Signal Connection: Connect the control signal (3-32 VDC) to the input terminals (Pin 1 and Pin 2). Ensure the polarity is correct.
2. Load Connection: Connect the DC load to the output terminals (Pin 3 and Pin 4). The load voltage must be within the specified range (5-220 VDC).
3. Power Supply: Ensure the power supply for the load matches the load's voltage and current requirements.
4. Mounting: Securely mount the SSR 40DD on a heat sink or panel to ensure proper heat dissipation during operation.
5. Testing: Apply the control signal to the input terminals and verify that the load is switching on and off as expected.

• Heat Dissipation: The SSR 40DD can generate heat during operation. Use a heat sink or cooling fan to prevent overheating.
• Overcurrent Protection: Use a fuse or circuit breaker to protect the relay and load from overcurrent conditions.
• Polarity: Ensure correct polarity for both input and output connections to avoid damage to the relay.
• Isolation: Maintain proper isolation between the control and load circuits to prevent electrical interference.

The SSR 40DD can be controlled using an Arduino UNO to switch a DC load. Below is an example circuit and code:

• Connect Pin 1 (Input +) of the SSR to Arduino digital pin 9.
• Connect Pin 2 (Input -) of the SSR to Arduino GND.
• Connect the DC load to Pin 3 (Output +) and Pin 4 (Output -) of the SSR.
• Ensure the load's power supply is connected properly.

// Example code to control SSR 40DD with Arduino UNO
// This code toggles the SSR on and off every 1 second

#define SSR_PIN 9  // Define the Arduino pin connected to SSR input

void setup() {
  pinMode(SSR_PIN, OUTPUT);  // Set SSR_PIN as an output
}

void loop() {
  digitalWrite(SSR_PIN, HIGH);  // Turn the SSR on
  delay(1000);                  // Wait for 1 second
  digitalWrite(SSR_PIN, LOW);   // Turn the SSR off
  delay(1000);                  // Wait for 1 second
}

1. Relay Not Switching the Load

   • Cause: Insufficient control voltage or incorrect polarity.
   • Solution: Verify the control voltage is within the 3-32 VDC range and check the polarity of the input connections.

2. Overheating

   • Cause: Inadequate heat dissipation or excessive load current.
   • Solution: Use a heat sink or cooling fan and ensure the load current does not exceed 40 A.

3. Load Not Turning Off

   • Cause: Leakage current in the SSR.
   • Solution: Ensure the load can tolerate the small leakage current (typical for solid-state relays).

4. Control Signal Interference

   • Cause: Electrical noise or insufficient isolation.
   • Solution: Use optocouplers or proper grounding to minimize interference.

Q1: Can the SSR 40DD switch AC loads?
A1: No, the SSR 40DD is designed specifically for DC loads. For AC loads, use an AC-rated solid-state relay.

Q2: What is the maximum switching speed of the SSR 40DD?
A2: The SSR 40DD has a switching speed of ≤ 10 ms, making it suitable for most applications requiring fast switching.

Q3: Do I need an external resistor for the control signal?
A3: No, the SSR 40DD has an internal resistor for current limiting. Ensure the control voltage is within the specified range.

Q4: Can I use the SSR 40DD without a heat sink?
A4: It is not recommended to use the SSR 40DD without a heat sink, especially for high-current loads, as it may overheat and fail.

By following this documentation, users can effectively integrate the SSR 40DD into their projects and troubleshoot common issues.
