How to Use FPC Breakout board 12p: Examples, Pinouts, and Specs

The FPC Breakout Board 12p is a versatile adapter designed to connect flexible printed circuit (FPC) cables to standard pin headers. This breakout board features 12 pins, making it ideal for interfacing FPC cables with breadboards, microcontrollers, or other prototyping tools. It simplifies the process of testing and prototyping circuits that use FPC cables, which are commonly found in displays, sensors, and other compact electronic devices.

• Prototyping circuits with FPC cables
• Interfacing FPC-based displays or sensors with microcontrollers
• Testing and debugging FPC-connected devices
• Creating custom connections for compact electronic designs

The FPC Breakout Board 12p is designed to provide a reliable and easy-to-use interface for FPC cables. Below are its key technical details:

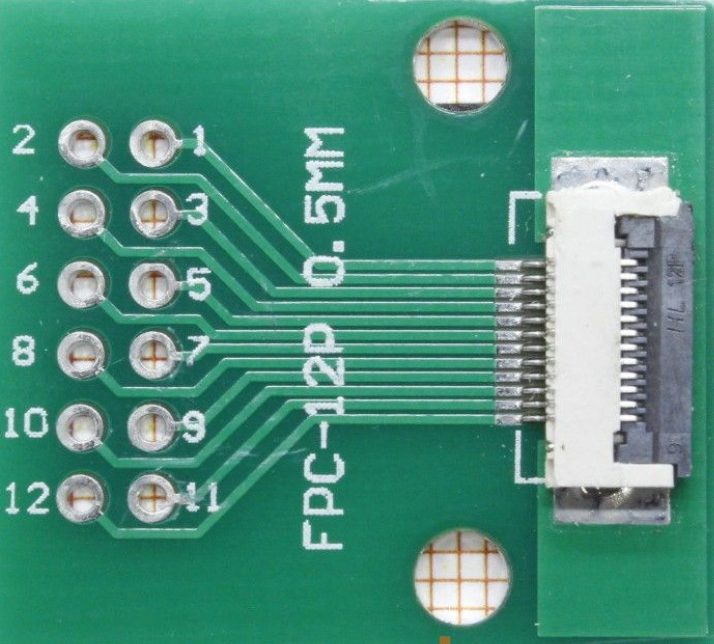

The FPC Breakout Board 12p has a 12-pin FPC connector on one side and a corresponding 12-pin header on the other side. The pinout is as follows:

Note: The exact signal mapping depends on the FPC cable and the connected device.

1. Insert the FPC Cable:

   • Open the ZIF connector by gently lifting the locking tab.
   • Insert the FPC cable into the connector, ensuring the contacts are aligned.
   • Close the locking tab to secure the cable.

2. Connect to a Breadboard or Microcontroller:

   • Use the 2.54 mm pin headers to connect the breakout board to a breadboard or directly to a microcontroller.
   • Ensure proper alignment of the pins to avoid incorrect connections.

3. Power the Circuit:

   • Provide the appropriate voltage (3.3V or 5V) to the connected device based on its specifications.

4. Test and Debug:

   • Verify the connections and test the circuit functionality. Use a multimeter to check continuity if needed.

• Handle with Care: FPC cables are delicate and can be damaged if bent excessively or inserted incorrectly.
• Check Pin Mapping: Ensure the pin mapping of the FPC cable matches the breakout board's pinout.
• Avoid Overvoltage: Do not exceed the voltage rating of the connected device to prevent damage.
• Secure Connections: Ensure the FPC cable is firmly locked in the ZIF connector to avoid intermittent connections.

Below is an example of how to connect the FPC Breakout Board 12p to an Arduino UNO for reading data from an FPC-based sensor.

// Example code for interfacing an FPC-based sensor with Arduino UNO
// Ensure the FPC cable is properly connected to the breakout board

const int sensorPin = A0; // Define the analog pin connected to the sensor
int sensorValue = 0;      // Variable to store the sensor reading

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  pinMode(sensorPin, INPUT); // Set the sensor pin as input
}

void loop() {
  sensorValue = analogRead(sensorPin); // Read the sensor value
  Serial.print("Sensor Value: ");      // Print the sensor value to the serial monitor
  Serial.println(sensorValue);
  delay(500); // Wait for 500ms before the next reading
}

Note: Modify the pin number and code logic based on the specific FPC device being used.

1. FPC Cable Not Detected:

   • Cause: The cable is not properly inserted or the locking tab is not secured.
   • Solution: Reinsert the cable and ensure the locking tab is fully closed.

2. Intermittent Connections:

   • Cause: Loose connections between the breakout board and the breadboard/microcontroller.
   • Solution: Check all connections and ensure the pin headers are firmly seated.

3. Incorrect Signal Mapping:

   • Cause: The FPC cable's pinout does not match the breakout board's pin configuration.
   • Solution: Verify the pinout of the FPC cable and adjust the connections accordingly.

4. No Output from Connected Device:

   • Cause: Incorrect voltage or damaged FPC cable.
   • Solution: Check the voltage requirements of the connected device and inspect the FPC cable for damage.

Q: Can this breakout board be used with 1.0 mm pitch FPC cables?
A: No, this breakout board is designed specifically for 0.5 mm pitch FPC cables.

Q: Is the breakout board compatible with 3.3V and 5V systems?
A: Yes, the breakout board itself is passive and can work with both 3.3V and 5V systems. However, ensure the connected device supports the voltage level.

Q: Can I solder the breakout board directly to a PCB?
A: Yes, the 2.54 mm pin headers can be soldered directly to a PCB for permanent installations.

Q: How do I identify the orientation of the FPC cable?
A: The FPC cable typically has a marking or exposed contacts on one side. Align these contacts with the connector's pins before inserting.
