How to Use PH Meter: Examples, Pinouts, and Specs

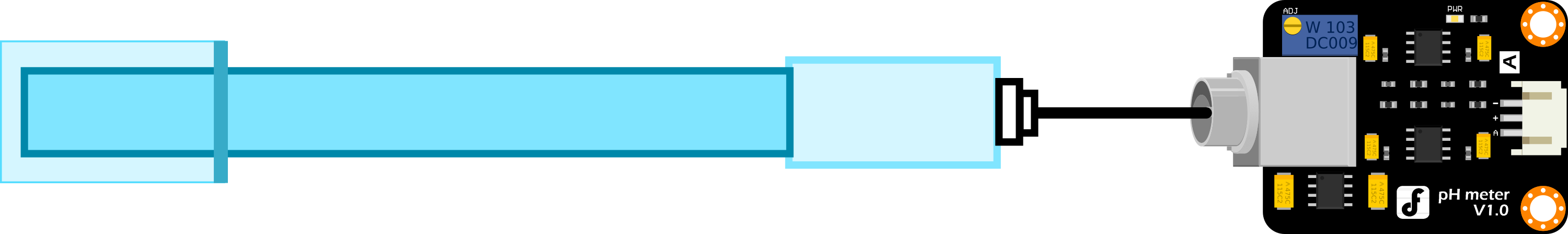

A pH meter is an electronic device used to measure the acidity or alkalinity of a solution, providing a digital readout of the pH level. It is widely used in various fields such as chemistry, biology, agriculture, water treatment, and food processing. The device typically consists of a pH probe and an electronic module that processes the signal from the probe and displays the pH value.

• Monitoring water quality in aquariums, pools, and wastewater treatment plants.
• Soil pH testing for agriculture and gardening.
• Quality control in food and beverage production.
• Laboratory experiments in chemistry and biology.
• Environmental monitoring of natural water bodies.

Below are the general technical specifications for a typical pH meter module:

The pH meter module typically has the following pin configuration:

1. Connect the Module:

   • Connect the VCC pin to a 3.3V or 5V power source.
   • Connect the GND pin to the ground of your circuit.
   • Connect the AO pin to an analog input pin of your microcontroller (e.g., Arduino UNO).

2. Calibrate the pH Meter:

   • Immerse the pH probe in a standard buffer solution with a known pH value (e.g., pH 7.0).
   • Adjust the calibration potentiometer on the module until the output matches the known pH value.
   • Repeat the process with a second buffer solution (e.g., pH 4.0 or pH 10.0) for two-point calibration.

3. Measure pH:

   • Immerse the pH probe in the solution to be tested.
   • Read the analog voltage output from the AO pin and convert it to a pH value using the formula provided in the module's datasheet.

• Always rinse the pH probe with distilled water before and after use to prevent contamination.
• Store the pH probe in a storage solution or buffer solution when not in use to maintain its accuracy and longevity.
• Avoid exposing the probe to extreme temperatures or harsh chemicals that could damage the glass electrode.
• Perform regular calibration to ensure accurate readings, especially if the probe is used frequently or in different solutions.

Below is an example of how to interface a pH meter with an Arduino UNO to measure and display the pH value:

// Define the analog pin connected to the pH meter's AO pin
const int pH_Pin = A0;

// Calibration values (adjust based on your module's datasheet)
const float Voltage_Offset = 0.0; // Adjust for calibration
const float pH_Slope = 3.0;       // Voltage difference per pH unit

void setup() {
  Serial.begin(9600); // Initialize serial communication
  pinMode(pH_Pin, INPUT); // Set the pH pin as input
}

void loop() {
  // Read the analog voltage from the pH meter
  int sensorValue = analogRead(pH_Pin);
  float voltage = sensorValue * (5.0 / 1023.0); // Convert to voltage

  // Calculate the pH value
  float pH = (voltage - Voltage_Offset) * pH_Slope;

  // Print the pH value to the Serial Monitor
  Serial.print("pH Value: ");
  Serial.println(pH);

  delay(1000); // Wait for 1 second before the next reading
}

Note: Adjust the Voltage_Offset and pH_Slope values based on your specific pH meter module and calibration results.

1. Inaccurate Readings:

   • Cause: The pH probe is not calibrated.
   • Solution: Perform a two-point calibration using standard buffer solutions.

2. No Output Signal:

   • Cause: Loose or incorrect wiring.
   • Solution: Check all connections and ensure the module is powered correctly.

3. Fluctuating Readings:

   • Cause: Electrical noise or unstable power supply.
   • Solution: Use a decoupling capacitor near the module's power pins and ensure a stable power source.

4. Probe Not Responding:

   • Cause: The pH probe is dry or damaged.
   • Solution: Soak the probe in a storage solution for several hours. Replace the probe if it is damaged.

Q1: How often should I calibrate the pH meter?
A1: It is recommended to calibrate the pH meter before each use or at least once a week for frequent use.

Q2: Can I use the pH meter for high-temperature solutions?
A2: Most pH probes are designed for temperatures up to 50°C. For higher temperatures, use a specialized high-temperature probe.

Q3: What should I do if the probe dries out?
A3: Soak the probe in a storage solution for several hours to rehydrate it. Avoid letting the probe dry out in the future.

Q4: Can I use tap water for calibration?
A4: No, always use standard buffer solutions for accurate calibration. Tap water may have unknown pH and impurities.

By following this documentation, you can effectively use a pH meter for accurate and reliable pH measurements in various applications.
