How to Use A4988 Stepper Motor Driver (Red): Examples, Pinouts, and Specs

The A4988 Stepper Motor Driver (Red) is a compact and versatile module designed for controlling bipolar stepper motors with precision. It features adjustable current control, microstepping capabilities (up to 1/16 steps), and built-in thermal shutdown protection, making it a reliable choice for a wide range of applications. This driver is widely used in 3D printers, CNC machines, robotics, and other projects requiring precise motor control.

• 3D printers for controlling stepper motors in X, Y, and Z axes
• CNC machines for precise movement and positioning
• Robotics for driving stepper motors in robotic arms or wheels
• Automated systems requiring accurate motor control
• DIY electronics projects involving stepper motors

The A4988 Stepper Motor Driver (Red) has the following key technical specifications:

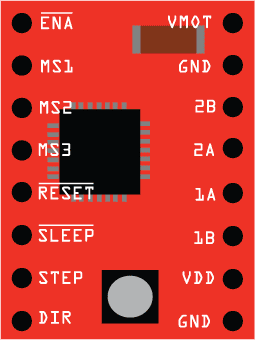

The A4988 module has 16 pins, which are described in the table below:

1. Power Connections:

   • Connect VMOT and GND to the motor power supply (8V to 35V).
   • Connect VDD and GND to the logic power supply (3.3V or 5V).

2. Motor Connections:

   • Connect the stepper motor coils to the 1A, 1B, 2A, and 2B pins. Ensure the correct pairing of motor wires.

3. Control Signals:

   • Use the STEP pin to send pulses for each step. The frequency of the pulses determines the motor speed.
   • Use the DIR pin to set the motor's rotation direction (HIGH for one direction, LOW for the other).

4. Microstepping:

   • Set the MS1, MS2, and MS3 pins to configure the microstepping mode:
     • Full step: MS1=LOW, MS2=LOW, MS3=LOW
     • 1/2 step: MS1=HIGH, MS2=LOW, MS3=LOW
     • 1/4 step: MS1=LOW, MS2=HIGH, MS3=LOW
     • 1/8 step: MS1=HIGH, MS2=HIGH, MS3=LOW
     • 1/16 step: MS1=HIGH, MS2=HIGH, MS3=HIGH

5. Adjusting Current Limit:

   • Use the onboard potentiometer to set the current limit. This prevents overheating and ensures safe operation.

6. Enable/Disable:

   • Use the ENABLE pin to enable or disable the driver. Pull it LOW to enable and HIGH to disable.

Below is an example of how to control a stepper motor using the A4988 driver with an Arduino UNO:

// Define control pins
#define STEP_PIN 3  // Connect to STEP pin on A4988
#define DIR_PIN 4   // Connect to DIR pin on A4988

void setup() {
  pinMode(STEP_PIN, OUTPUT); // Set STEP pin as output
  pinMode(DIR_PIN, OUTPUT);  // Set DIR pin as output

  digitalWrite(DIR_PIN, HIGH); // Set initial direction
}

void loop() {
  // Rotate the motor one step at a time
  digitalWrite(STEP_PIN, HIGH); // Generate a step pulse
  delayMicroseconds(1000);      // Wait for 1ms (adjust for speed)
  digitalWrite(STEP_PIN, LOW);  // End the step pulse
  delayMicroseconds(1000);      // Wait for 1ms (adjust for speed)
}

• Cooling: If driving motors at high current, use a heatsink or active cooling to prevent overheating.
• Power Supply: Ensure the motor power supply voltage matches the motor's requirements.
• Current Limit: Always set the current limit to match the motor's rated current to avoid damage.
• Decoupling Capacitors: Add a capacitor (e.g., 100µF) across VMOT and GND to reduce voltage spikes.

1. Motor Not Moving:

   • Check all connections, especially the motor coil wiring.
   • Verify that the STEP and DIR signals are being sent correctly.
   • Ensure the ENABLE pin is LOW.

2. Motor Vibrates but Doesn't Rotate:

   • Check the microstepping configuration (MS1, MS2, MS3).
   • Verify the current limit is set correctly.

3. Driver Overheating:

   • Reduce the current limit using the potentiometer.
   • Add a heatsink or active cooling.

4. Motor Moves Erratically:

   • Ensure a stable power supply with sufficient current capacity.
   • Check for loose or incorrect wiring.

Q: Can I use the A4988 with a unipolar stepper motor?
A: No, the A4988 is designed for bipolar stepper motors only.

Q: What happens if I exceed the current limit?
A: The driver will enter thermal shutdown to protect itself, but this may cause erratic motor behavior.

Q: Can I control multiple stepper motors with one Arduino?
A: Yes, you can use multiple A4988 drivers, each connected to a separate set of control pins on the Arduino.

Q: How do I calculate the current limit?
A: Use the formula: Current Limit = VREF / (8 × RS), where RS is the sense resistor value (typically 0.1Ω).

By following this documentation, you can effectively use the A4988 Stepper Motor Driver (Red) in your projects!
