How to Use LED Two Pin (Red): Examples, Pinouts, and Specs

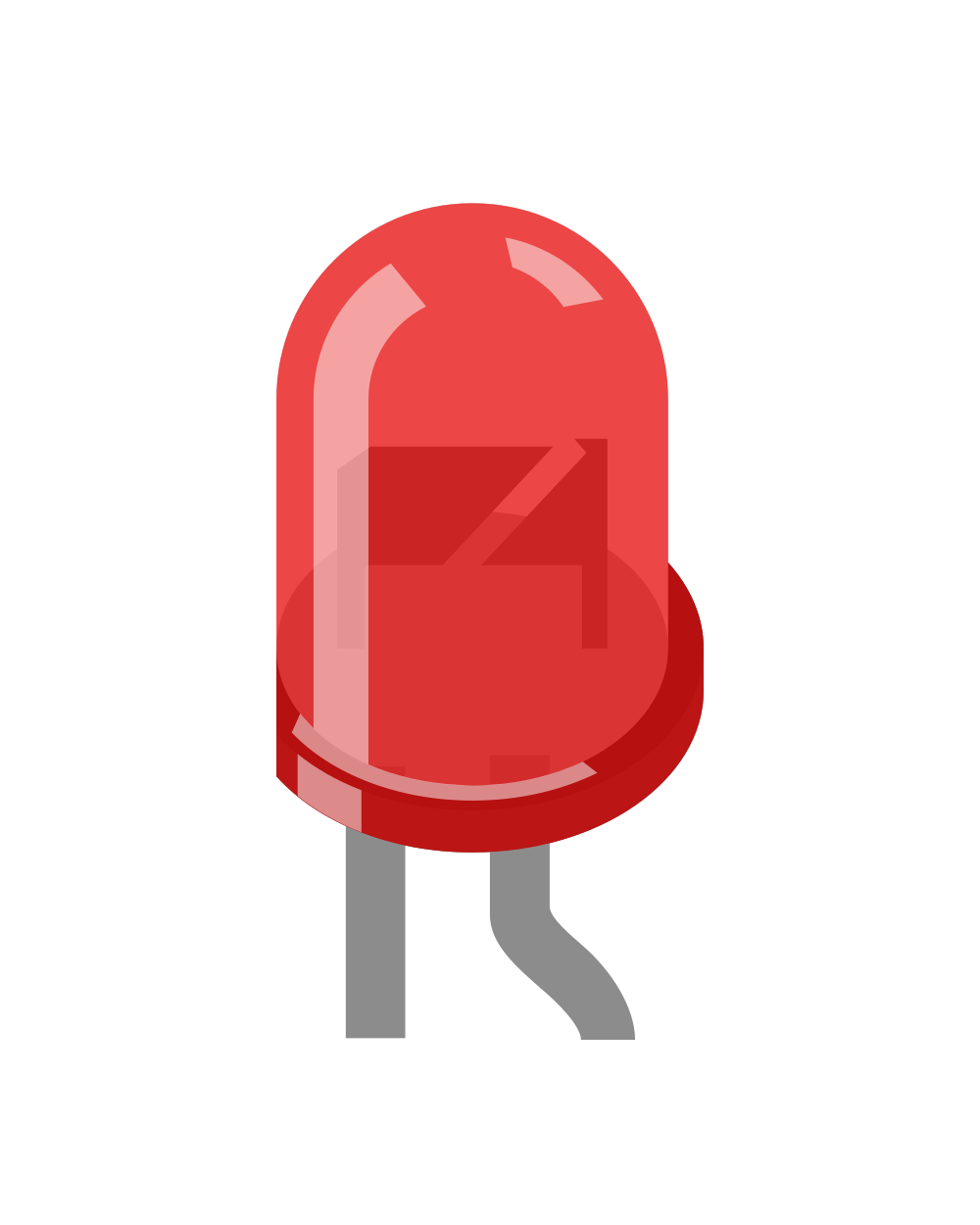

Image of LED Two Pin (Red)
Cirkit Designer LogoDesign with LED Two Pin (Red) in Cirkit Designer

Introduction

The LED Two Pin (Red) is a light-emitting diode that emits red light when an electric current flows through it. This component is widely used in electronic circuits for visual indicators, status displays, and decorative lighting. Its compact size, low power consumption, and long lifespan make it an essential component in various applications, ranging from simple hobby projects to complex industrial systems.

Explore Projects Built with LED Two Pin (Red)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
LED Array with Inductive Power Transfer
Image of Wind Mill: A project utilizing LED Two Pin (Red) in a practical application
The circuit consists of multiple red two-pin LEDs connected in parallel, with all cathodes tied together and all anodes tied together. A copper coil is also connected in parallel with the LEDs. There is no control circuitry or power regulation components indicated, and no embedded code provided, suggesting this is a simple illumination circuit possibly intended for inductive power transfer given the presence of the copper coil.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi-Controlled Red LED Indicator
Image of ras1: A project utilizing LED Two Pin (Red) in a practical application
This circuit consists of a Raspberry Pi 3B microcontroller connected to a two-pin red LED. The GPIO22 pin of the Raspberry Pi is connected to the anode of the LED, and one of the Raspberry Pi's GND pins is connected to the cathode of the LED. This setup allows the Raspberry Pi to control the LED, turning it on and off by toggling the GPIO22 pin.
Cirkit Designer LogoOpen Project in Cirkit Designer
Simple LED Circuit with Current-Limiting Resistors
Image of 모스시: A project utilizing LED Two Pin (Red) in a practical application
The circuit consists of two independent sections, each containing a red LED in series with a 220-ohm resistor. The purpose of this circuit is likely for simple indication, with the resistors serving to limit the current through the LEDs to prevent damage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Controlled Blinking LED Circuit
Image of led: A project utilizing LED Two Pin (Red) in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a red two-pin LED. The Arduino's digital pin D13 is connected to the LED's anode, and the LED's cathode is connected to the Arduino's ground (GND). The embedded code on the Arduino is programmed to blink the LED on and off at one-second intervals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LED Two Pin (Red)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Wind Mill: A project utilizing LED Two Pin (Red) in a practical application
LED Array with Inductive Power Transfer
The circuit consists of multiple red two-pin LEDs connected in parallel, with all cathodes tied together and all anodes tied together. A copper coil is also connected in parallel with the LEDs. There is no control circuitry or power regulation components indicated, and no embedded code provided, suggesting this is a simple illumination circuit possibly intended for inductive power transfer given the presence of the copper coil.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ras1: A project utilizing LED Two Pin (Red) in a practical application
Raspberry Pi-Controlled Red LED Indicator
This circuit consists of a Raspberry Pi 3B microcontroller connected to a two-pin red LED. The GPIO22 pin of the Raspberry Pi is connected to the anode of the LED, and one of the Raspberry Pi's GND pins is connected to the cathode of the LED. This setup allows the Raspberry Pi to control the LED, turning it on and off by toggling the GPIO22 pin.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 모스시: A project utilizing LED Two Pin (Red) in a practical application
Simple LED Circuit with Current-Limiting Resistors
The circuit consists of two independent sections, each containing a red LED in series with a 220-ohm resistor. The purpose of this circuit is likely for simple indication, with the resistors serving to limit the current through the LEDs to prevent damage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of led: A project utilizing LED Two Pin (Red) in a practical application
Arduino UNO Controlled Blinking LED Circuit
This circuit consists of an Arduino UNO microcontroller connected to a red two-pin LED. The Arduino's digital pin D13 is connected to the LED's anode, and the LED's cathode is connected to the Arduino's ground (GND). The embedded code on the Arduino is programmed to blink the LED on and off at one-second intervals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Power and status indicators in electronic devices
  • Digital displays and signage
  • Decorative and ambient lighting
  • Circuit debugging and testing
  • Educational and DIY electronics projects

Technical Specifications

Below are the key technical details for the LED Two Pin (Red):

Parameter Value
Forward Voltage (Vf) 1.8V to 2.2V
Forward Current (If) 20mA (typical)
Maximum Current (Imax) 30mA
Wavelength 620nm to 630nm (red light)
Viewing Angle 20° to 30°
Power Dissipation 75mW (maximum)
Reverse Voltage (Vr) 5V (maximum)
Operating Temperature -40°C to +85°C

Pin Configuration

The LED Two Pin (Red) has two terminals:

Pin Description
Anode (+) The longer leg of the LED; connects to the positive terminal of the power source.
Cathode (-) The shorter leg of the LED; connects to the negative terminal or ground.

Note: If the legs are trimmed or indistinguishable, the flat edge on the LED casing indicates the cathode (-).

Usage Instructions

How to Use the LED in a Circuit

  1. Determine the Resistor Value: To prevent damage to the LED, always use a current-limiting resistor in series. The resistor value can be calculated using Ohm's Law: [ R = \frac{V_{supply} - V_f}{I_f} ]

    • (V_{supply}): Supply voltage
    • (V_f): Forward voltage of the LED (1.8V to 2.2V)
    • (I_f): Desired forward current (typically 20mA)

    For example, with a 5V supply: [ R = \frac{5V - 2V}{0.02A} = 150\Omega ]

  2. Connect the LED:

    • Connect the anode (+) to the positive terminal of the power source through the resistor.
    • Connect the cathode (-) to the ground.
  3. Power the Circuit: Apply the appropriate voltage to the circuit. The LED will emit red light when current flows through it.

Important Considerations

  • Polarity: LEDs are polarized components. Reversing the polarity may damage the LED.
  • Current Limiting: Always use a resistor to limit the current and prevent overheating.
  • Brightness Control: Use a pulse-width modulation (PWM) signal to adjust the brightness of the LED.
  • Series and Parallel Connections: When using multiple LEDs, calculate the resistor values accordingly for series or parallel configurations.

Example: Connecting to an Arduino UNO

Below is an example of how to connect and control the LED Two Pin (Red) with an Arduino UNO:

Circuit Setup

  • Connect the anode (+) of the LED to a 220Ω resistor.
  • Connect the other end of the resistor to digital pin 9 on the Arduino.
  • Connect the cathode (-) of the LED to the Arduino's GND pin.

Arduino Code

// LED Two Pin (Red) Example with Arduino UNO
// This code blinks the LED on and off every second.

const int ledPin = 9; // Pin connected to the LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Tip: Adjust the delay() values to change the blinking speed.

Troubleshooting and FAQs

Common Issues

  1. LED Does Not Light Up:

    • Cause: Incorrect polarity.

    • Solution: Ensure the anode (+) is connected to the positive terminal and the cathode (-) to ground.

    • Cause: No current-limiting resistor.

    • Solution: Add a resistor in series with the LED to limit the current.

  2. LED is Dim:

    • Cause: Resistor value too high.
    • Solution: Recalculate the resistor value for the desired brightness.
  3. LED Burns Out:

    • Cause: Excessive current.
    • Solution: Use a resistor to limit the current to 20mA.
  4. Flickering LED:

    • Cause: Unstable power supply or loose connections.
    • Solution: Check the power source and ensure all connections are secure.

FAQs

  • Can I connect the LED directly to a 3.3V or 5V power source? No, always use a current-limiting resistor to prevent damage to the LED.

  • How do I control the brightness of the LED? Use a PWM signal from a microcontroller like Arduino to adjust the brightness.

  • Can I use the LED with an AC power source? LEDs are designed for DC operation. Use a rectifier circuit to convert AC to DC before connecting the LED.

  • What happens if I reverse the polarity? The LED will not light up, and prolonged reverse voltage may damage it.

By following this documentation, you can effectively use the LED Two Pin (Red) in your projects and troubleshoot common issues with ease.
