How to Use WS2812 RGB LED strip: Examples, Pinouts, and Specs

Introduction

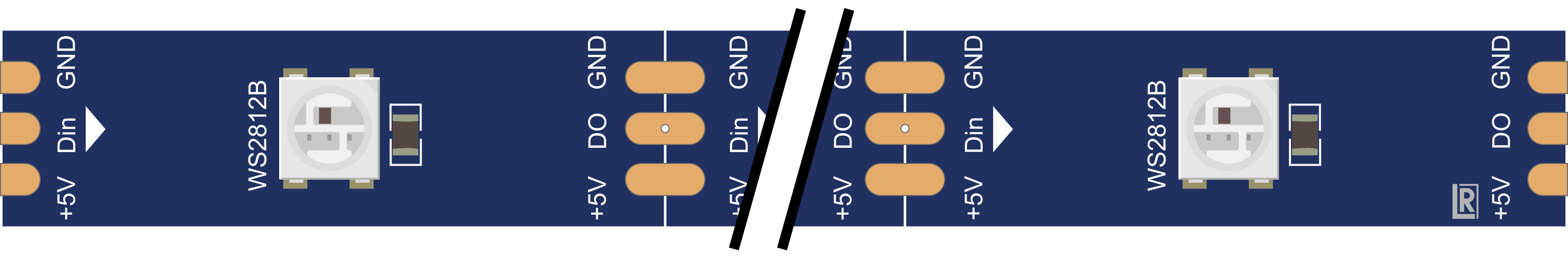

The WS2812 RGB LED strip is a flexible strip of individually addressable RGB LEDs. Each LED on the strip contains a built-in driver chip, allowing precise control of color and brightness for each LED via a single data line. This makes the WS2812 strip ideal for creating dynamic lighting effects, animations, and displays.

Explore Projects Built with WS2812 RGB LED strip

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Arduino Mega 2560 and Raspberry Pi 4B Controlled WS2812 RGB LED Strip

This circuit features an Arduino Mega 2560 microcontroller programmed to control a WS2812 RGB LED strip and a white LED, indicating status or providing user feedback. The Arduino and the LED strip are powered by a common 5V supply, and the circuit includes interfacing with a Raspberry Pi 4B for potential communication or coordination between the two boards.

Open Project in Cirkit Designer

Arduino UNO Controlled WS2812 RGB LED Strip with Custom Color Patterns

This circuit consists of an Arduino UNO microcontroller connected to a WS2812 RGB LED strip. The Arduino controls the LED strip by sending data signals through pin D8, while the 5V and GND pins provide power. The provided code initializes the LED strip and sets specific colors to the first three LEDs.

Open Project in Cirkit Designer

Wi-Fi Controlled LED Strip with Wemos D1 Mini and IKEA Trådfri Driver

This circuit is designed to control a WS2812 RGB LED strip using a Wemos D1 Mini microcontroller running WLED software. The circuit includes an IKEA Trådfri LED driver that converts 24V to 5V via an LM2596 voltage regulator, and an nMOS transistor to switch the LED strip's ground connection. The setup is intended for lighting applications, such as under-cabinet lighting in a kitchen.

Open Project in Cirkit Designer

Wi-Fi Controlled WS2812 RGB LED Strip with ESP32

This circuit consists of an ESP32 microcontroller controlling a series of four WS2812 RGB LED strips connected in a daisy-chain configuration. The LED strips are powered via a USB connection, and the ESP32 sends data signals to the first LED strip, which then propagates the signal through the subsequent strips.

Open Project in Cirkit Designer

Common Applications

• Decorative lighting for homes, events, and holidays
• LED displays and signage
• Wearable electronics and costumes
• Ambiance lighting for gaming setups or workspaces
• Art installations and DIY projects

Technical Specifications

Key Technical Details

• Operating Voltage: 5V DC
• Current Consumption: ~60mA per LED at full brightness (all colors on)
• Communication Protocol: One-wire serial communication
• LED Type: RGB (Red, Green, Blue) with 24-bit color depth
• Pixel Density: Typically 30, 60, or 144 LEDs per meter
• Data Transfer Speed: ~800 kHz
• Viewing Angle: ~120 degrees
• Operating Temperature: -25°C to 80°C

Pin Configuration and Descriptions

The WS2812 RGB LED strip typically has three main pins for connection:

Some strips may also have a DOUT pin at the end of the strip, which allows chaining multiple strips together.

Usage Instructions

How to Use the WS2812 RGB LED Strip in a Circuit

1. Power Supply: Ensure you have a 5V DC power supply capable of providing sufficient current for the number of LEDs in your strip. For example, a 1-meter strip with 60 LEDs will require up to 3.6A at full brightness.
2. Microcontroller: Use a microcontroller (e.g., Arduino UNO) to send data signals to the strip. The data pin of the strip (DIN) should be connected to a digital output pin on the microcontroller.
3. Resistor and Capacitor: Place a 330-500Ω resistor between the microcontroller's data pin and the strip's DIN pin to protect against voltage spikes. Add a 1000µF capacitor across the VCC and GND pins near the strip to stabilize the power supply.
4. Wiring: Connect the VCC and GND pins of the strip to the power supply. Ensure the GND of the power supply is connected to the GND of the microcontroller.

Example Arduino Code

Below is an example of how to control a WS2812 RGB LED strip using the Arduino UNO and the Adafruit NeoPixel library:

#include <Adafruit_NeoPixel.h>

// Define the pin connected to the DIN pin of the LED strip
#define LED_PIN 6

// Define the number of LEDs in the strip
#define NUM_LEDS 60

// Create a NeoPixel object
Adafruit_NeoPixel strip = Adafruit_NeoPixel(NUM_LEDS, LED_PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  strip.begin();  // Initialize the LED strip
  strip.show();   // Turn off all LEDs initially
}

void loop() {
  // Example: Set all LEDs to red
  for (int i = 0; i < NUM_LEDS; i++) {
    strip.setPixelColor(i, strip.Color(255, 0, 0)); // Red color
  }
  strip.show();  // Update the strip to display the colors
  delay(1000);   // Wait for 1 second

  // Example: Turn off all LEDs
  for (int i = 0; i < NUM_LEDS; i++) {
    strip.setPixelColor(i, strip.Color(0, 0, 0)); // Turn off
  }
  strip.show();  // Update the strip to turn off LEDs
  delay(1000);   // Wait for 1 second
}

Important Considerations and Best Practices

• Power Supply: Always use a power supply that can handle the total current draw of your strip. For long strips, inject power at multiple points to prevent voltage drop.
• Signal Integrity: Keep the data line as short as possible to avoid signal degradation. For longer distances, consider using a level shifter to boost the signal.
• Heat Management: At full brightness, the strip can generate significant heat. Ensure proper ventilation or reduce brightness to avoid overheating.
• Chaining Strips: When chaining multiple strips, connect the DOUT pin of one strip to the DIN pin of the next. Ensure all strips share a common ground.

Troubleshooting and FAQs

Common Issues and Solutions

1. LEDs Not Lighting Up

   • Cause: Incorrect wiring or insufficient power supply.
   • Solution: Double-check all connections, ensure the power supply is 5V, and verify the GND is shared between the strip and microcontroller.

2. Flickering or Unstable Colors

   • Cause: Signal degradation or insufficient power.
   • Solution: Add a 330-500Ω resistor on the data line and ensure the power supply can handle the current draw. For long strips, inject power at multiple points.

3. Only the First LED Works

   • Cause: Faulty first LED or incorrect data signal.
   • Solution: Check the data connection to the first LED. If the first LED is damaged, cut it off and reconnect to the next LED.

4. Colors Are Incorrect

   • Cause: Incorrect color order in the code.
   • Solution: Verify the color order (e.g., NEO_GRB or NEO_RGB) in your code matches the strip's configuration.

FAQs

Q: Can I cut the WS2812 strip to a custom length?
A: Yes, the strip can be cut at designated points (usually marked with a scissor icon). Ensure you reconnect the VCC, GND, and DIN pins properly.

Q: How many LEDs can I control with one microcontroller?
A: Theoretically, you can control thousands of LEDs, but memory and timing constraints of your microcontroller may limit the number. For an Arduino UNO, around 500 LEDs is a practical limit.

Q: Can I power the strip directly from the Arduino?
A: No, the Arduino cannot supply enough current for the strip. Always use an external 5V power supply.

Q: Is the WS2812 strip waterproof?
A: Some variants are waterproof (IP65 or IP67 rated). Check the product specifications before use in wet environments.

By following this documentation, you can effectively use the WS2812 RGB LED strip in your projects and troubleshoot common issues.
