How to Use ESP32 devkit v1: Examples, Pinouts, and Specs

Introduction

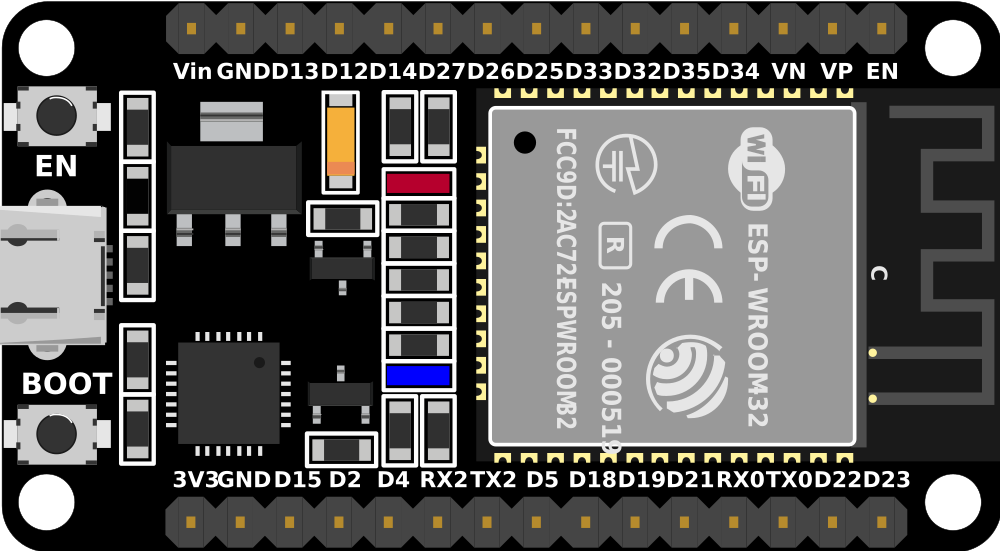

The ESP32 DevKit V1, manufactured by Espressif, is a versatile development board built around the powerful ESP32 chip. It features integrated Wi-Fi and Bluetooth capabilities, making it an excellent choice for Internet of Things (IoT) applications, smart devices, and rapid prototyping. The board is compact, energy-efficient, and supports a wide range of peripherals, making it suitable for both beginners and advanced developers.

Explore Projects Built with ESP32 devkit v1

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

ESP32-Based Environmental Monitoring and Alert System with Solar Charging

This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.

Open Project in Cirkit Designer

ESP32 Devkit V1 and OLED Display Bitmap Viewer

This circuit consists of an ESP32 Devkit V1 microcontroller connected to a 1.3" OLED display via I2C communication. The ESP32 initializes the OLED display and renders a predefined bitmap image on it.

Open Project in Cirkit Designer

ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface

This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.

Open Project in Cirkit Designer

ESP32-Based Smart Agriculture System with LoRa Communication

This circuit features an ESP32 Devkit V1 microcontroller as the central processing unit, interfacing with various sensors including a PH Meter, an NPK Soil Sensor, and a Soil Moisture Sensor for environmental data collection. It also includes an EBYTE LoRa E220 module for wireless communication. Power management is handled by a Step Up Boost Power Converter, which is connected to a 12V Battery, stepping up the voltage to power the ESP32 and sensors, with common ground connections throughout the circuit.

Open Project in Cirkit Designer

Common Applications and Use Cases

• IoT devices and smart home automation
• Wireless sensor networks
• Wearable technology
• Robotics and automation systems
• Prototyping for Wi-Fi and Bluetooth-enabled projects
• Data logging and remote monitoring

Technical Specifications

The ESP32 DevKit V1 is equipped with the ESP32-WROOM-32 module, which includes a dual-core processor and integrated wireless communication features. Below are the key technical details:

Key Technical Details

Pin Configuration and Descriptions

The ESP32 DevKit V1 has a total of 30 pins, with the following key pin assignments:

Usage Instructions

How to Use the ESP32 DevKit V1 in a Circuit

1. Powering the Board:

   • Connect the board to your computer via a micro-USB cable for power and programming.
   • Alternatively, supply 5V to the VIN pin and connect GND to ground.

2. Programming the Board:

   • Install the Arduino IDE or ESP-IDF (Espressif IoT Development Framework).
   • Add the ESP32 board support package to the Arduino IDE via the Board Manager.
   • Select "ESP32 Dev Module" as the board type and the correct COM port.

3. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other peripherals.
   • Ensure that the voltage levels of connected devices are compatible with the ESP32's 3.3V logic.

4. Uploading Code:

   • Write your code in the Arduino IDE or ESP-IDF.
   • Press the "Upload" button in the IDE to flash the code to the ESP32.
   • If required, hold the "BOOT" button on the board during the upload process.

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to GPIO2:

// Define the GPIO pin where the LED is connected
const int ledPin = 2;

void setup() {
  // Set the LED pin as an output
  pinMode(ledPin, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(ledPin, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(ledPin, LOW);
  delay(1000); // Wait for 1 second
}

Important Considerations and Best Practices

• Voltage Levels: Ensure that all connected peripherals operate at 3.3V logic levels. Use level shifters if necessary.
• Boot Mode: GPIO0 must be pulled low to enter bootloader mode for programming.
• Power Supply: Use a stable power source to avoid unexpected resets or malfunctions.
• Wi-Fi and Bluetooth: Avoid placing the board near metal objects or enclosures that may interfere with wireless signals.

Troubleshooting and FAQs

Common Issues and Solutions

1. Problem: The board is not detected by the computer.
   Solution:

   • Ensure the USB cable is functional and supports data transfer.
   • Install the correct USB-to-serial driver (e.g., CP2102 or CH340).

2. Problem: Code upload fails with a timeout error.
   Solution:

   • Hold the "BOOT" button while uploading the code.
   • Check that the correct COM port and board type are selected in the IDE.

3. Problem: The board resets unexpectedly.
   Solution:

   • Verify that the power supply is stable and sufficient.
   • Avoid connecting high-current devices directly to the GPIO pins.

4. Problem: Wi-Fi connection is unstable.
   Solution:

   • Ensure the board is within range of the Wi-Fi router.
   • Check for interference from other devices operating on the same frequency.

FAQs

• Q: Can I power the ESP32 DevKit V1 with a battery?
  A: Yes, you can use a 3.7V LiPo battery connected to the 3.3V pin or a 5V source to the VIN pin.

• Q: How do I reset the board?
  A: Press the "EN" button on the board to reset it.

• Q: Can I use the ESP32 DevKit V1 with MicroPython?
  A: Yes, the ESP32 supports MicroPython. Flash the MicroPython firmware to the board and use a compatible IDE like Thonny.

• Q: What is the maximum current the GPIO pins can source/sink?
  A: Each GPIO pin can source/sink up to 12 mA safely.
