How to Use BME BMP280: Examples, Pinouts, and Specs

The BME BMP280 is a high-precision, low-power barometric pressure and temperature sensor. It is widely used in weather monitoring, altitude measurement, and environmental sensing applications. This sensor is designed for both professional and hobbyist use, offering reliable performance in compact and cost-effective designs.

Common applications include:

• Weather stations
• Altimeters for drones and other vehicles
• Indoor and outdoor environmental monitoring
• IoT devices for smart home systems

The BME BMP280 sensor combines barometric pressure and temperature sensing capabilities. Below are its key technical details:

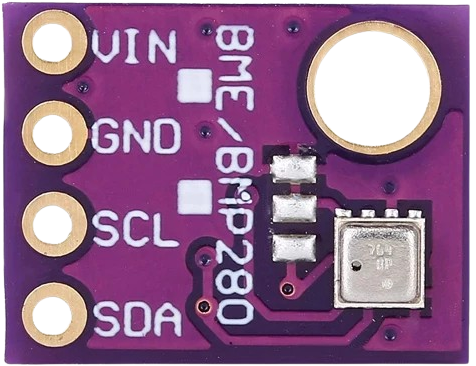

The BME BMP280 sensor typically comes in a breakout board format. Below is the pin configuration for the breakout board:

1. Power the Sensor: Connect the VIN pin to a 3.3V power source and the GND pin to ground.
2. Choose Communication Protocol: Decide whether to use I2C or SPI. For I2C:
   • Connect the SCL pin to the I2C clock line of your microcontroller.
   • Connect the SDA pin to the I2C data line of your microcontroller.
   • Leave the CS and SDO pins unconnected.
3. Pull-Up Resistors: Ensure that the I2C lines (SCL and SDA) have pull-up resistors (typically 4.7 kΩ).
4. Address Selection: The I2C address of the BMP280 can be configured by connecting the SDO pin to either GND (address 0x76) or VIN (address 0x77).

• Ensure the sensor operates within its voltage and temperature limits to avoid damage.
• Use decoupling capacitors (e.g., 0.1 µF) near the power pins to reduce noise.
• Avoid exposing the sensor to water or high humidity, as it may affect accuracy.

Below is an example of how to interface the BME BMP280 with an Arduino UNO using the I2C protocol. This code uses the Adafruit BMP280 library, which can be installed via the Arduino Library Manager.

#include <Wire.h>
#include <Adafruit_Sensor.h>
#include <Adafruit_BMP280.h>

// Create an instance of the BMP280 sensor
Adafruit_BMP280 bmp;

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  if (!bmp.begin(0x76)) {
    // Initialize the sensor with I2C address 0x76
    Serial.println("Could not find a valid BMP280 sensor, check wiring!");
    while (1); // Halt execution if sensor initialization fails
  }

  // Configure the sensor
  bmp.setSampling(Adafruit_BMP280::MODE_NORMAL,     // Normal mode
                  Adafruit_BMP280::SAMPLING_X2,     // Temperature oversampling x2
                  Adafruit_BMP280::SAMPLING_X16,    // Pressure oversampling x16
                  Adafruit_BMP280::FILTER_X16,      // Filter coefficient x16
                  Adafruit_BMP280::STANDBY_MS_500); // Standby time 500ms
}

void loop() {
  // Read and print temperature and pressure values
  Serial.print("Temperature = ");
  Serial.print(bmp.readTemperature());
  Serial.println(" *C");

  Serial.print("Pressure = ");
  Serial.print(bmp.readPressure() / 100.0F); // Convert Pa to hPa
  Serial.println(" hPa");

  delay(1000); // Wait 1 second before the next reading
}

1. Sensor Not Detected:

   • Ensure the I2C address (0x76 or 0x77) matches the configuration in your code.
   • Check the wiring for loose or incorrect connections.
   • Verify that pull-up resistors are present on the I2C lines.

2. Incorrect Readings:

   • Ensure the sensor is not exposed to extreme environmental conditions.
   • Verify that the power supply voltage is stable and within the specified range.

3. Communication Errors:

   • Check the I2C clock speed. The BMP280 supports up to 3.4 MHz for I2C.
   • Ensure no other devices on the I2C bus are causing address conflicts.

Q: Can the BMP280 measure humidity?
A: No, the BMP280 measures only temperature and pressure. For humidity sensing, consider using the BME280 sensor.

Q: What is the difference between the BMP280 and BME280?
A: The BMP280 measures temperature and pressure, while the BME280 adds humidity sensing.

Q: Can I use the BMP280 with a 5V microcontroller?
A: Yes, but you need a logic level shifter for the I2C or SPI lines, as the BMP280 operates at 3.3V logic levels.

Q: How do I calibrate the BMP280?
A: The sensor is factory-calibrated, and the calibration data is stored in its internal registers. Most libraries automatically apply this calibration data.
