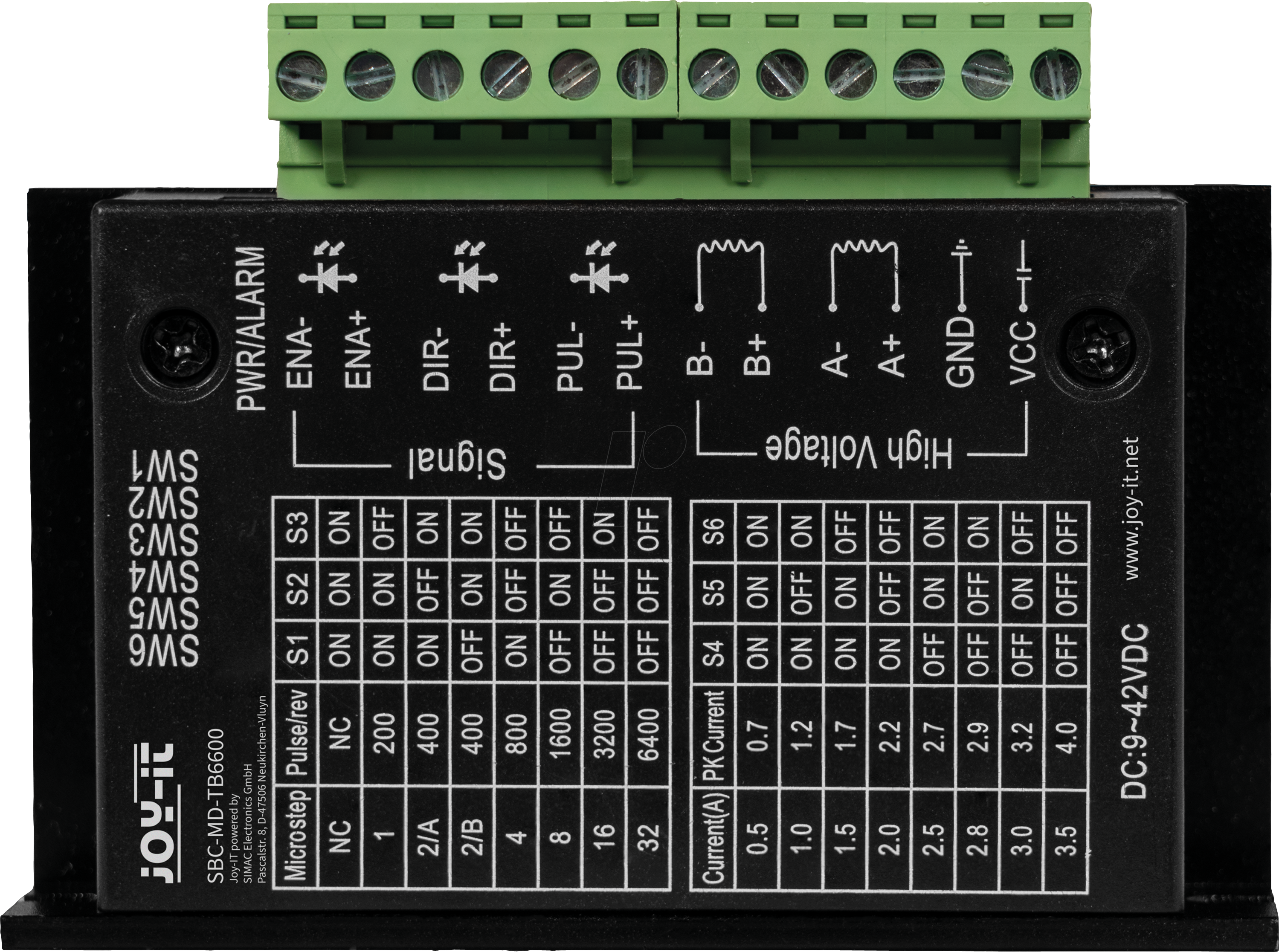

Design with Stepper Driver TB6600 in Cirkit DesignerThe TB6600 Stepper Motor Driver (Manufacturer: JOY-IT, Part ID: SBC-MD-TB6600) is a high-performance driver designed to control bipolar stepper motors with precision and reliability. It supports microstepping, enabling smoother motion and finer control over speed and torque. With adjustable current settings and built-in protection mechanisms, the TB6600 is ideal for applications requiring robust motor control, such as robotics, CNC machinery, 3D printers, and automated systems.
This circuit controls a bipolar stepper motor using a tb6600 micro stepping motor driver and a DKC-1A stepper motor controller. The system is powered by a 24VDC power supply and includes a relay module for additional control functionalities.
Open Project in Cirkit Designer
This circuit controls two NEMA23 stepper motors using TB6600 and TB660 stepper motor drivers, interfaced with an ESP32 microcontroller. The ESP32 reads inputs from a KY-023 Dual Axis Joystick Module to control the direction and movement of the motors, with power supplied by a 12V power source and regulated by a Step Up Boost Power Converter.
Open Project in Cirkit Designer
This circuit controls three TB6600 stepper motor drivers, which are connected to a 6xCNC controller for driving three separate stepper motors. A MW LRS-350-24 power supply provides +24V to the drivers and the CNC controller. Additionally, a 12V relay with a flyback diode is interfaced with the CNC controller for switching purposes, and a potentiometer is connected for analog input to the controller.
Open Project in Cirkit Designer
This circuit is designed to control a NEMA 23 stepper motor using a TB6600 stepper motor driver, which is interfaced with an Arduino UNO microcontroller. The Arduino provides control signals for enabling, direction, and pulse inputs to the driver, while the driver powers the stepper motor using a 12V 5A power supply. The power supply is also connected to a 240V AC power source to provide the necessary DC voltage for the motor operation.
Open Project in Cirkit Designer| Parameter | Value |
|---|---|
| Input Voltage Range | 9V to 42V DC |
| Output Current Range | 0.5A to 4.0A (adjustable) |
| Microstepping Modes | Full, 1/2, 1/4, 1/8, 1/16 |
| Control Signal Voltage | 3.3V to 5V (compatible with Arduino) |
| Step Pulse Frequency | Up to 200 kHz |
| Motor Type Supported | Bipolar stepper motors |
| Protection Features | Overcurrent, overheating, short-circuit |
| Operating Temperature | -10°C to +45°C |
| Dimensions | 96mm x 56mm x 33mm |
The TB6600 driver has several input and output terminals for motor control and power connections. Below is the pin configuration:
| Pin Name | Description |
|---|---|
| PUL+ | Positive terminal for step pulse signal (connect to controller) |
| PUL- | Negative terminal for step pulse signal (connect to controller ground) |
| DIR+ | Positive terminal for direction control signal (connect to controller) |
| DIR- | Negative terminal for direction control signal (connect to controller ground) |
| ENA+ | Positive terminal for enable signal (optional, connect to controller) |
| ENA- | Negative terminal for enable signal (optional, connect to controller ground) |
| Pin Name | Description |
|---|---|
| A+ | Positive terminal for one coil of the stepper motor |
| A- | Negative terminal for one coil of the stepper motor |
| B+ | Positive terminal for the other coil of the stepper motor |
| B- | Negative terminal for the other coil of the stepper motor |
| Pin Name | Description |
|---|---|
| VCC | Positive terminal for power supply (9V to 42V DC) |
| GND | Ground terminal for power supply |
Below is an example of how to control a stepper motor using the TB6600 and an Arduino UNO:
// Define control pins for the TB6600 driver
#define PUL_PIN 2 // Step pulse signal
#define DIR_PIN 3 // Direction control signal
#define ENA_PIN 4 // Enable signal
void setup() {
// Set control pins as outputs
pinMode(PUL_PIN, OUTPUT);
pinMode(DIR_PIN, OUTPUT);
pinMode(ENA_PIN, OUTPUT);
// Enable the driver
digitalWrite(ENA_PIN, LOW); // LOW to enable the driver
}
void loop() {
// Set direction
digitalWrite(DIR_PIN, HIGH); // HIGH for one direction, LOW for the other
// Generate step pulses
for (int i = 0; i < 200; i++) { // 200 steps for one revolution (example)
digitalWrite(PUL_PIN, HIGH); // Step pulse HIGH
delayMicroseconds(500); // Pulse width (500 µs)
digitalWrite(PUL_PIN, LOW); // Step pulse LOW
delayMicroseconds(500); // Delay between pulses
}
delay(1000); // Wait 1 second before reversing direction
// Reverse direction
digitalWrite(DIR_PIN, LOW);
for (int i = 0; i < 200; i++) {
digitalWrite(PUL_PIN, HIGH);
delayMicroseconds(500);
digitalWrite(PUL_PIN, LOW);
delayMicroseconds(500);
}
delay(1000); // Wait 1 second before repeating
}
Motor Not Moving:
Motor Vibrates but Does Not Rotate:
Driver Overheating:
Inconsistent Motor Movement:
Q: Can the TB6600 drive unipolar stepper motors?
A: No, the TB6600 is designed for bipolar stepper motors only.
Q: What is the maximum step resolution supported?
A: The TB6600 supports up to 1/16 microstepping.
Q: Is the TB6600 compatible with 3.3V logic controllers?
A: Yes, the TB6600 is compatible with both 3.3V and 5V logic levels.
Q: Can I use the TB6600 with a Raspberry Pi?
A: Yes, the TB6600 can be controlled by a Raspberry Pi, but you may need level shifters if the signal voltage is below 3.3V.
This concludes the documentation for the TB6600 Stepper Driver.
