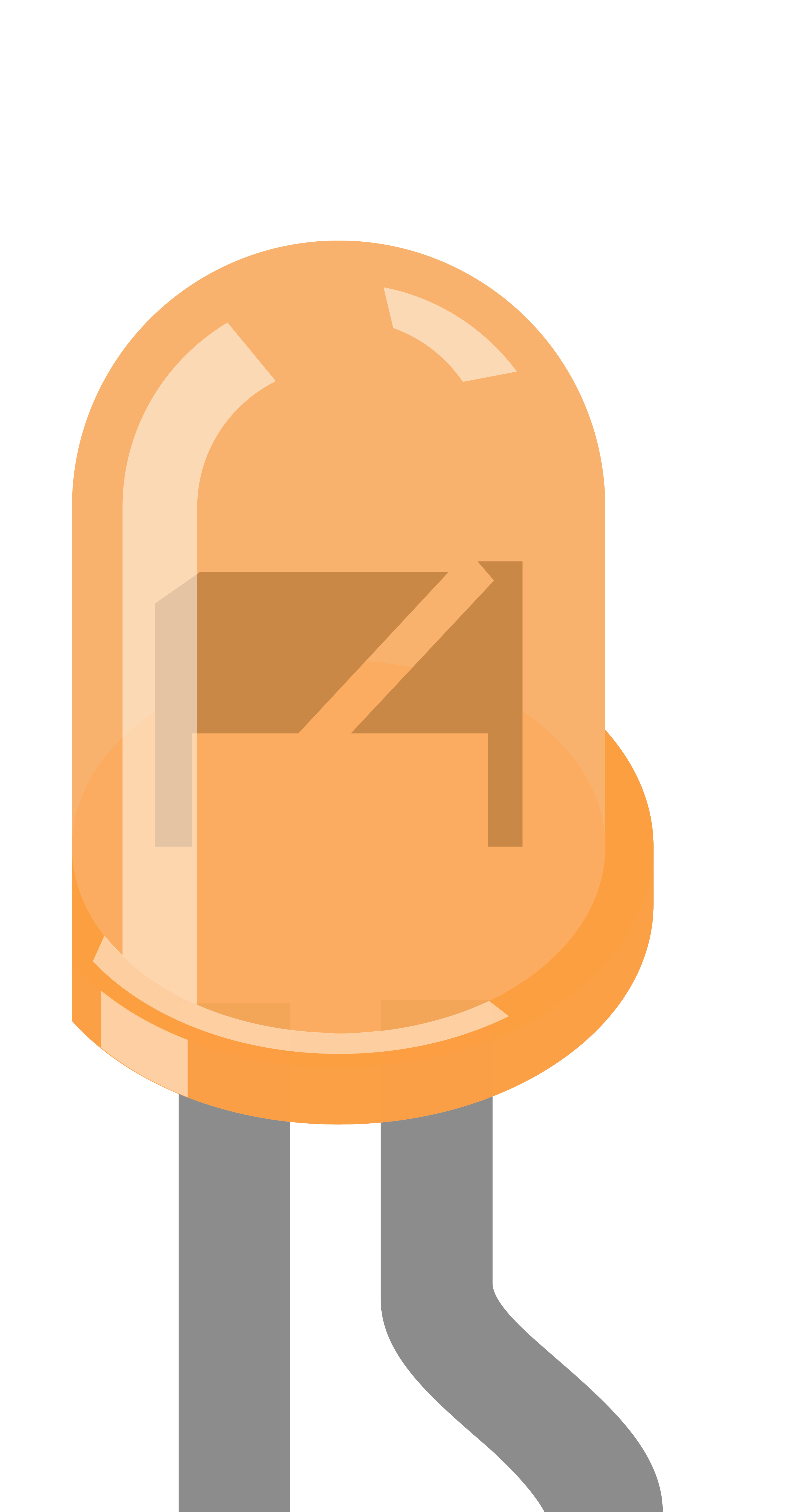

Image of LED: Two Pin (Orange)
Cirkit Designer LogoDesign with LED: Two Pin (Orange) in Cirkit Designer

Introduction

A light-emitting diode (LED) is a semiconductor device that emits light when an electric current flows through it. The two-pin orange LED is a popular choice for indicating power, status, or activity in electronic circuits. Its warm orange glow makes it suitable for use in displays, control panels, and decorative lighting. This component is energy-efficient, compact, and easy to integrate into various projects.

Common applications include:

  • Power and status indicators in electronic devices
  • Signal and warning lights
  • Decorative lighting and displays
  • DIY electronics and Arduino projects

Explore Projects Built with LED: Two Pin (Orange)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
LED Array with Inductive Power Transfer
Image of Wind Mill: A project utilizing LED: Two Pin (Orange) in a practical application
The circuit consists of multiple red two-pin LEDs connected in parallel, with all cathodes tied together and all anodes tied together. A copper coil is also connected in parallel with the LEDs. There is no control circuitry or power regulation components indicated, and no embedded code provided, suggesting this is a simple illumination circuit possibly intended for inductive power transfer given the presence of the copper coil.
Cirkit Designer LogoOpen Project in Cirkit Designer
Pushbutton-Controlled Dual-Color LED Circuit with TA6568
Image of polarity detector: A project utilizing LED: Two Pin (Orange) in a practical application
This is a pushbutton-controlled LED circuit with a TA6568 chip that likely drives two LEDs (red and green). Each LED is connected to a pushbutton through the TA6568, allowing the user to toggle the state of the LEDs. The circuit is powered by a 3V battery and includes a JST connector for external interfacing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Simple LED Circuit with Current-Limiting Resistors
Image of 모스시: A project utilizing LED: Two Pin (Orange) in a practical application
The circuit consists of two independent sections, each containing a red LED in series with a 220-ohm resistor. The purpose of this circuit is likely for simple indication, with the resistors serving to limit the current through the LEDs to prevent damage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi-Controlled Red LED Indicator
Image of ras1: A project utilizing LED: Two Pin (Orange) in a practical application
This circuit consists of a Raspberry Pi 3B microcontroller connected to a two-pin red LED. The GPIO22 pin of the Raspberry Pi is connected to the anode of the LED, and one of the Raspberry Pi's GND pins is connected to the cathode of the LED. This setup allows the Raspberry Pi to control the LED, turning it on and off by toggling the GPIO22 pin.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LED: Two Pin (Orange)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Wind Mill: A project utilizing LED: Two Pin (Orange) in a practical application
LED Array with Inductive Power Transfer
The circuit consists of multiple red two-pin LEDs connected in parallel, with all cathodes tied together and all anodes tied together. A copper coil is also connected in parallel with the LEDs. There is no control circuitry or power regulation components indicated, and no embedded code provided, suggesting this is a simple illumination circuit possibly intended for inductive power transfer given the presence of the copper coil.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of polarity detector: A project utilizing LED: Two Pin (Orange) in a practical application
Pushbutton-Controlled Dual-Color LED Circuit with TA6568
This is a pushbutton-controlled LED circuit with a TA6568 chip that likely drives two LEDs (red and green). Each LED is connected to a pushbutton through the TA6568, allowing the user to toggle the state of the LEDs. The circuit is powered by a 3V battery and includes a JST connector for external interfacing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 모스시: A project utilizing LED: Two Pin (Orange) in a practical application
Simple LED Circuit with Current-Limiting Resistors
The circuit consists of two independent sections, each containing a red LED in series with a 220-ohm resistor. The purpose of this circuit is likely for simple indication, with the resistors serving to limit the current through the LEDs to prevent damage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ras1: A project utilizing LED: Two Pin (Orange) in a practical application
Raspberry Pi-Controlled Red LED Indicator
This circuit consists of a Raspberry Pi 3B microcontroller connected to a two-pin red LED. The GPIO22 pin of the Raspberry Pi is connected to the anode of the LED, and one of the Raspberry Pi's GND pins is connected to the cathode of the LED. This setup allows the Raspberry Pi to control the LED, turning it on and off by toggling the GPIO22 pin.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

The following table outlines the key technical details of the two-pin orange LED:

Parameter Value
Forward Voltage (Vf) 1.8V to 2.2V
Forward Current (If) 20mA (typical)
Maximum Current (Imax) 30mA
Reverse Voltage (Vr) 5V (maximum)
Wavelength 600nm to 610nm (orange light)
Viewing Angle 20° to 30°
Operating Temperature -40°C to +85°C

Pin Configuration

The two-pin orange LED has the following pin configuration:

Pin Name Description
Anode (+) Positive terminal; connect to the power supply or resistor.
Cathode (-) Negative terminal; connect to ground.

Note: The longer leg of the LED is the anode (+), and the shorter leg is the cathode (-). If the legs are trimmed, the flat edge on the LED casing indicates the cathode.

Usage Instructions

How to Use the LED in a Circuit

  1. Determine the Resistor Value: To prevent damage, always use a current-limiting resistor in series with the LED. The resistor value can be calculated using Ohm's Law: [ R = \frac{V_{supply} - V_f}{I_f} ] Where:

    • (V_{supply}) is the supply voltage.
    • (V_f) is the forward voltage of the LED (1.8V to 2.2V).
    • (I_f) is the desired forward current (typically 20mA).

    For example, if (V_{supply} = 5V) and (V_f = 2V), the resistor value is: [ R = \frac{5V - 2V}{0.02A} = 150\Omega ]

  2. Connect the LED:

    • Connect the anode (+) to the positive terminal of the power supply through the resistor.
    • Connect the cathode (-) to the ground.
  3. Power the Circuit: Apply the appropriate voltage to the circuit. The LED will emit a warm orange light.

Important Considerations and Best Practices

  • Polarity Matters: LEDs are polarized components. Reversing the polarity may prevent the LED from lighting up or damage it.
  • Avoid Overcurrent: Exceeding the maximum current (30mA) can permanently damage the LED.
  • Use a Resistor: Always use a current-limiting resistor to protect the LED.
  • Heat Management: While LEDs are efficient, excessive heat can reduce their lifespan. Ensure proper ventilation if used in high-power applications.

Example: Connecting the LED to an Arduino UNO

The following example demonstrates how to connect and control the two-pin orange LED using an Arduino UNO.

Circuit Diagram

  • Connect the anode (+) of the LED to Arduino pin 13 through a 220Ω resistor.
  • Connect the cathode (-) of the LED to the Arduino GND pin.

Arduino Code

// Example code to blink an orange LED connected to pin 13 of Arduino UNO

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Note: Adjust the resistor value based on the supply voltage and desired current.

Troubleshooting and FAQs

Common Issues

  1. LED Does Not Light Up:

    • Cause: Incorrect polarity.

    • Solution: Ensure the anode (+) is connected to the positive supply and the cathode (-) to ground.

    • Cause: No current-limiting resistor or incorrect resistor value.

    • Solution: Verify the resistor value and connections.

  2. LED is Dim:

    • Cause: Insufficient current.
    • Solution: Check the resistor value and ensure it allows enough current (e.g., 20mA).
  3. LED Burns Out Quickly:

    • Cause: Excessive current.
    • Solution: Use a resistor to limit the current to 20mA.
  4. LED Flickers:

    • Cause: Unstable power supply or loose connections.
    • Solution: Ensure a stable power source and secure connections.

FAQs

Q1: Can I connect the LED directly to a 5V power supply without a resistor?
A1: No, doing so will likely damage the LED due to excessive current. Always use a current-limiting resistor.

Q2: How do I identify the anode and cathode if the legs are trimmed?
A2: Look for the flat edge on the LED casing, which indicates the cathode (-).

Q3: Can I use this LED with a 3.3V power supply?
A3: Yes, but ensure you calculate the appropriate resistor value for the 3.3V supply.

Q4: What happens if I exceed the maximum current rating?
A4: Exceeding 30mA can permanently damage the LED or significantly reduce its lifespan.

By following these guidelines, you can effectively use the two-pin orange LED in your projects!
