How to Use USB-TLL: Examples, Pinouts, and Specs

Introduction

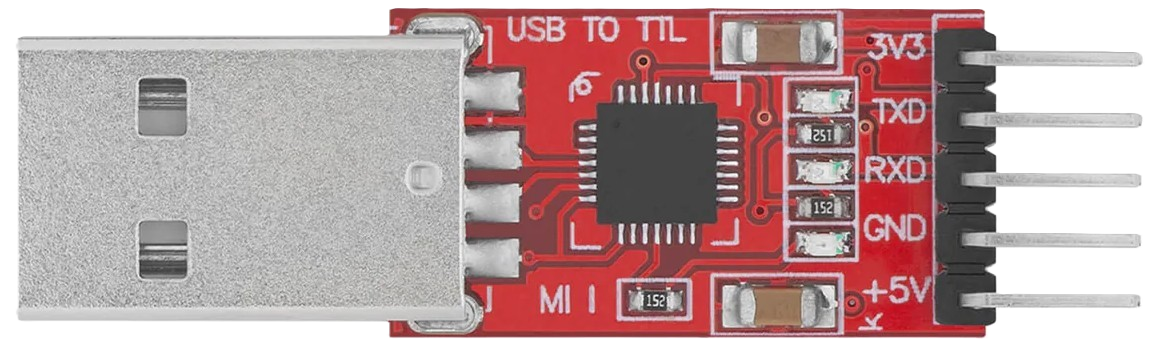

The USB-TTL converter is a versatile electronic component that bridges the gap between USB devices and TTL-level devices. It enables serial communication by converting USB signals to TTL logic levels (typically 3.3V or 5V) and vice versa. This component is widely used for programming microcontrollers, debugging embedded systems, and interfacing with sensors, modules, and other electronic devices that operate on TTL logic.

Explore Projects Built with USB-TLL

Dual Hub Motor Control System with USB to TTL Interface and Relay Switching

This circuit is designed to control two hub motors using a HUB driver, powered by a DC-DC converter and a power module. The USB to TTL converter allows for communication with the HUB driver, and a 5V relay module is used to switch the motors on and off.

Open Project in Cirkit Designer

ESP32-CAM Module with USB to TTL Communication

This circuit connects an ESP32-CAM module to a USB to TTL module for serial communication and power supply. The ESP32-CAM's transmit (VOT) and receive (VOR) pins are connected to the USB to TTL's RXD and TXD pins respectively, enabling serial data exchange between the ESP32-CAM and a connected computer. Power (3V3 and 5V) and ground (GND) connections are also established between the two modules, ensuring the ESP32-CAM is powered and can communicate over USB.

Open Project in Cirkit Designer

USB Type-C Powered LED Circuit with Resistor

This circuit consists of a USB Type-C port providing power to a red LED through a 1000 Ohm resistor. The resistor limits the current flowing through the LED, which lights up when the circuit is powered.

Open Project in Cirkit Designer

Bluetooth-Controlled Multi-Function Arduino Nano Gadget

This is a portable, microcontroller-driven interactive device featuring Bluetooth connectivity, visual (RGB LED), auditory (loudspeaker), and haptic (vibration motor) feedback, user input (pushbutton), and a rechargeable power system (TP4056 with Li-ion battery).

Open Project in Cirkit Designer

Common Applications and Use Cases

Programming microcontrollers such as Arduino, ESP8266, and STM32.
Debugging and monitoring serial data from embedded systems.
Interfacing with TTL-level devices like GPS modules, GSM modules, and sensors.
Creating custom USB-to-serial communication tools for projects.

Technical Specifications

The USB-TTL converter comes in various models, but the following are typical specifications:

Parameter	Value
Input Voltage (USB)	5V (via USB port)
Output Voltage (TTL)	3.3V or 5V (selectable on some models)
Communication Protocol	UART (Universal Asynchronous Receiver-Transmitter)
Baud Rate	300 bps to 3 Mbps (varies by model)
Operating Temperature	-40°C to 85°C
Connector Type	USB Type-A or Type-C (varies by model)
Chipset	Commonly FT232RL, CH340, or CP2102

Pin Configuration and Descriptions

The USB-TTL converter typically has the following pins:

Pin Name	Description
GND	Ground connection. Connect to the ground of the target device.
VCC	Power output. Provides 3.3V or 5V (depending on the model or jumper setting).
TXD	Transmit Data. Sends serial data from the USB-TTL converter to the target device.
RXD	Receive Data. Receives serial data from the target device to the USB-TTL converter.
RTS	Request to Send. Optional pin for hardware flow control (not always used).
CTS	Clear to Send. Optional pin for hardware flow control (not always used).

Usage Instructions

How to Use the USB-TTL Converter in a Circuit

Connect the USB-TTL to the Target Device:
- Connect the GND pin of the USB-TTL to the ground of the target device.
- Connect the TXD pin of the USB-TTL to the RX pin of the target device.
- Connect the RXD pin of the USB-TTL to the TX pin of the target device.
- If required, connect the VCC pin to power the target device (ensure voltage compatibility).
Install Drivers:
- Install the appropriate driver for the USB-TTL chipset (e.g., FTDI, CH340, or CP2102) on your computer. Drivers are typically available on the manufacturer's website.
Connect to a Computer:
- Plug the USB-TTL converter into a USB port on your computer. Verify that the device is recognized in the Device Manager (Windows) or via the ls /dev/tty* command (Linux/Mac).
Open a Serial Communication Tool:
- Use software like Arduino IDE, PuTTY, or CoolTerm to open a serial connection. Select the correct COM port and baud rate.
Test Communication:
- Send and receive data to verify the connection. For example, you can use a loopback test by connecting TXD to RXD and checking if sent data is echoed back.

Important Considerations and Best Practices

Voltage Compatibility: Ensure the target device operates at the same voltage level as the USB-TTL converter (3.3V or 5V). Some converters have a jumper or switch to select the voltage.
Cross-Connection of TX and RX: Always connect the TXD pin of the USB-TTL to the RX pin of the target device, and vice versa.
Driver Installation: Without the correct driver, the USB-TTL converter may not function properly. Verify the driver installation if issues arise.
Avoid Overloading: Do not draw excessive current from the VCC pin of the USB-TTL converter, as it is limited by the USB port's power supply.

Example: Using USB-TTL with Arduino UNO

The USB-TTL converter can be used to program or communicate with an Arduino UNO. Below is an example of how to send data from the Arduino to a computer via the USB-TTL converter.

Arduino Code Example

// Example: Sending data from Arduino to a computer via USB-TTL
void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
  Serial.println("Hello from Arduino!"); // Send a message to the computer
  delay(1000); // Wait for 1 second
}

Steps:

Connect the USB-TTL converter to the Arduino:
- GND to Arduino GND
- TXD to Arduino RX
- RXD to Arduino TX
Open a serial monitor on your computer (e.g., Arduino IDE Serial Monitor).
Set the baud rate to 9600 and observe the messages sent from the Arduino.

Troubleshooting and FAQs

Common Issues and Solutions

Device Not Recognized by Computer:
- Ensure the correct driver is installed for the USB-TTL chipset.
- Try a different USB port or cable.
- Check if the device appears in the Device Manager (Windows) or /dev/tty* (Linux/Mac).
No Data Transmission:
- Verify the TXD and RXD connections are correctly crossed.
- Check the baud rate and other serial settings in the communication software.
- Ensure the target device is powered and operational.
Incorrect Voltage Levels:
- Confirm the voltage level (3.3V or 5V) matches the target device's requirements.
- Adjust the voltage selection jumper or switch on the USB-TTL converter if available.
Data Corruption or Noise:
- Use shorter wires to reduce interference.
- Ensure a proper ground connection between the USB-TTL and the target device.

FAQs

Q: Can I use the USB-TTL converter to power my target device?
A: Yes, but only if the target device's power requirements are within the limits of the USB-TTL converter and the USB port (typically 500mA for USB 2.0).

Q: What is the maximum baud rate supported?
A: The maximum baud rate depends on the chipset. For example, FT232RL supports up to 3 Mbps, while CH340 supports up to 2 Mbps.

Q: Can I use the USB-TTL converter for SPI or I2C communication?
A: No, the USB-TTL converter is designed for UART communication only. For SPI or I2C, you will need a different interface module.

Q: How do I perform a loopback test?
A: Connect the TXD pin to the RXD pin on the USB-TTL converter. Open a serial terminal, send data, and check if it is echoed back.

By following this documentation, you can effectively use the USB-TTL converter for a wide range of applications.
