Introduction

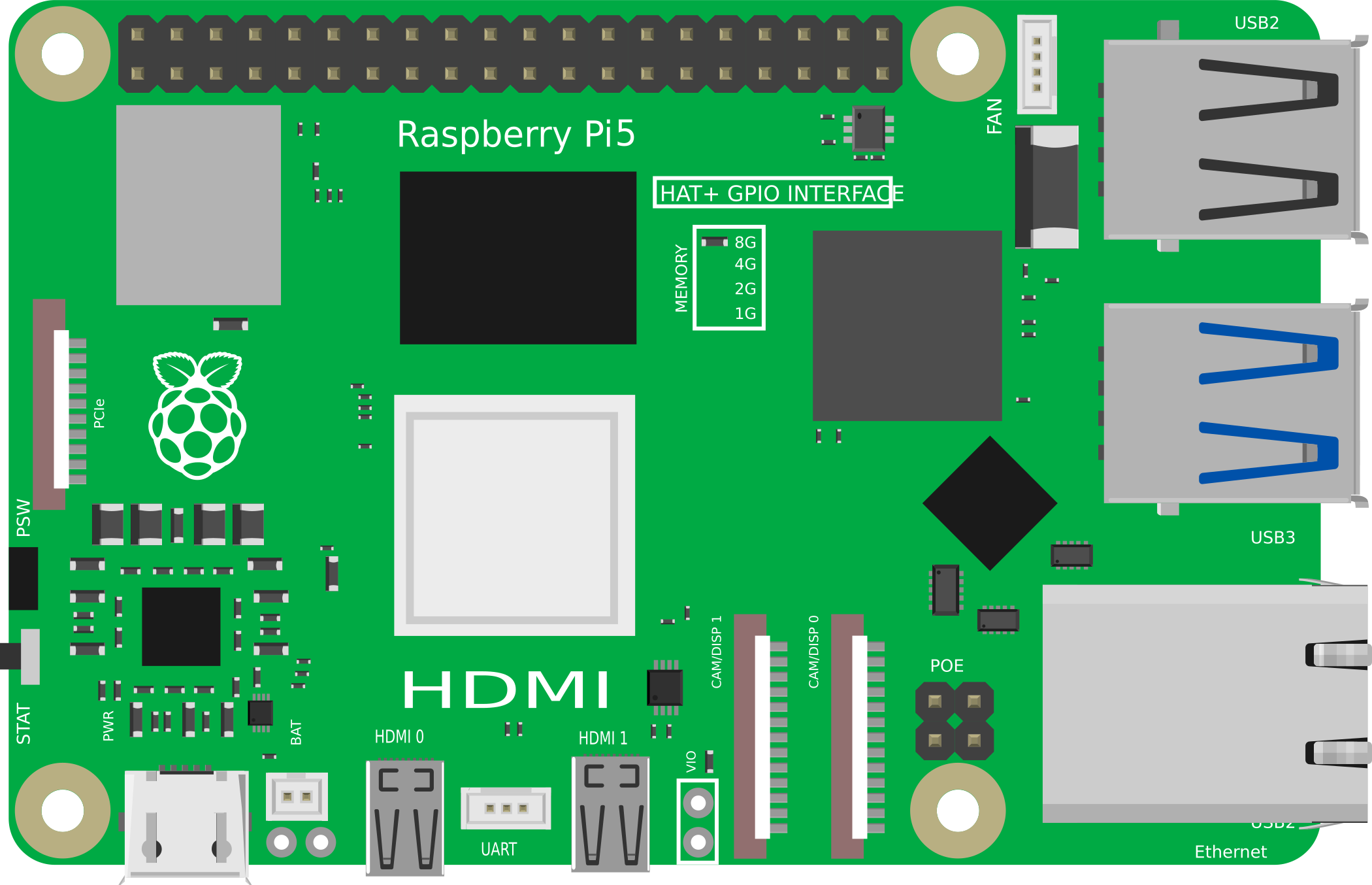

The Raspberry Pi 5 is a compact, affordable single-board computer designed for a wide range of applications. It features a powerful quad-core processor, enhanced graphics capabilities, and multiple connectivity options. This versatile device is ideal for Internet of Things (IoT) projects, media centers, educational purposes, and more. Its small form factor and robust performance make it a popular choice for hobbyists, educators, and professionals alike.

Common applications of the Raspberry Pi 5 include:

• IoT devices and smart home automation
• Media streaming and home theater systems
• Robotics and embedded systems
• Programming and computer science education
• Prototyping and hardware development

Explore Projects Built with Rasberry Pi5

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Raspberry Pi 5-Based Project with Custom Comments

The circuit consists of a Raspberry Pi 5 with no additional electrical connections or code, suggesting it is either a placeholder for future development or a standalone component without any external interfacing in this configuration.

Open Project in Cirkit Designer

Raspberry Pi 5 Smart Weather Station with GPS and AI Integration

This circuit integrates a Raspberry Pi 5 with various peripherals including an 8MP 3D stereo camera, an AI Hat, a BMP388 sensor, a 16x2 I2C LCD, and an Adafruit Ultimate GPS module. The Raspberry Pi serves as the central processing unit, interfacing with the camera for image capture, the AI Hat for AI processing, the BMP388 for environmental sensing, the LCD for display, and the GPS module for location tracking, with a USB Serial TTL for serial communication.

Open Project in Cirkit Designer

Raspberry Pi 5 Camera System

This circuit connects a Raspberry Pi 5 to a Raspberry Pi camera via the Camera 1 interface, enabling the Raspberry Pi to capture and process images or video from the camera.

Open Project in Cirkit Designer

Raspberry Pi 5 Smart Sensor Hub with OLED Display and Camera

This circuit integrates a Raspberry Pi 5 with various peripherals including an OV7670 camera, a BMI160 accelerometer/gyro sensor, and a 2.42 inch OLED display. It also includes a red LED and a breadboard power supply module, enabling the Raspberry Pi to interface with the sensors and display for data acquisition and visualization.

Open Project in Cirkit Designer

Technical Specifications

The Raspberry Pi 5 offers significant improvements over its predecessors, providing enhanced performance and connectivity. Below are the key technical details:

General Specifications

Pin Configuration

The Raspberry Pi 5 features a 40-pin GPIO header for interfacing with external devices. Below is the pinout:

For the full GPIO pinout, refer to the official Raspberry Pi documentation.

Usage Instructions

Setting Up the Raspberry Pi 5

1. Prepare the Operating System:
   • Download the official Raspberry Pi OS from the Raspberry Pi website.
   • Flash the OS onto a microSD card using tools like Balena Etcher.
2. Connect Peripherals:
   • Attach a keyboard, mouse, and monitor via USB and micro-HDMI ports.
   • Insert the microSD card into the slot.
3. Power Up:
   • Connect a 5V/3A USB-C power supply to the Raspberry Pi 5.
   • The device will boot into the Raspberry Pi OS.

Using GPIO Pins

The GPIO pins can be used to interface with sensors, LEDs, motors, and other peripherals. Below is an example of controlling an LED using Python:

# Import the GPIO library
import RPi.GPIO as GPIO
import time

# Set the GPIO mode to BCM (Broadcom pin numbering)
GPIO.setmode(GPIO.BCM)

# Define the GPIO pin connected to the LED
LED_PIN = 18

# Set up the LED pin as an output
GPIO.setup(LED_PIN, GPIO.OUT)

# Blink the LED in a loop
try:
    while True:
        GPIO.output(LED_PIN, GPIO.HIGH)  # Turn the LED on
        time.sleep(1)  # Wait for 1 second
        GPIO.output(LED_PIN, GPIO.LOW)   # Turn the LED off
        time.sleep(1)  # Wait for 1 second
except KeyboardInterrupt:
    # Clean up GPIO settings on exit
    GPIO.cleanup()

Best Practices

• Use a high-quality power supply to ensure stable operation.
• Avoid connecting high-current devices directly to GPIO pins without proper protection.
• Use heat sinks or a fan for cooling during intensive tasks.
• Regularly update the Raspberry Pi OS for security and performance improvements.

Troubleshooting and FAQs

Common Issues

1. The Raspberry Pi does not boot:
   • Ensure the microSD card is properly inserted and contains a valid OS image.
   • Check the power supply for sufficient voltage and current.
2. No display output:
   • Verify the HDMI cable and monitor connection.
   • Ensure the correct HDMI port is being used (if multiple are available).
3. Wi-Fi connectivity issues:
   • Check the Wi-Fi credentials and signal strength.
   • Update the Raspberry Pi OS to the latest version.

FAQs

Q: Can I power the Raspberry Pi 5 via GPIO pins?
A: Yes, you can power the Raspberry Pi 5 through the 5V and GND GPIO pins, but this bypasses the onboard power management and is not recommended for beginners.

Q: What is the maximum resolution supported by the Raspberry Pi 5?
A: The Raspberry Pi 5 supports up to dual 4K displays at 60Hz via its micro-HDMI ports.

Q: How do I enable SSH on the Raspberry Pi 5?
A: Create an empty file named ssh (without any extension) in the boot partition of the microSD card before booting the Raspberry Pi.

Q: Can I use the Raspberry Pi 5 for AI/ML applications?
A: Yes, the Raspberry Pi 5 is capable of running lightweight AI/ML models, especially when paired with external accelerators like the Google Coral USB or Raspberry Pi Camera Module for vision tasks.

By following this documentation, you can effectively set up and utilize the Raspberry Pi 5 for a variety of projects.
