How to Use ir sensor: Examples, Pinouts, and Specs

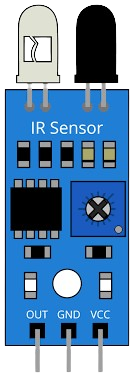

Image of ir sensor
Cirkit Designer LogoDesign with ir sensor in Cirkit Designer

Introduction

An infrared (IR) sensor detects infrared radiation, which is invisible to the human eye but can be emitted by objects as heat or light. IR sensors are widely used in various applications, including proximity sensing, motion detection, and remote control systems. These sensors are versatile and can be used in both analog and digital modes, making them suitable for a wide range of projects, from robotics to home automation.

Common applications of IR sensors include:

  • Obstacle detection in robotics
  • Line-following robots
  • Motion detection for security systems
  • Remote control signal reception
  • Automatic door systems

Explore Projects Built with ir sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino-Based IR Sensor Array with LED Indicators
Image of mixed: A project utilizing ir sensor in a practical application
This circuit uses an Arduino UNO to interface with multiple IR sensors, each connected to a different digital input pin. The IR sensors are powered by the Arduino's 5V and GND pins, and the setup is likely intended for detecting objects or motion in various zones.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered IR Sensor Alarm with LED Indicator and Buzzer
Image of PROJECT: A project utilizing ir sensor in a practical application
This circuit is a simple IR sensor-based alarm system. When the IR sensor detects an object, it triggers an OR gate, which in turn activates a buzzer and lights up an LED. The circuit is powered by a 9V battery and includes a rocker switch to control the power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO IR Sensor Motion Detector
Image of HCSR-04: A project utilizing ir sensor in a practical application
This circuit consists of an IR sensor connected to an Arduino UNO. The IR sensor's output is connected to digital pin D2 of the Arduino, while its power and ground pins are connected to the 5V and GND pins of the Arduino, respectively. The Arduino is programmed to read the sensor data and can be used for applications such as object detection or proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Dual IR Sensor Interface
Image of Person in and out monitoring: A project utilizing ir sensor in a practical application
This circuit features an ESP32 microcontroller connected to two IR sensors. The IR sensors are interfaced with the ESP32 via digital input pins D14 and D13, allowing the microcontroller to detect and process signals from the sensors. Both sensors are powered by the ESP32's 3.3V output and share a common ground connection with the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ir sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of mixed: A project utilizing ir sensor in a practical application
Arduino-Based IR Sensor Array with LED Indicators
This circuit uses an Arduino UNO to interface with multiple IR sensors, each connected to a different digital input pin. The IR sensors are powered by the Arduino's 5V and GND pins, and the setup is likely intended for detecting objects or motion in various zones.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of PROJECT: A project utilizing ir sensor in a practical application
Battery-Powered IR Sensor Alarm with LED Indicator and Buzzer
This circuit is a simple IR sensor-based alarm system. When the IR sensor detects an object, it triggers an OR gate, which in turn activates a buzzer and lights up an LED. The circuit is powered by a 9V battery and includes a rocker switch to control the power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of HCSR-04: A project utilizing ir sensor in a practical application
Arduino UNO IR Sensor Motion Detector
This circuit consists of an IR sensor connected to an Arduino UNO. The IR sensor's output is connected to digital pin D2 of the Arduino, while its power and ground pins are connected to the 5V and GND pins of the Arduino, respectively. The Arduino is programmed to read the sensor data and can be used for applications such as object detection or proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Person in and out monitoring: A project utilizing ir sensor in a practical application
ESP32-Based Dual IR Sensor Interface
This circuit features an ESP32 microcontroller connected to two IR sensors. The IR sensors are interfaced with the ESP32 via digital input pins D14 and D13, allowing the microcontroller to detect and process signals from the sensors. Both sensors are powered by the ESP32's 3.3V output and share a common ground connection with the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the key technical details of a typical IR sensor module:

Parameter Value
Operating Voltage 3.3V to 5V
Operating Current 20mA (typical)
Detection Range 2cm to 30cm (varies by model)
Output Type Digital (High/Low) or Analog
Wavelength 760nm to 950nm (infrared range)
Response Time ~10ms
Operating Temperature -25°C to 85°C

Pin Configuration

The IR sensor module typically has three pins. Below is the pinout description:

Pin Name Description
1 VCC Power supply pin (3.3V to 5V)
2 GND Ground pin
3 OUT Output pin (Digital or Analog signal, depending on the model)

Usage Instructions

How to Use the IR Sensor in a Circuit

  1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground of your circuit.
  2. Connect the Output: Attach the OUT pin to a microcontroller's input pin (e.g., Arduino) or to another circuit component, such as an LED or buzzer.
  3. Adjust Sensitivity (if applicable): Some IR sensor modules have a potentiometer to adjust the detection range or sensitivity. Turn the potentiometer clockwise or counterclockwise to fine-tune the sensor's performance.
  4. Test the Sensor: Place an object within the detection range and observe the output signal. The OUT pin typically goes HIGH (logic 1) when an object is detected and LOW (logic 0) otherwise.

Important Considerations and Best Practices

  • Ambient Light Interference: IR sensors can be affected by sunlight or other strong light sources. Use them in controlled lighting conditions or shield the sensor from direct light.
  • Reflective Surfaces: Highly reflective surfaces may cause inaccurate readings. Test the sensor with the materials you plan to use in your project.
  • Power Supply Stability: Ensure a stable power supply to avoid erratic behavior.
  • Distance Calibration: If your application requires precise distance measurement, calibrate the sensor for the specific range and environment.

Example: Connecting an IR Sensor to an Arduino UNO

Below is an example of how to connect and use an IR sensor with an Arduino UNO:

Circuit Connections

  • Connect the VCC pin of the IR sensor to the 5V pin on the Arduino.
  • Connect the GND pin of the IR sensor to the GND pin on the Arduino.
  • Connect the OUT pin of the IR sensor to digital pin 2 on the Arduino.

Arduino Code

// IR Sensor Example Code
// This code reads the digital output of the IR sensor and turns on an LED
// when an object is detected.

const int irSensorPin = 2;  // IR sensor output pin connected to digital pin 2
const int ledPin = 13;      // Built-in LED pin on Arduino

void setup() {
  pinMode(irSensorPin, INPUT);  // Set IR sensor pin as input
  pinMode(ledPin, OUTPUT);      // Set LED pin as output
  Serial.begin(9600);           // Initialize serial communication
}

void loop() {
  int sensorValue = digitalRead(irSensorPin);  // Read the IR sensor output

  if (sensorValue == HIGH) {
    // Object detected
    digitalWrite(ledPin, HIGH);  // Turn on the LED
    Serial.println("Object detected!");
  } else {
    // No object detected
    digitalWrite(ledPin, LOW);   // Turn off the LED
    Serial.println("No object detected.");
  }

  delay(100);  // Small delay for stability
}

Troubleshooting and FAQs

Common Issues

  1. The sensor is not detecting objects.

    • Ensure the sensor is powered correctly (check VCC and GND connections).
    • Verify that the object is within the detection range.
    • Adjust the sensitivity using the potentiometer (if available).
  2. False detections or erratic behavior.

    • Check for ambient light interference and shield the sensor if necessary.
    • Ensure a stable power supply to the sensor.
    • Avoid using the sensor near reflective surfaces.
  3. The output signal is not changing.

    • Confirm that the OUT pin is properly connected to the microcontroller or circuit.
    • Test the sensor with a multimeter to verify the output voltage.

FAQs

Q: Can the IR sensor detect transparent objects?
A: IR sensors may struggle to detect transparent objects like glass, as infrared light can pass through them. Use alternative sensors, such as ultrasonic sensors, for such applications.

Q: How do I increase the detection range?
A: Adjust the potentiometer on the sensor module (if available). Note that increasing the range may reduce accuracy.

Q: Can I use the IR sensor outdoors?
A: While IR sensors can be used outdoors, they may be affected by sunlight. Use shielding or filters to minimize interference.

Q: What is the difference between analog and digital IR sensors?
A: Digital IR sensors provide a HIGH/LOW output based on object detection, while analog IR sensors output a variable voltage proportional to the distance of the object. Choose the type based on your application requirements.
