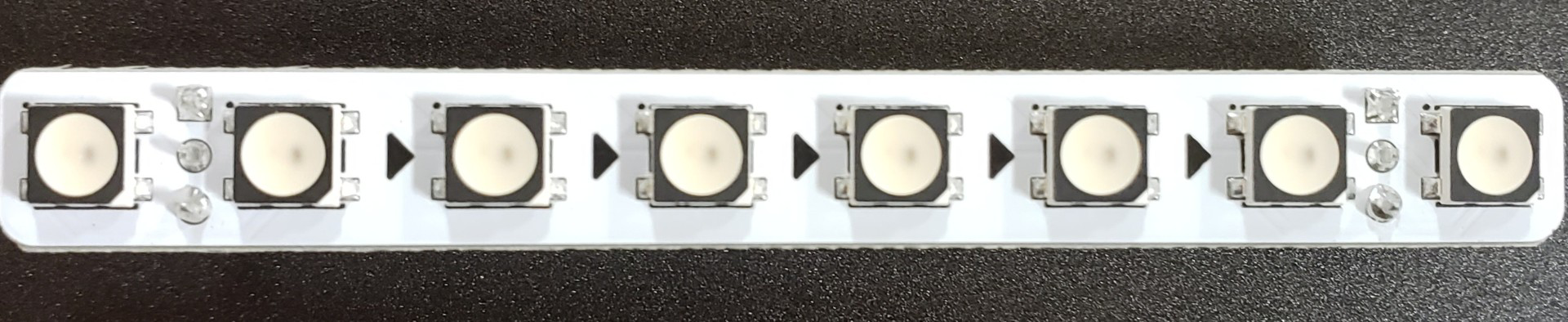

Image of Addressable RGB Light Strips
Cirkit Designer LogoDesign with Addressable RGB Light Strips in Cirkit Designer

Introduction

Addressable RGB light strips, manufactured by amomii, are flexible strips of LED lights that allow individual control of each LED. These strips can display a wide range of colors and effects, making them ideal for decorative lighting in homes, events, and displays. Their versatility and ease of use make them popular for both hobbyists and professionals.

Explore Projects Built with Addressable RGB Light Strips

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino-Controlled RGB LED Strip Lighting System with 220V to 24V Power Transformer
Image of asd: A project utilizing Addressable RGB Light Strips in a practical application
This circuit controls multiple RGB LED strips using an Arduino UNO, powered by a 220V to 24V transformer. The Arduino is programmed to turn the RGB LEDs on and off in a sequence, with each color channel (red, green, blue) connected to specific digital output pins on the Arduino.
Cirkit Designer LogoOpen Project in Cirkit Designer
RGB LED Strip Color Controller with Potentiometers and Power Switch
Image of potbased decoration: A project utilizing Addressable RGB Light Strips in a practical application
This circuit controls an RGB LED strip using three potentiometers, each potentiometer likely adjusts the intensity of one color channel (red, green, blue) of the LED strip. A rocker switch is used to power the circuit on and off, and an 18650 Li-Ion battery provides the power source. The common connection of the LED strip is connected to the negative terminal of the battery, while the positive terminal goes through the rocker switch to the potentiometers and then to the individual color channels.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560 and Raspberry Pi 4B Controlled WS2812 RGB LED Strip
Image of circuit_image: A project utilizing Addressable RGB Light Strips in a practical application
This circuit features an Arduino Mega 2560 microcontroller programmed to control a WS2812 RGB LED strip and a white LED, indicating status or providing user feedback. The Arduino and the LED strip are powered by a common 5V supply, and the circuit includes interfacing with a Raspberry Pi 4B for potential communication or coordination between the two boards.
Cirkit Designer LogoOpen Project in Cirkit Designer

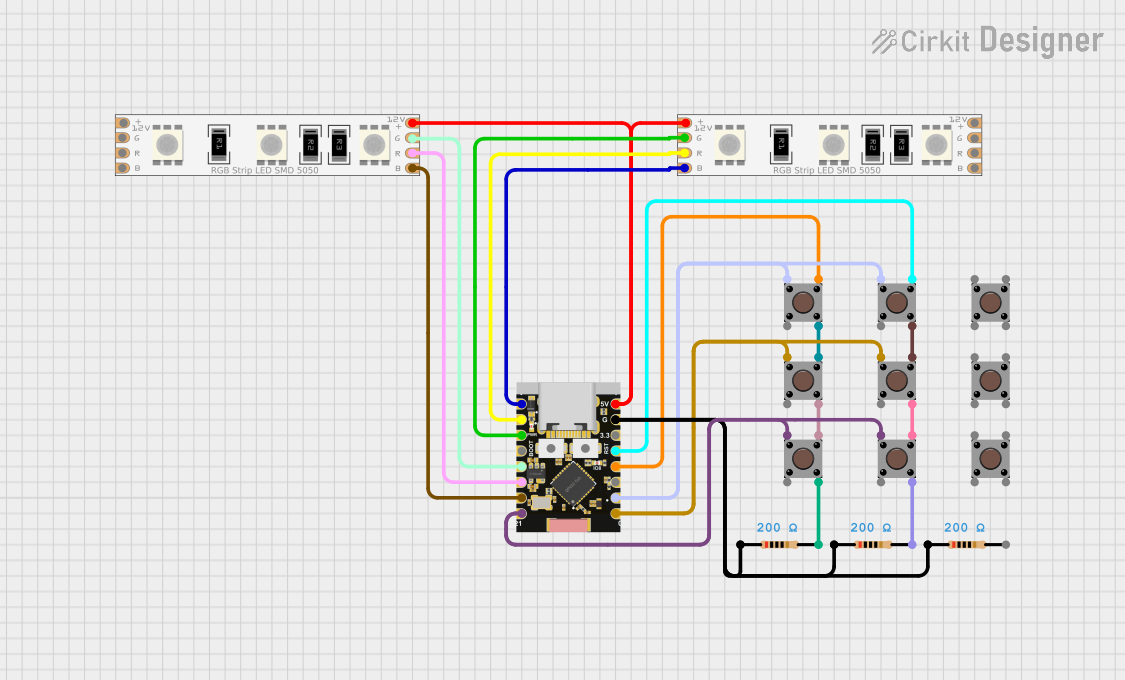

ESP32C3-Controlled Dual RGB LED Strip with Pushbutton Interaction
Image of RGB with 3x3 Matrix: A project utilizing Addressable RGB Light Strips in a practical application
This circuit uses an ESP32C3 Supermini microcontroller to control two RGB LED strips, with the ability to adjust the color channels via GPIO pins. Multiple pushbuttons interfaced with the microcontroller suggest user input functionality for dynamic control of the LED strips.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Addressable RGB Light Strips

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of asd: A project utilizing Addressable RGB Light Strips in a practical application
Arduino-Controlled RGB LED Strip Lighting System with 220V to 24V Power Transformer
This circuit controls multiple RGB LED strips using an Arduino UNO, powered by a 220V to 24V transformer. The Arduino is programmed to turn the RGB LEDs on and off in a sequence, with each color channel (red, green, blue) connected to specific digital output pins on the Arduino.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of potbased decoration: A project utilizing Addressable RGB Light Strips in a practical application
RGB LED Strip Color Controller with Potentiometers and Power Switch
This circuit controls an RGB LED strip using three potentiometers, each potentiometer likely adjusts the intensity of one color channel (red, green, blue) of the LED strip. A rocker switch is used to power the circuit on and off, and an 18650 Li-Ion battery provides the power source. The common connection of the LED strip is connected to the negative terminal of the battery, while the positive terminal goes through the rocker switch to the potentiometers and then to the individual color channels.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of circuit_image: A project utilizing Addressable RGB Light Strips in a practical application
Arduino Mega 2560 and Raspberry Pi 4B Controlled WS2812 RGB LED Strip
This circuit features an Arduino Mega 2560 microcontroller programmed to control a WS2812 RGB LED strip and a white LED, indicating status or providing user feedback. The Arduino and the LED strip are powered by a common 5V supply, and the circuit includes interfacing with a Raspberry Pi 4B for potential communication or coordination between the two boards.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of RGB with 3x3 Matrix: A project utilizing Addressable RGB Light Strips in a practical application
ESP32C3-Controlled Dual RGB LED Strip with Pushbutton Interaction
This circuit uses an ESP32C3 Supermini microcontroller to control two RGB LED strips, with the ability to adjust the color channels via GPIO pins. Multiple pushbuttons interfaced with the microcontroller suggest user input functionality for dynamic control of the LED strips.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Ambient lighting for homes and offices
  • Event and stage lighting
  • Customizable backlighting for TVs, monitors, and furniture
  • Interactive art installations
  • DIY electronics and Arduino projects

Technical Specifications

Below are the key technical details for amomii's addressable RGB light strips:

General Specifications

Parameter Value
LED Type WS2812B (or similar)
Input Voltage 5V DC
Power Consumption ~0.3W per LED (at full white)
LED Density 30, 60, or 144 LEDs per meter
Color Depth 24-bit (8 bits per channel)
Communication Protocol One-wire (data pin)
Operating Temperature -20°C to 60°C
Strip Length Varies (1m, 2m, 5m, etc.)
Waterproof Rating IP20 (non-waterproof) or IP67 (waterproof)

Pin Configuration

The addressable RGB light strip typically has three pins for connection:

Pin Name Description
+5V Power supply (5V DC input)
GND Ground connection
DIN Data input for controlling the LEDs

Note: Some strips may include a fourth pin labeled DOUT, which is the data output for chaining multiple strips.

Usage Instructions

Connecting the Light Strip

  1. Power Supply: Ensure you have a 5V DC power supply capable of providing sufficient current. Each LED consumes approximately 60mA at full brightness (white color).
  2. Data Connection: Connect the DIN pin of the strip to a microcontroller's digital output pin (e.g., Arduino).
  3. Grounding: Connect the GND pin of the strip to the ground of the microcontroller and power supply.
  4. Optional Chaining: To chain multiple strips, connect the DOUT pin of the first strip to the DIN pin of the next strip.

Example Circuit

Below is an example of connecting the light strip to an Arduino UNO:

  • DIN → Arduino digital pin 6
  • +5V → 5V power supply
  • GND → Common ground (shared with Arduino and power supply)

Arduino Code Example

The following code demonstrates how to control the light strip using the Adafruit NeoPixel library:

#include <Adafruit_NeoPixel.h>

// Define the pin connected to the DIN pin of the light strip
#define LED_PIN 6

// Define the number of LEDs in the strip
#define NUM_LEDS 30

// Create a NeoPixel object
Adafruit_NeoPixel strip = Adafruit_NeoPixel(NUM_LEDS, LED_PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  strip.begin();  // Initialize the strip
  strip.show();   // Turn off all LEDs initially
}

void loop() {
  // Example: Set all LEDs to red
  setColor(strip.Color(255, 0, 0));  // RGB: Red
  delay(1000);  // Wait for 1 second

  // Example: Set all LEDs to green
  setColor(strip.Color(0, 255, 0));  // RGB: Green
  delay(1000);  // Wait for 1 second

  // Example: Set all LEDs to blue
  setColor(strip.Color(0, 0, 255));  // RGB: Blue
  delay(1000);  // Wait for 1 second
}

// Function to set all LEDs to a specific color
void setColor(uint32_t color) {
  for (int i = 0; i < NUM_LEDS; i++) {
    strip.setPixelColor(i, color);  // Set color for each LED
  }
  strip.show();  // Update the strip to display the color
}

Important Considerations

  • Power Supply: Use a power supply with sufficient current capacity. For example, a 60-LED strip at full brightness requires approximately 3.6A.
  • Voltage Drop: For longer strips, voltage drop may occur. Inject power at multiple points to maintain consistent brightness.
  • Data Signal: Keep the data wire as short as possible to avoid signal degradation. Use a resistor (330–470Ω) in series with the data line for protection.
  • Capacitor: Place a 1000µF capacitor across the +5V and GND lines near the strip to prevent power surges.

Troubleshooting and FAQs

Common Issues

  1. LEDs Not Lighting Up

    • Cause: Incorrect wiring or insufficient power supply.
    • Solution: Double-check all connections and ensure the power supply meets the current requirements.
  2. Flickering or Incorrect Colors

    • Cause: Signal degradation or noise on the data line.
    • Solution: Use a shorter data wire, add a resistor in series with the data line, or use a level shifter if the microcontroller operates at 3.3V.
  3. Voltage Drop on Long Strips

    • Cause: High resistance in the power lines over long distances.
    • Solution: Inject power at multiple points along the strip.
  4. Overheating

    • Cause: LEDs running at full brightness for extended periods.
    • Solution: Reduce brightness or add heat dissipation measures.

FAQs

  • Can I cut the strip to a custom length? Yes, the strip can be cut at designated points (usually marked with a scissor icon).

  • Can I control multiple strips with one microcontroller? Yes, as long as the microcontroller has enough memory and processing power to handle the number of LEDs.

  • What is the maximum length I can control? This depends on the microcontroller and power supply. For long strips, consider using power injection and signal boosters.

  • Can I use a 12V power supply? No, these strips are designed for 5V input. Using a higher voltage can damage the LEDs.

By following this documentation, you can effectively use amomii's addressable RGB light strips for your projects.
