How to Use Oled 12c 7 pin: Examples, Pinouts, and Specs

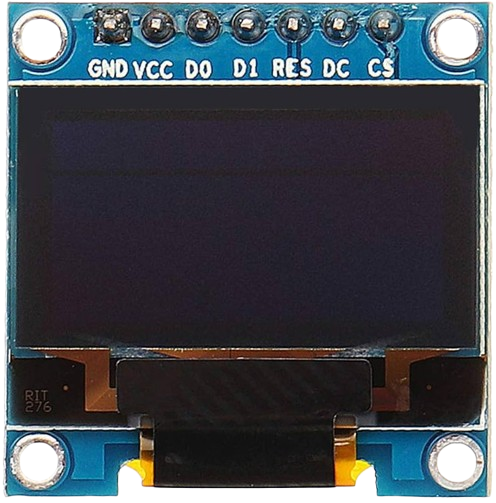

Image of Oled 12c 7 pin
Cirkit Designer LogoDesign with Oled 12c 7 pin in Cirkit Designer

Introduction

The OLED I2C 7-pin display module is a compact and versatile display component designed for use in embedded systems. It features a high-contrast OLED screen capable of displaying text, graphics, and animations. This module communicates using the I2C protocol, making it easy to interface with microcontrollers such as Arduino, Raspberry Pi, and other development boards. Its small size and low power consumption make it ideal for portable and battery-powered applications.

Explore Projects Built with Oled 12c 7 pin

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano-Based OLED Clock with RTC and LiPo Battery Charging
Image of RTC for Keyboard: A project utilizing Oled 12c 7 pin in a practical application
This circuit features an Arduino Nano connected to an OLED display and a DS3231 real-time clock (RTC) module for displaying the current time. The Arduino Nano is powered through a toggle switch connected to its VIN pin, with power supplied by a TP4056 charging module that charges and manages two 3.7V LiPo batteries connected in parallel. The OLED and RTC module communicate with the Arduino via I2C, with shared SDA and SCL lines connected to the A4 and A5 pins of the Arduino, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Voltage Monitoring System with OLED Display using ATmega328P
Image of Voltage Meter: A project utilizing Oled 12c 7 pin in a practical application
This circuit is a voltage monitoring and display system powered by a 3.7V LiPo battery. It uses an ATmega328P microcontroller to read voltage levels from a DC voltage sensor and displays the readings on a 1.3" OLED screen. The system includes a battery charger and a step-up boost converter to ensure stable operation and power management.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Controlled OLED Display with 9V Battery and Step-Down Converter
Image of digik: A project utilizing Oled 12c 7 pin in a practical application
This circuit features an Arduino UNO connected to a 128x64 OLED display via I2C communication lines (SDA and SCL), with the Arduino providing control signals to the display. A 9V battery powers the circuit through a 12v to 5v step-down power converter, which supplies a regulated 5V to both the Arduino and the OLED display. The embedded code on the Arduino is configured to blink an onboard LED with a 1-second interval.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Pro Mini Based CAN Bus Interface with OLED Display
Image of Fly Controller: A project utilizing Oled 12c 7 pin in a practical application
This circuit features an Arduino Pro Mini connected to an OLED display via I2C communication (SDA and SCL lines). The Arduino is also interfaced with an MCP2515 CAN controller, indicating the circuit's capability to communicate over a CAN network. Additionally, there are several terminal PCBs connected to various analog and digital pins of the Arduino, likely for sensor inputs or output controls.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Oled 12c 7 pin

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of RTC for Keyboard: A project utilizing Oled 12c 7 pin in a practical application
Arduino Nano-Based OLED Clock with RTC and LiPo Battery Charging
This circuit features an Arduino Nano connected to an OLED display and a DS3231 real-time clock (RTC) module for displaying the current time. The Arduino Nano is powered through a toggle switch connected to its VIN pin, with power supplied by a TP4056 charging module that charges and manages two 3.7V LiPo batteries connected in parallel. The OLED and RTC module communicate with the Arduino via I2C, with shared SDA and SCL lines connected to the A4 and A5 pins of the Arduino, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Voltage Meter: A project utilizing Oled 12c 7 pin in a practical application
Battery-Powered Voltage Monitoring System with OLED Display using ATmega328P
This circuit is a voltage monitoring and display system powered by a 3.7V LiPo battery. It uses an ATmega328P microcontroller to read voltage levels from a DC voltage sensor and displays the readings on a 1.3" OLED screen. The system includes a battery charger and a step-up boost converter to ensure stable operation and power management.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of digik: A project utilizing Oled 12c 7 pin in a practical application
Arduino UNO Controlled OLED Display with 9V Battery and Step-Down Converter
This circuit features an Arduino UNO connected to a 128x64 OLED display via I2C communication lines (SDA and SCL), with the Arduino providing control signals to the display. A 9V battery powers the circuit through a 12v to 5v step-down power converter, which supplies a regulated 5V to both the Arduino and the OLED display. The embedded code on the Arduino is configured to blink an onboard LED with a 1-second interval.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Fly Controller: A project utilizing Oled 12c 7 pin in a practical application
Arduino Pro Mini Based CAN Bus Interface with OLED Display
This circuit features an Arduino Pro Mini connected to an OLED display via I2C communication (SDA and SCL lines). The Arduino is also interfaced with an MCP2515 CAN controller, indicating the circuit's capability to communicate over a CAN network. Additionally, there are several terminal PCBs connected to various analog and digital pins of the Arduino, likely for sensor inputs or output controls.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Wearable devices
  • IoT projects
  • Data loggers
  • Home automation systems
  • Portable diagnostic tools
  • User interfaces for embedded systems

Technical Specifications

Key Technical Details

  • Display Type: OLED (Organic Light Emitting Diode)
  • Interface: I2C (Inter-Integrated Circuit)
  • Number of Pins: 7
  • Operating Voltage: 3.3V to 5V
  • Resolution: Typically 128x64 pixels (may vary by model)
  • Viewing Angle: >160°
  • Power Consumption: Low (varies with brightness and usage)
  • Driver IC: SSD1306 (commonly used)
  • Operating Temperature: -40°C to +85°C

Pin Configuration and Descriptions

The OLED I2C 7-pin module has the following pinout:

Pin Number Pin Name Description
1 GND Ground connection for the module. Connect to the ground of the power supply.
2 VCC Power supply input. Connect to 3.3V or 5V, depending on the module's specification.
3 SCL I2C clock line. Connect to the SCL pin of the microcontroller.
4 SDA I2C data line. Connect to the SDA pin of the microcontroller.
5 RES Reset pin. Used to reset the display. Connect to a GPIO pin or pull high.
6 DC Data/Command control pin. Determines whether data or commands are sent.
7 CS Chip Select pin. Used for SPI communication but often not required for I2C.

Note: Some modules may omit the CS pin for I2C-only operation. Always refer to the specific datasheet for your module.

Usage Instructions

Connecting the OLED I2C 7-Pin Module

  1. Power Supply: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
  2. I2C Communication: Connect the SCL and SDA pins to the corresponding I2C pins on your microcontroller. For Arduino UNO:
    • SCL connects to A5.
    • SDA connects to A4.
  3. Reset Pin: Connect the RES pin to a GPIO pin on the microcontroller or pull it high using a resistor.
  4. Data/Command Pin: Connect the DC pin to a GPIO pin on the microcontroller.
  5. Chip Select Pin: If present, connect the CS pin to ground for I2C operation.

Example Code for Arduino UNO

Below is an example of how to use the OLED I2C 7-pin module with an Arduino UNO. This code uses the popular Adafruit_SSD1306 and Adafruit_GFX libraries.

#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

// Define the screen width and height
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64

// Create an SSD1306 display object connected via I2C
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);

  // Initialize the OLED display
  if (!display.begin(SSD1306_I2C_ADDRESS, 0x3C)) {
    // If the display fails to initialize, print an error message
    Serial.println(F("SSD1306 allocation failed"));
    for (;;); // Halt the program
  }

  // Clear the display buffer
  display.clearDisplay();

  // Display a welcome message
  display.setTextSize(1); // Set text size to 1 (smallest)
  display.setTextColor(SSD1306_WHITE); // Set text color to white
  display.setCursor(0, 0); // Set cursor to top-left corner
  display.println(F("Hello, OLED!")); // Print text to the buffer
  display.display(); // Send buffer to the display
  delay(2000); // Wait for 2 seconds
}

void loop() {
  // Example: Draw a rectangle on the display
  display.clearDisplay(); // Clear the display buffer
  display.drawRect(10, 10, 50, 30, SSD1306_WHITE); // Draw a rectangle
  display.display(); // Send buffer to the display
  delay(1000); // Wait for 1 second
}

Important Considerations

  • I2C Address: The default I2C address for most SSD1306-based OLED modules is 0x3C. Some modules may use 0x3D. Check your module's documentation or use an I2C scanner to confirm.
  • Pull-Up Resistors: Ensure that the I2C lines (SCL and SDA) have appropriate pull-up resistors (typically 4.7kΩ). Some modules include these resistors onboard.
  • Power Supply: Verify the voltage requirements of your module. Supplying incorrect voltage can damage the display.

Troubleshooting and FAQs

Common Issues

  1. Display Not Turning On

    • Cause: Incorrect wiring or insufficient power supply.
    • Solution: Double-check all connections and ensure the power supply matches the module's requirements.
  2. No Output on Display

    • Cause: Incorrect I2C address or uninitialized display.
    • Solution: Verify the I2C address and ensure the display is properly initialized in the code.
  3. Flickering or Unstable Display

    • Cause: Noise on the I2C lines or insufficient pull-up resistors.
    • Solution: Add or replace pull-up resistors on the SCL and SDA lines.
  4. Partial or Distorted Graphics

    • Cause: Incorrect resolution settings in the code.
    • Solution: Ensure the resolution in the code matches the display's specifications (e.g., 128x64).

FAQs

Q: Can I use this module with a 3.3V microcontroller?
A: Yes, the module is compatible with both 3.3V and 5V systems. Ensure the VCC pin is connected to the appropriate voltage.

Q: How do I find the I2C address of my module?
A: Use an I2C scanner sketch on your microcontroller to detect the address. The default is usually 0x3C or 0x3D.

Q: Can I use this module with SPI instead of I2C?
A: While this module is designed for I2C, some variants may support SPI. Check the datasheet for details.

Q: What libraries are required for Arduino?
A: The Adafruit_SSD1306 and Adafruit_GFX libraries are commonly used. Install them via the Arduino Library Manager.

By following this documentation, you can successfully integrate and use the OLED I2C 7-pin display module in your projects!
