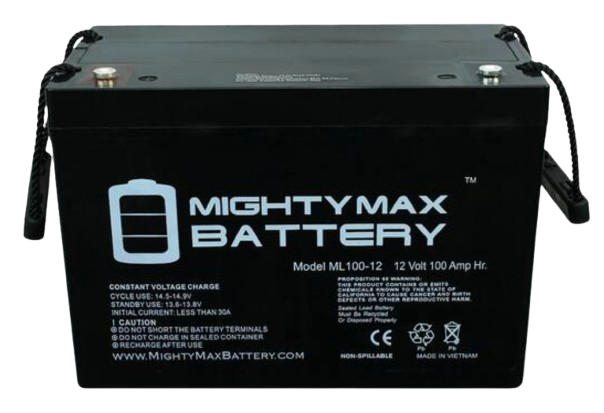

How to Use 12V DC lead-acid rechargeable battery: Examples, Pinouts, and Specs

The 12V DC lead-acid rechargeable battery is a widely used energy storage device that provides a nominal voltage of 12 volts. It operates using lead dioxide and sponge lead plates immersed in an electrolyte solution, typically sulfuric acid. This design allows for efficient energy storage, reliable discharge, and recharging capabilities.

Common applications include:

• Automotive systems (e.g., car batteries)
• Uninterruptible Power Supplies (UPS) for backup power
• Solar energy storage systems
• Emergency lighting
• Electric scooters and wheelchairs

Its robust design and ability to deliver high current make it ideal for both starting engines and powering devices over extended periods.

Below are the key technical details of a standard 12V DC lead-acid rechargeable battery. Note that specific values may vary depending on the manufacturer and model.

The 12V lead-acid battery typically has two terminals:

Ensure proper polarity when connecting the battery to avoid damage to the battery or connected devices.

1. Connecting the Battery:

   • Identify the positive (+) and negative (-) terminals.
   • Use appropriately rated wires and connectors to attach the battery to your circuit.
   • Ensure the load does not exceed the battery's maximum discharge current.

2. Charging the Battery:

   • Use a compatible lead-acid battery charger with a voltage output of 13.8V to 14.4V.
   • Avoid overcharging by using a charger with automatic cutoff or float charging capabilities.
   • Monitor the charging process to prevent overheating.

3. Discharging the Battery:

   • Do not discharge the battery below 10.5V to avoid deep discharge, which can reduce its lifespan.
   • Use a low-voltage cutoff circuit to protect the battery from over-discharge.

• Ventilation: Lead-acid batteries can emit hydrogen gas during charging. Use the battery in a well-ventilated area to prevent gas buildup.
• Polarity: Always double-check the polarity before connecting the battery to a circuit.
• Storage: Store the battery in a cool, dry place. Recharge it every 3-6 months if not in use to prevent sulfation.
• Temperature: Avoid exposing the battery to extreme temperatures, as this can affect performance and lifespan.
• Recycling: Dispose of the battery responsibly at a certified recycling facility.

A 12V lead-acid battery can power an Arduino UNO through a voltage regulator or a DC-DC converter to step down the voltage to 5V. Below is an example of how to safely connect the battery to an Arduino UNO using a 5V voltage regulator.

• Components Needed:
  • 12V lead-acid battery
  • LM7805 voltage regulator
  • Capacitors (10µF and 0.1µF)
  • Arduino UNO
  • Wires and connectors

// Example code to blink an LED connected to an Arduino UNO powered by a 12V battery
// Ensure the 12V battery is stepped down to 5V using a voltage regulator.

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

1. Battery Not Charging:

   • Cause: Faulty charger, damaged battery, or incorrect charging voltage.
   • Solution: Check the charger output voltage and connections. Replace the charger or battery if necessary.

2. Battery Drains Quickly:

   • Cause: High self-discharge rate, sulfation, or excessive load.
   • Solution: Recharge the battery fully and test with a lower load. If the issue persists, the battery may need replacement.

3. Overheating During Charging:

   • Cause: Overcharging or poor ventilation.
   • Solution: Use a charger with automatic cutoff and ensure proper ventilation.

4. Low Voltage Output:

   • Cause: Deep discharge or aging battery.
   • Solution: Recharge the battery immediately. If the voltage remains low, the battery may need replacement.

1. Can I use a 12V lead-acid battery indoors?

   • Yes, but ensure proper ventilation to prevent hydrogen gas buildup during charging.

2. How long does a 12V lead-acid battery last?

   • The lifespan depends on usage and maintenance. Typically, it lasts 3-5 years with proper care.

3. Can I connect multiple batteries together?

   • Yes, you can connect batteries in series to increase voltage or in parallel to increase capacity. Ensure all batteries are of the same type and capacity.

4. What happens if I over-discharge the battery?

   • Over-discharging can cause sulfation, reducing the battery's capacity and lifespan. Use a low-voltage cutoff to prevent this.

By following these guidelines, you can ensure safe and efficient use of your 12V DC lead-acid rechargeable battery.
