How to Use LM324: Examples, Pinouts, and Specs

Image of LM324
Cirkit Designer LogoDesign with LM324 in Cirkit Designer

Introduction

The LM324 is a quad operational amplifier (op-amp) manufactured by LM. It is designed to operate on either a single power supply or dual power supplies, making it highly versatile for a wide range of applications. The LM324 features low input bias current, high gain, and a wide bandwidth, making it suitable for signal conditioning, filtering, and amplification tasks. Its ability to operate at low power and its cost-effectiveness make it a popular choice in both commercial and hobbyist electronics projects.

Explore Projects Built with LM324

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
LM324-Based Analog Light Sensor with LED Indicators
Image of 2: A project utilizing LM324 in a practical application
This circuit is designed to detect varying light levels using phototransistors and process these signals with LM324 operational amplifiers. The output of the amplifiers may be used to activate LEDs, indicating the presence or absence of light. Trimmer potentiometers allow for adjustment of the detection thresholds, and resistors are used for current limiting and biasing.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled Traffic Light and Multi-Motor Driver System
Image of Projeto final: A project utilizing LM324 in a practical application
This circuit features an ESP32 microcontroller connected to a traffic light module and multiple DC motors via two L298N motor drivers. The ESP32 controls the traffic light states and motor operations, likely for a model intersection with moving parts. The circuit also includes MT3608 boost converters to step up the voltage from a 4 x AAA battery mount to the required levels for the motor drivers, and an MG996R servo motor controlled directly by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
LED Indicator System with Power Stabilizer and Measurement Meters
Image of MEMEK: A project utilizing LM324 in a practical application
This circuit is a power distribution and monitoring system that includes multiple LEDs for status indication, a stabilizer module, and measurement instruments such as voltmeters and ammeters. It is designed to supply power to a computer and monitor the power quality and current flow, with protection provided by MCBs (Miniature Circuit Breakers).
Cirkit Designer LogoOpen Project in Cirkit Designer
PLC-Controlled Power Window System with Infrared Sensing and Relay Module
Image of wiring FYP: A project utilizing LM324 in a practical application
This circuit is designed to control a motorized window system using a PLC (Programmable Logic Controller) and an array of sensors and switches. It includes power supplies for 12V and 24V DC, an MCB (Miniature Circuit Breaker) for protection, and a relay module interfaced with an Arduino for additional control logic. The PLC manages inputs from pushbuttons, a 3-position switch, infrared proximity sensors, and an emergency stop, and it controls outputs such as the motor speed controller, lamps, and solenoid valves.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LM324

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of 2: A project utilizing LM324 in a practical application
LM324-Based Analog Light Sensor with LED Indicators
This circuit is designed to detect varying light levels using phototransistors and process these signals with LM324 operational amplifiers. The output of the amplifiers may be used to activate LEDs, indicating the presence or absence of light. Trimmer potentiometers allow for adjustment of the detection thresholds, and resistors are used for current limiting and biasing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Projeto final: A project utilizing LM324 in a practical application
ESP32-Controlled Traffic Light and Multi-Motor Driver System
This circuit features an ESP32 microcontroller connected to a traffic light module and multiple DC motors via two L298N motor drivers. The ESP32 controls the traffic light states and motor operations, likely for a model intersection with moving parts. The circuit also includes MT3608 boost converters to step up the voltage from a 4 x AAA battery mount to the required levels for the motor drivers, and an MG996R servo motor controlled directly by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of MEMEK: A project utilizing LM324 in a practical application
LED Indicator System with Power Stabilizer and Measurement Meters
This circuit is a power distribution and monitoring system that includes multiple LEDs for status indication, a stabilizer module, and measurement instruments such as voltmeters and ammeters. It is designed to supply power to a computer and monitor the power quality and current flow, with protection provided by MCBs (Miniature Circuit Breakers).
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of wiring FYP: A project utilizing LM324 in a practical application
PLC-Controlled Power Window System with Infrared Sensing and Relay Module
This circuit is designed to control a motorized window system using a PLC (Programmable Logic Controller) and an array of sensors and switches. It includes power supplies for 12V and 24V DC, an MCB (Miniature Circuit Breaker) for protection, and a relay module interfaced with an Arduino for additional control logic. The PLC manages inputs from pushbuttons, a 3-position switch, infrared proximity sensors, and an emergency stop, and it controls outputs such as the motor speed controller, lamps, and solenoid valves.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Signal amplification
  • Active filters
  • Voltage comparators
  • Oscillators
  • Analog signal processing
  • Sensor signal conditioning

Technical Specifications

The LM324 is a robust and reliable component with the following key technical specifications:

Parameter Value
Supply Voltage (Vcc) Single supply: 3V to 32V
Dual supply: ±1.5V to ±16V
Input Offset Voltage Typically 2mV, maximum 7mV
Input Bias Current Typically 45nA, maximum 250nA
Output Voltage Swing 0V to (Vcc - 1.5V)
Gain Bandwidth Product 1 MHz
Slew Rate 0.5 V/µs
Operating Temperature Range -40°C to +85°C
Package Types DIP-14, SOIC-14, TSSOP-14

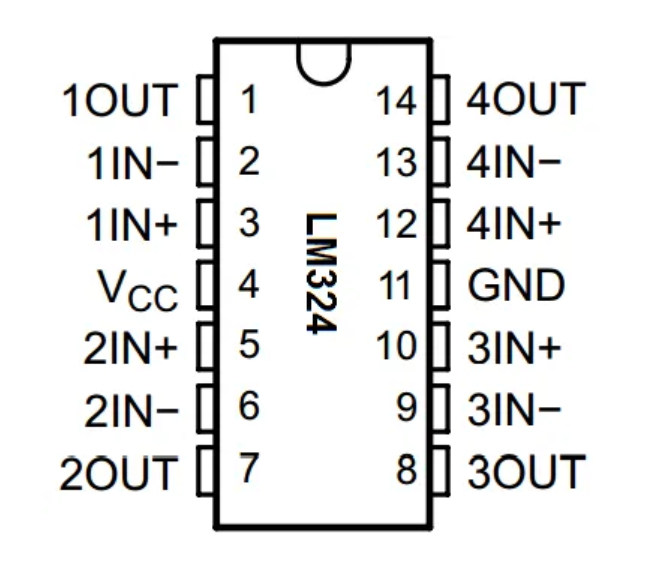

Pin Configuration

The LM324 is available in a 14-pin package. The pinout and descriptions are as follows:

Pin Number Pin Name Description
1 Output 1 Output of op-amp 1
2 Inverting Input 1 Inverting input of op-amp 1
3 Non-Inverting Input 1 Non-inverting input of op-amp 1
4 Vcc Positive power supply
5 Non-Inverting Input 2 Non-inverting input of op-amp 2
6 Inverting Input 2 Inverting input of op-amp 2
7 Output 2 Output of op-amp 2
8 Output 3 Output of op-amp 3
9 Inverting Input 3 Inverting input of op-amp 3
10 Non-Inverting Input 3 Non-inverting input of op-amp 3
11 GND Ground (0V reference)
12 Non-Inverting Input 4 Non-inverting input of op-amp 4
13 Inverting Input 4 Inverting input of op-amp 4
14 Output 4 Output of op-amp 4

Usage Instructions

How to Use the LM324 in a Circuit

  1. Power Supply: Connect the Vcc pin (pin 4) to the positive power supply and the GND pin (pin 11) to ground. For dual-supply operation, connect Vcc to the positive voltage and GND to the negative voltage.
  2. Input Connections: Connect the signal to be amplified to the non-inverting or inverting input of the desired op-amp. Use appropriate resistors or capacitors for feedback and gain control.
  3. Output: The amplified signal will be available at the corresponding output pin.
  4. Bypass Capacitor: Place a decoupling capacitor (e.g., 0.1 µF) between Vcc and GND to reduce noise and improve stability.

Important Considerations

  • Ensure the input voltage does not exceed the supply voltage range.
  • Use proper feedback resistors to set the desired gain and stability.
  • Avoid driving capacitive loads directly; use a small resistor in series with the output if necessary.
  • For low-noise applications, minimize the length of input and output traces.

Example: Connecting LM324 to an Arduino UNO

The LM324 can be used to amplify an analog signal (e.g., from a sensor) before feeding it into an Arduino UNO's analog input pin. Below is an example circuit and Arduino code:

Circuit Description

  • Connect the sensor output to the non-inverting input of one of the LM324 op-amps.
  • Use a resistor network to set the gain of the op-amp.
  • Connect the op-amp output to an analog input pin on the Arduino UNO.

Arduino Code

// Example code to read an amplified signal from the LM324 and display it
// on the serial monitor.

const int analogPin = A0; // Analog pin connected to LM324 output

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
  int sensorValue = analogRead(analogPin); // Read the analog value
  float voltage = sensorValue * (5.0 / 1023.0); // Convert to voltage
  Serial.print("Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");
  delay(500); // Wait for 500ms before the next reading
}

Troubleshooting and FAQs

Common Issues

  1. No Output Signal:

    • Check the power supply connections (Vcc and GND).
    • Verify that the input signal is within the acceptable range.
    • Ensure proper feedback resistor configuration.
  2. Distorted Output:

    • Check if the op-amp is operating within its linear range.
    • Verify that the load impedance is not too low.
    • Add a bypass capacitor to reduce noise.
  3. High Noise Levels:

    • Use shorter wires for input and output connections.
    • Add decoupling capacitors near the power supply pins.
  4. Overheating:

    • Ensure the supply voltage does not exceed the maximum rating.
    • Check for excessive current draw due to incorrect circuit design.

FAQs

Q: Can the LM324 operate with a single power supply?
A: Yes, the LM324 is designed to operate with a single power supply (3V to 32V) or dual power supplies (±1.5V to ±16V).

Q: What is the maximum output voltage swing of the LM324?
A: The output voltage swing is typically 0V to (Vcc - 1.5V) when powered by a single supply.

Q: Can the LM324 drive capacitive loads?
A: The LM324 can drive capacitive loads, but it is recommended to use a small resistor (e.g., 10Ω) in series with the output to improve stability.

Q: Is the LM324 suitable for audio applications?
A: While the LM324 can be used for basic audio applications, its limited bandwidth and slew rate may not be ideal for high-fidelity audio processing.
