The Adafruit BMP581 (Part ID: 6407) is a high-precision sensor designed to measure temperature and barometric pressure. This sensor provides accurate environmental data, making it ideal for applications such as weather monitoring, altitude measurement, and environmental sensing. With its compact size and low power consumption, the BMP581 is well-suited for integration into portable devices, IoT projects, and embedded systems.

• Weather stations and environmental monitoring
• Altitude measurement for drones and aviation
• Indoor navigation and HVAC systems
• IoT devices and smart home applications

The Adafruit BMP581 is a highly capable sensor with the following key specifications:

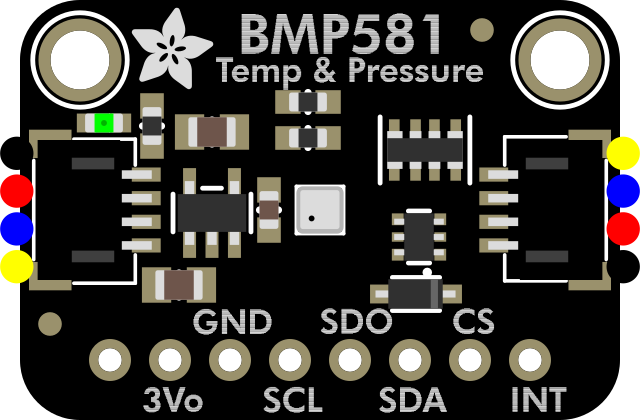

The BMP581 sensor is typically available on a breakout board from Adafruit. Below is the pin configuration for the breakout board:

To use the BMP581 with an Arduino UNO, follow these steps:

1. Connect the VIN pin of the BMP581 to the 3.3V pin on the Arduino.
2. Connect the GND pin of the BMP581 to the GND pin on the Arduino.
3. Connect the SCL pin of the BMP581 to the A5 pin on the Arduino (I2C clock line).
4. Connect the SDA pin of the BMP581 to the A4 pin on the Arduino (I2C data line).

Adafruit provides an easy-to-use library for the BMP581. To install it:

1. Open the Arduino IDE.
2. Go to Sketch > Include Library > Manage Libraries.
3. Search for "Adafruit BMP581" in the Library Manager.
4. Install the library.

The following example demonstrates how to read temperature and pressure data from the BMP581:

#include <Wire.h>
#include <Adafruit_Sensor.h>
#include <Adafruit_BMP581.h>

// Create an instance of the BMP581 sensor
Adafruit_BMP581 bmp;

// Setup function to initialize the sensor
void setup() {
  Serial.begin(9600);
  while (!Serial); // Wait for Serial Monitor to open

  // Initialize the BMP581 sensor
  if (!bmp.begin()) {
    Serial.println("Could not find a valid BMP581 sensor, check wiring!");
    while (1); // Halt execution if sensor initialization fails
  }

  Serial.println("BMP581 sensor initialized successfully!");
}

// Main loop to read and display sensor data
void loop() {
  // Read temperature in Celsius
  float temperature = bmp.readTemperature();
  // Read pressure in hPa
  float pressure = bmp.readPressure();

  // Print the readings to the Serial Monitor
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" °C");

  Serial.print("Pressure: ");
  Serial.print(pressure);
  Serial.println(" hPa");

  delay(1000); // Wait 1 second before the next reading
}

• Ensure the BMP581 is powered with a voltage between 1.65V and 3.6V. Exceeding this range may damage the sensor.
• Use pull-up resistors (typically 4.7kΩ) on the SDA and SCL lines if they are not already present on the breakout board.
• For I2C communication, ensure the correct I2C address (0x77 or 0x76) is used in your code.

1. Sensor not detected:

   • Verify the wiring connections, especially the SDA and SCL lines.
   • Ensure the correct I2C address is being used in the code.
   • Check if pull-up resistors are required on the I2C lines.

2. Incorrect readings:

   • Ensure the sensor is not exposed to extreme environmental conditions beyond its operating range.
   • Verify that the sensor is properly calibrated (if necessary).

3. Library installation errors:

   • Ensure the Arduino IDE is updated to the latest version.
   • Check for any conflicting libraries and remove them.

Q: Can the BMP581 be used with a 5V microcontroller?
A: Yes, but you must use a logic level shifter to safely interface the 3.3V I2C lines with the 5V microcontroller.

Q: How do I change the I2C address of the BMP581?
A: The I2C address can be changed by connecting the SDO pin to GND (0x76) or leaving it unconnected (0x77).

Q: Can the BMP581 measure altitude directly?
A: While the BMP581 does not measure altitude directly, you can calculate it using the pressure readings and a known reference pressure.

By following this documentation, you can effectively integrate the Adafruit BMP581 into your projects and achieve accurate environmental sensing.
