How to Use NRF24: Examples, Pinouts, and Specs

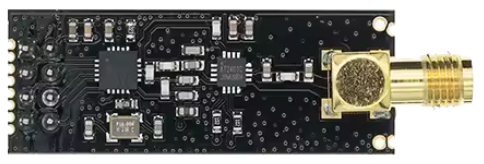

Image of NRF24
Cirkit Designer LogoDesign with NRF24 in Cirkit Designer

Introduction

The NRF24 is a low-power, 2.4 GHz wireless transceiver module designed for short-range communication. Manufactured by NRF24, this module is widely used in applications such as remote controls, wireless sensors, and IoT devices. It supports multiple communication channels and can operate in both point-to-point and point-to-multipoint configurations, making it a versatile choice for wireless data transmission.

Explore Projects Built with NRF24

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano and NRF24L01 Based Wireless Remote Control
Image of P.T.S CAR , REMOTE , ADVANCE , FINAL V1: A project utilizing NRF24 in a practical application
This circuit features an Arduino Nano microcontroller interfaced with an NRF24L01 wireless transceiver module, powered by a 4 x AAA battery mount. Four pushbuttons are connected to the Arduino's digital inputs with pull-up resistors, and they are used to send different wireless commands via the NRF24L01 module when pressed. The Arduino's SPI interface (D11/MOSI, D12/MISO, D13/SCK) is used for communication with the NRF24L01, and digital pins D9 and D10 are used for the module's CE and CSN pins, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO with NRF24L01 Wireless Communication Module
Image of Gesture Control Drone: A project utilizing NRF24 in a practical application
This circuit connects an Arduino UNO with an NRF24L01 wireless transceiver module. The Arduino provides power and SPI communication lines to the NRF24L01, enabling it to send and receive wireless data. The code for the Arduino is set up with empty setup and loop functions, ready for the user to implement the wireless communication logic.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Controlled NRF24L01 Wireless Communication System
Image of creato 3.0 receiver circuit diagram: A project utilizing NRF24 in a practical application
This circuit features an Arduino Nano microcontroller interfaced with an NRF24L01 wireless communication module. The Arduino Nano is configured to control multiple devices through PWM signals on pins D2, D3, D4, and D5, which are connected to four 3-pin male connectors. The NRF24L01 module is connected to the Arduino's SPI interface (MOSI, MISO, SCK) and digital pins D7 and D8 for CE and CSN signals, enabling wireless communication capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO with NRF24L01 Wireless Communication Module
Image of Nrf checker: A project utilizing NRF24 in a practical application
This circuit connects an Arduino UNO with an NRF24L01 wireless transceiver module. The Arduino provides power and SPI communication lines to the NRF24L01, enabling wireless data transmission. The code for the Arduino is currently a template with empty setup and loop functions, indicating that the specific functionality for the wireless communication has yet to be implemented.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with NRF24

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of P.T.S CAR , REMOTE , ADVANCE , FINAL V1: A project utilizing NRF24 in a practical application
Arduino Nano and NRF24L01 Based Wireless Remote Control
This circuit features an Arduino Nano microcontroller interfaced with an NRF24L01 wireless transceiver module, powered by a 4 x AAA battery mount. Four pushbuttons are connected to the Arduino's digital inputs with pull-up resistors, and they are used to send different wireless commands via the NRF24L01 module when pressed. The Arduino's SPI interface (D11/MOSI, D12/MISO, D13/SCK) is used for communication with the NRF24L01, and digital pins D9 and D10 are used for the module's CE and CSN pins, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Gesture Control Drone: A project utilizing NRF24 in a practical application
Arduino UNO with NRF24L01 Wireless Communication Module
This circuit connects an Arduino UNO with an NRF24L01 wireless transceiver module. The Arduino provides power and SPI communication lines to the NRF24L01, enabling it to send and receive wireless data. The code for the Arduino is set up with empty setup and loop functions, ready for the user to implement the wireless communication logic.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of creato 3.0 receiver circuit diagram: A project utilizing NRF24 in a practical application
Arduino Nano Controlled NRF24L01 Wireless Communication System
This circuit features an Arduino Nano microcontroller interfaced with an NRF24L01 wireless communication module. The Arduino Nano is configured to control multiple devices through PWM signals on pins D2, D3, D4, and D5, which are connected to four 3-pin male connectors. The NRF24L01 module is connected to the Arduino's SPI interface (MOSI, MISO, SCK) and digital pins D7 and D8 for CE and CSN signals, enabling wireless communication capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Nrf checker: A project utilizing NRF24 in a practical application
Arduino UNO with NRF24L01 Wireless Communication Module
This circuit connects an Arduino UNO with an NRF24L01 wireless transceiver module. The Arduino provides power and SPI communication lines to the NRF24L01, enabling wireless data transmission. The code for the Arduino is currently a template with empty setup and loop functions, indicating that the specific functionality for the wireless communication has yet to be implemented.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Wireless sensor networks
  • Home automation systems
  • Remote controls for drones, toys, and appliances
  • Internet of Things (IoT) devices
  • Industrial monitoring and control systems

Technical Specifications

The NRF24 module is designed to provide reliable wireless communication with minimal power consumption. Below are its key technical specifications:

Parameter Value
Operating Frequency 2.4 GHz ISM band
Operating Voltage 1.9V to 3.6V
Communication Range Up to 100 meters (line of sight)
Data Rate 250 kbps, 1 Mbps, 2 Mbps
Power Consumption 11.3 mA (transmit mode at 0 dBm)
Sleep Mode Current 900 nA
Modulation Technique GFSK (Gaussian Frequency Shift Keying)
Number of Channels 125
Maximum Payload Size 32 bytes
SPI Clock Speed Up to 10 MHz

Pin Configuration and Descriptions

The NRF24 module typically has 8 pins. Below is the pinout and description:

Pin Name Description
1 GND Ground connection
2 VCC Power supply (1.9V to 3.6V)
3 CE Chip Enable: Activates the module for transmission or reception
4 CSN Chip Select Not: Used to enable SPI communication
5 SCK Serial Clock: SPI clock input
6 MOSI Master Out Slave In: SPI data input
7 MISO Master In Slave Out: SPI data output
8 IRQ Interrupt Request: Indicates data received or transmission complete (optional)

Usage Instructions

How to Use the NRF24 in a Circuit

  1. Power Supply: Connect the VCC pin to a 3.3V power source. Do not exceed 3.6V as it may damage the module.
  2. SPI Communication: Connect the SPI pins (CSN, SCK, MOSI, MISO) to the corresponding SPI pins on your microcontroller.
  3. Chip Enable (CE): Use a GPIO pin on your microcontroller to control the CE pin. Set it high to enable the module for transmission or reception.
  4. Interrupt Pin (IRQ): Optionally connect the IRQ pin to a GPIO pin on your microcontroller to handle interrupts for data reception or transmission completion.
  5. Antenna: Ensure the onboard antenna or external antenna is unobstructed for optimal signal strength.

Important Considerations

  • Use a 10 µF capacitor between VCC and GND to stabilize the power supply.
  • Keep the module away from metal objects or other RF devices to minimize interference.
  • Use proper shielding and grounding techniques in noisy environments.

Example: Connecting NRF24 to Arduino UNO

Below is an example of how to connect the NRF24 module to an Arduino UNO and send data wirelessly.

Wiring Diagram

NRF24 Pin Arduino UNO Pin
GND GND
VCC 3.3V
CE Pin 9
CSN Pin 10
SCK Pin 13
MOSI Pin 11
MISO Pin 12

Arduino Code Example

#include <SPI.h>
#include <nRF24L01.h>
#include <RF24.h>

// Define CE and CSN pins
#define CE_PIN 9
#define CSN_PIN 10

// Create an RF24 object
RF24 radio(CE_PIN, CSN_PIN);

// Define the address of the receiver
const byte address[6] = "00001";

void setup() {
  Serial.begin(9600); // Initialize serial communication
  radio.begin();      // Initialize the NRF24 module
  radio.openWritingPipe(address); // Set the receiver address
  radio.setPALevel(RF24_PA_LOW);  // Set power level to low
  radio.stopListening();          // Set module to transmit mode
}

void loop() {
  const char text[] = "Hello, World!"; // Data to send
  bool success = radio.write(&text, sizeof(text)); // Send data

  if (success) {
    Serial.println("Data sent successfully!");
  } else {
    Serial.println("Data transmission failed.");
  }

  delay(1000); // Wait 1 second before sending again
}

Best Practices

  • Use a level shifter if your microcontroller operates at 5V logic levels, as the NRF24 operates at 3.3V.
  • Test the module in a controlled environment before deploying it in the field.
  • Use libraries like RF24 for easier implementation and configuration.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Communication Between Modules

    • Ensure both modules are configured with the same address and channel.
    • Verify the wiring and connections, especially the SPI pins.
    • Check the power supply voltage (must be between 1.9V and 3.6V).
  2. Short Communication Range

    • Ensure the antenna is unobstructed and positioned correctly.
    • Reduce interference by moving the module away from other RF devices.
    • Use a lower data rate (e.g., 250 kbps) for better range.
  3. Module Not Responding

    • Verify that the CE and CSN pins are correctly connected and controlled by the microcontroller.
    • Check for loose connections or damaged components.

FAQs

Q: Can the NRF24 module communicate with multiple devices?
A: Yes, the NRF24 supports point-to-multipoint communication using unique addresses for each device.

Q: What is the maximum data rate of the NRF24?
A: The NRF24 supports data rates of 250 kbps, 1 Mbps, and 2 Mbps.

Q: Can I use the NRF24 with a 5V microcontroller?
A: Yes, but you must use a level shifter or voltage divider to ensure the SPI pins operate at 3.3V logic levels.

Q: How can I increase the communication range?
A: Use a lower data rate, ensure a clear line of sight, and consider using an external antenna if supported.

This concludes the documentation for the NRF24 module.
