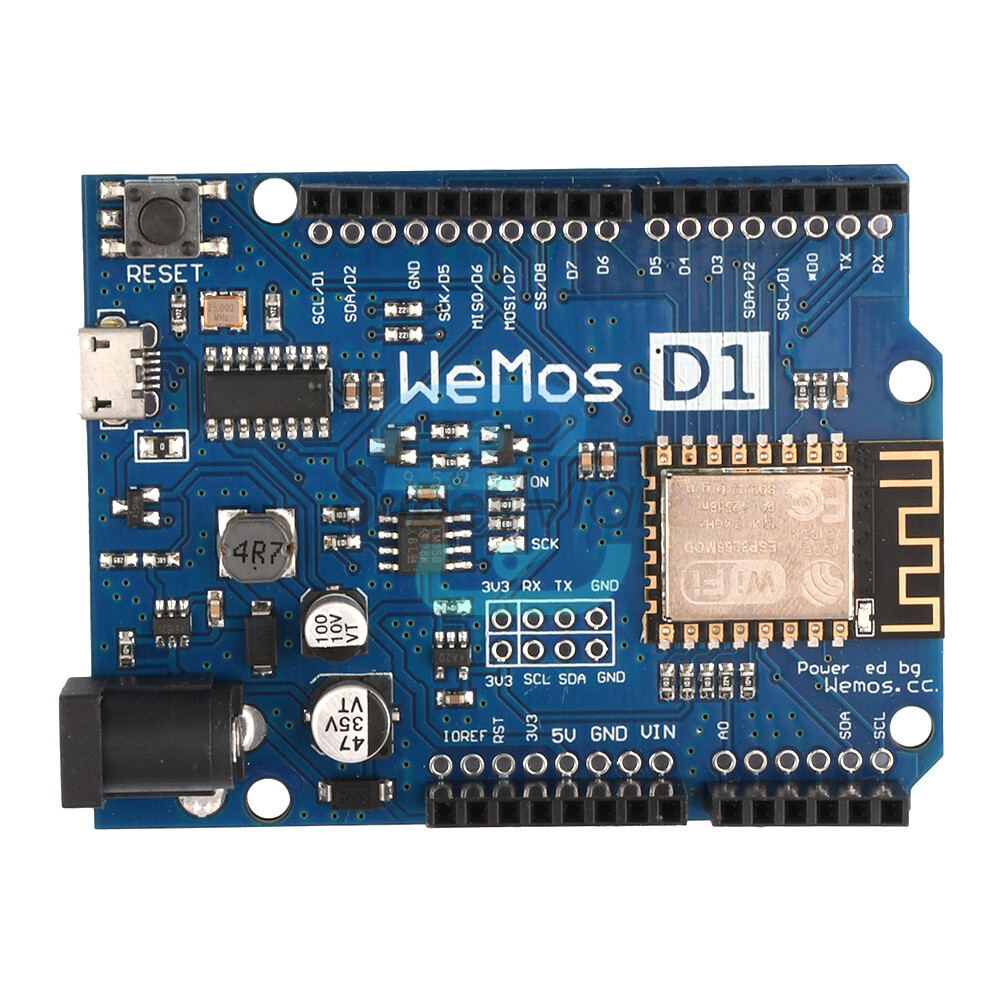

Image of Wemos D1 R2
Cirkit Designer LogoDesign with Wemos D1 R2 in Cirkit Designer

Introduction

The Wemos D1 R2 is a microcontroller board developed by Arduino, featuring the ESP8266 Wi-Fi module. It is specifically designed for Internet of Things (IoT) applications, offering built-in Wi-Fi connectivity and a versatile set of GPIO pins for interfacing with sensors, actuators, and other peripherals. The board is compatible with the Arduino IDE, making it accessible for both beginners and experienced developers.

Explore Projects Built with Wemos D1 R2

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Wi-Fi Controlled RGB LED Strip with Battery Management System
Image of OpenTimingProject - Basic node: A project utilizing Wemos D1 R2 in a practical application
This circuit features a Wemos D1 Mini microcontroller powered by a 18650 Li-ion battery through a TP4056 charging module, with power control managed by a rocker switch. The Wemos D1 Mini controls a WS2812 RGB LED strip, with the data line connected to the D4 pin and power lines controlled by the switch. Multiple pushbuttons are connected to the D0 pin through a resistor, likely for user input to control the LED strip or other functions in the microcontroller's code.
Cirkit Designer LogoOpen Project in Cirkit Designer
I2C-Controlled OLED Display with External EEPROM and Interactive Pushbuttons
Image of godmode: A project utilizing Wemos D1 R2 in a practical application
This is a microcontroller-based interactive device featuring a Wemos D1 Mini, an OLED display, external EEPROM, and an I/O expander. It includes user input buttons and status LEDs, with potential MIDI interface capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Wi-Fi Temperature and Humidity Monitor with Wemos D1 Mini and DHT22
Image of Temp, humidity battery powered D1 sensor: A project utilizing Wemos D1 R2 in a practical application
This circuit appears to be a sensor node with a DHT22 temperature and humidity sensor interfaced with a Wemos D1 Mini microcontroller. The Wemos D1 Mini is powered by a 18650 Li-ion battery, which is charged and protected by a TP4056 charging module. The sensor's data output is connected to the D4 pin of the Wemos D1 Mini for digital signal processing, and voltage dividers made of resistors are likely used for level shifting or pull-up/pull-down purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Wemos D1 Mini with LoRa SX1278 Communication Module
Image of receiver: A project utilizing Wemos D1 R2 in a practical application
This circuit connects a Wemos D1 mini microcontroller to a LoRa Ra-02 SX1278 module for long-range wireless communication. The Wemos D1 mini's digital pins (D1, D2, D3, D5, D6, D7) are interfaced with the LoRa module's control pins (NSS, DI00, RST, SCK, MISO, MOSI) to enable SPI communication and control signals. The common ground and 3.3V power supply ensure that both components operate at the same voltage level, facilitating proper communication between them.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Wemos D1 R2

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of OpenTimingProject - Basic node: A project utilizing Wemos D1 R2 in a practical application
Wi-Fi Controlled RGB LED Strip with Battery Management System
This circuit features a Wemos D1 Mini microcontroller powered by a 18650 Li-ion battery through a TP4056 charging module, with power control managed by a rocker switch. The Wemos D1 Mini controls a WS2812 RGB LED strip, with the data line connected to the D4 pin and power lines controlled by the switch. Multiple pushbuttons are connected to the D0 pin through a resistor, likely for user input to control the LED strip or other functions in the microcontroller's code.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of godmode: A project utilizing Wemos D1 R2 in a practical application
I2C-Controlled OLED Display with External EEPROM and Interactive Pushbuttons
This is a microcontroller-based interactive device featuring a Wemos D1 Mini, an OLED display, external EEPROM, and an I/O expander. It includes user input buttons and status LEDs, with potential MIDI interface capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Temp, humidity battery powered D1 sensor: A project utilizing Wemos D1 R2 in a practical application
Battery-Powered Wi-Fi Temperature and Humidity Monitor with Wemos D1 Mini and DHT22
This circuit appears to be a sensor node with a DHT22 temperature and humidity sensor interfaced with a Wemos D1 Mini microcontroller. The Wemos D1 Mini is powered by a 18650 Li-ion battery, which is charged and protected by a TP4056 charging module. The sensor's data output is connected to the D4 pin of the Wemos D1 Mini for digital signal processing, and voltage dividers made of resistors are likely used for level shifting or pull-up/pull-down purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of receiver: A project utilizing Wemos D1 R2 in a practical application
Wemos D1 Mini with LoRa SX1278 Communication Module
This circuit connects a Wemos D1 mini microcontroller to a LoRa Ra-02 SX1278 module for long-range wireless communication. The Wemos D1 mini's digital pins (D1, D2, D3, D5, D6, D7) are interfaced with the LoRa module's control pins (NSS, DI00, RST, SCK, MISO, MOSI) to enable SPI communication and control signals. The common ground and 3.3V power supply ensure that both components operate at the same voltage level, facilitating proper communication between them.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Home automation systems
  • IoT-enabled devices and sensors
  • Wireless data logging
  • Remote monitoring and control
  • Prototyping smart devices

Technical Specifications

The Wemos D1 R2 is equipped with robust hardware features that make it suitable for a wide range of IoT projects. Below are the key technical details:

Key Technical Details

Specification Value
Microcontroller ESP8266
Operating Voltage 3.3V
Input Voltage 7-12V (via barrel jack) or 5V (via USB)
Digital I/O Pins 11
Analog Input Pins 1 (10-bit resolution, 0-3.3V range)
Clock Speed 80 MHz
Flash Memory 4 MB
Wi-Fi Standard 802.11 b/g/n
USB Interface Micro-USB
Dimensions 68.6mm x 53.4mm

Pin Configuration and Descriptions

The Wemos D1 R2 pinout is similar to the Arduino UNO, but it operates at 3.3V logic levels. Below is the pin configuration:

Pin Name Description
D0-D8 Digital GPIO pins (can be used for input/output, some support PWM)
A0 Analog input pin (0-3.3V range)
TX UART Transmit pin (used for serial communication)
RX UART Receive pin (used for serial communication)
G Ground pin
3V3 3.3V power output
5V 5V power output (only available when powered via USB or barrel jack)
RST Reset pin (used to reset the microcontroller)

Usage Instructions

The Wemos D1 R2 is easy to use and program, especially with the Arduino IDE. Below are the steps and best practices for using the board in your projects.

How to Use the Wemos D1 R2 in a Circuit

  1. Powering the Board:

    • Use a Micro-USB cable to power the board and upload code.
    • Alternatively, supply 7-12V via the barrel jack for standalone operation.
  2. Programming the Board:

    • Install the Arduino IDE and add the ESP8266 board package via the Board Manager.
    • Select "Wemos D1 R2 & mini" from the Tools > Board menu.
    • Connect the board to your computer via USB and select the appropriate COM port.
  3. Connecting Peripherals:

    • Use the GPIO pins (D0-D8) for digital input/output.
    • Connect analog sensors to the A0 pin, ensuring the voltage does not exceed 3.3V.
    • Use the 3V3 or 5V pins to power external components.
  4. Uploading Code:

    • Write your code in the Arduino IDE and click the "Upload" button.
    • The onboard LED (connected to D4) can be used for basic testing.

Important Considerations and Best Practices

  • Voltage Levels: The GPIO pins operate at 3.3V logic levels. Avoid connecting 5V signals directly to the pins to prevent damage.
  • Wi-Fi Configuration: Use the ESP8266WiFi library to configure and manage Wi-Fi connections.
  • Power Supply: Ensure a stable power supply, especially when using Wi-Fi, as it can draw significant current.

Example Code for Arduino IDE

Below is an example code to connect the Wemos D1 R2 to a Wi-Fi network and blink the onboard LED:

#include <ESP8266WiFi.h> // Include the Wi-Fi library for ESP8266

const char* ssid = "Your_SSID";       // Replace with your Wi-Fi network name
const char* password = "Your_Password"; // Replace with your Wi-Fi password
const int ledPin = D4;                // Onboard LED is connected to pin D4

void setup() {
  pinMode(ledPin, OUTPUT);            // Set the LED pin as an output
  Serial.begin(115200);               // Start serial communication at 115200 baud
  Serial.println("Connecting to Wi-Fi...");

  WiFi.begin(ssid, password);         // Start connecting to Wi-Fi
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);                       // Wait for connection
    Serial.print(".");
  }
  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP());     // Print the assigned IP address
}

void loop() {
  digitalWrite(ledPin, HIGH);         // Turn the LED on
  delay(1000);                        // Wait for 1 second
  digitalWrite(ledPin, LOW);          // Turn the LED off
  delay(1000);                        // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Problem: The board is not detected by the Arduino IDE.
    Solution: Ensure the correct USB drivers are installed. Select the correct board and COM port in the Tools menu.

  2. Problem: Wi-Fi connection fails.
    Solution: Double-check the SSID and password. Ensure the Wi-Fi network is within range and supports 2.4 GHz (the ESP8266 does not support 5 GHz).

  3. Problem: GPIO pins are not functioning as expected.
    Solution: Verify the pin configuration in your code. Ensure the connected components are compatible with 3.3V logic levels.

  4. Problem: The board resets unexpectedly.
    Solution: Check the power supply. Insufficient current can cause instability, especially during Wi-Fi operations.

FAQs

  • Can I use 5V sensors with the Wemos D1 R2?
    Yes, but you must use a voltage divider or level shifter to step down the signal to 3.3V.

  • What is the maximum current output of the 3V3 pin?
    The 3V3 pin can supply up to 500mA, depending on the power source.

  • Is the Wemos D1 R2 compatible with Arduino shields?
    No, the pin layout differs from standard Arduino boards, so most shields are not directly compatible.

  • Can I use the Wemos D1 R2 without Wi-Fi?
    Yes, the board can function as a standalone microcontroller without using Wi-Fi features.
