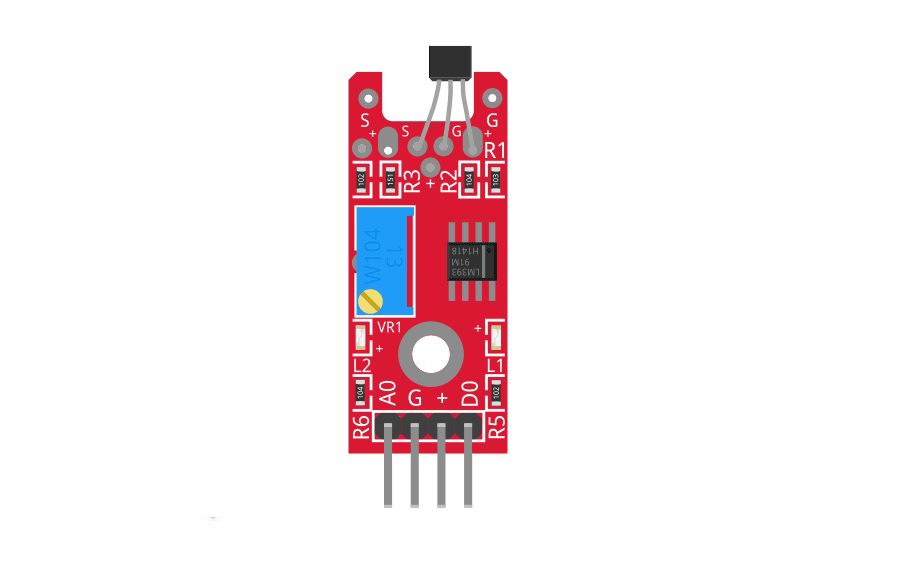

Image of KY-024

Design with KY-024 in Cirkit Designer

Introduction

The KY-024 is a linear Hall effect sensor module designed to detect magnetic fields. It outputs an analog voltage proportional to the strength of the magnetic field, allowing for precise measurement and detection. Additionally, the module includes a digital output that can be triggered when the magnetic field strength exceeds a user-defined threshold. This dual-output functionality makes the KY-024 versatile for a wide range of applications.
